12
CDX-MP30

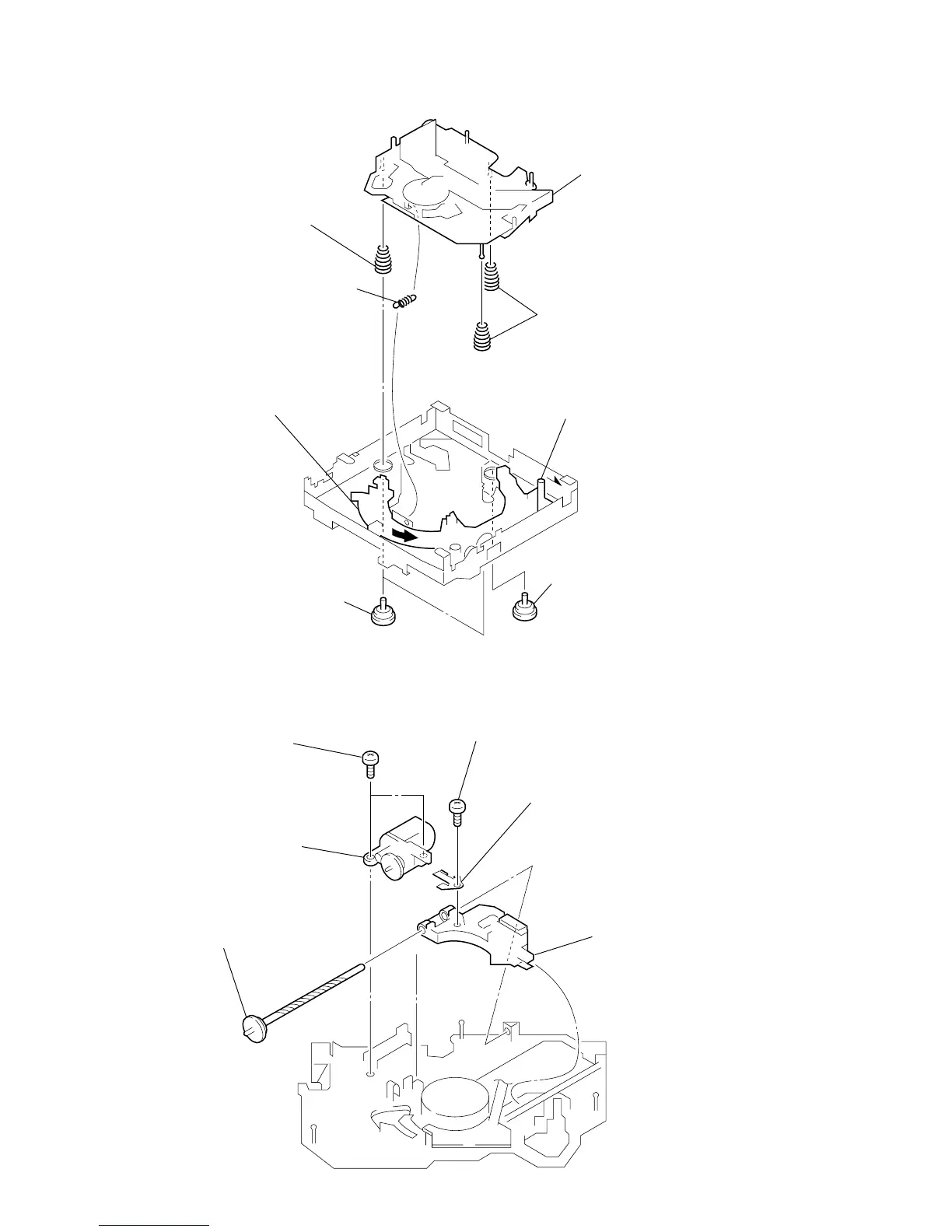

2-10.
Floating Block Assy
2-11.
Sled Motor Assy (M901), Optical Pic
k-up (KSS-720A)
1
tension spring (KF1)
7
compression spring (FL)
8
compression spring (FL)
6
floating block assy
5
turn loading ring in the
direction of the arrow.
4
fit lever (D) in the direction of the arrow.
2
damper (T)
3
damper (T)
1
two screws (
P 2x3)
3
screw (
P 2x3)
2
sled motor assy (M902)
5
optical pick-up (KSS-720A
)
4
spring (feed),plate
6
shaft (feed) assy
11
13
Table of Contents
Default Chapter
1
Specifications
1
Table of Contents
3
1 General
4
Location of Controls (US Model)
4
Location of Controls (AEP and E Model)
4
Connections (US and E Model)
5
Connections (AEP Model)
6
2 Disassembly
7
Cover
7
Panel (1) Assy, Sub
8
CD Mechanism Block (MG-393M-121)
8
MAIN Board
9
Heat Sink
9
Chassis (T) Sub Assy
10
Lever Section
10
SERVO Board
11
Shaft Roller Assy
11
Floating Block Assy
12
Sled Motor Assy (M901), Optical Pick-Up (KSS-720A)
12
3 Diagrams
13
Block Diagram -CD Section
13
Block Diagram -MAIN Section
14
Block Diagram -DISPLAY Section
15
Printed Wiring Boards -CD Section
16
Schematic Diagram -CD Section (1/2)
18
Schematic Diagram -CD Section (2/2)
19
Printed Wiring Board -MAIN Section
20
Schematic Diagram -MAIN Section (1/2)
21
Schematic Diagram -MAIIN Section (2/2)
22
Printed Wiring Board -DISPLAY Section
23
Schematic Diagram -DISPLAY Section
24
IC Block Diagrams
25
IC Pin Descriptions
29
4 Exploded Views
34
Chassis Section
34
Front Panel Section
35
CD Mechanism Section (1) (MG-393M-121)
36
CD Mechanism Section (2) (MG-393M-121)
37
CD Mechanism Section (3) (MG-393M-121)
38
5 Electrical Parts List
