Sony CDX-MP30 Service Manual
4
of 1
of 1 rating
48 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
18
18
CDX-MP30
3-5. Sc

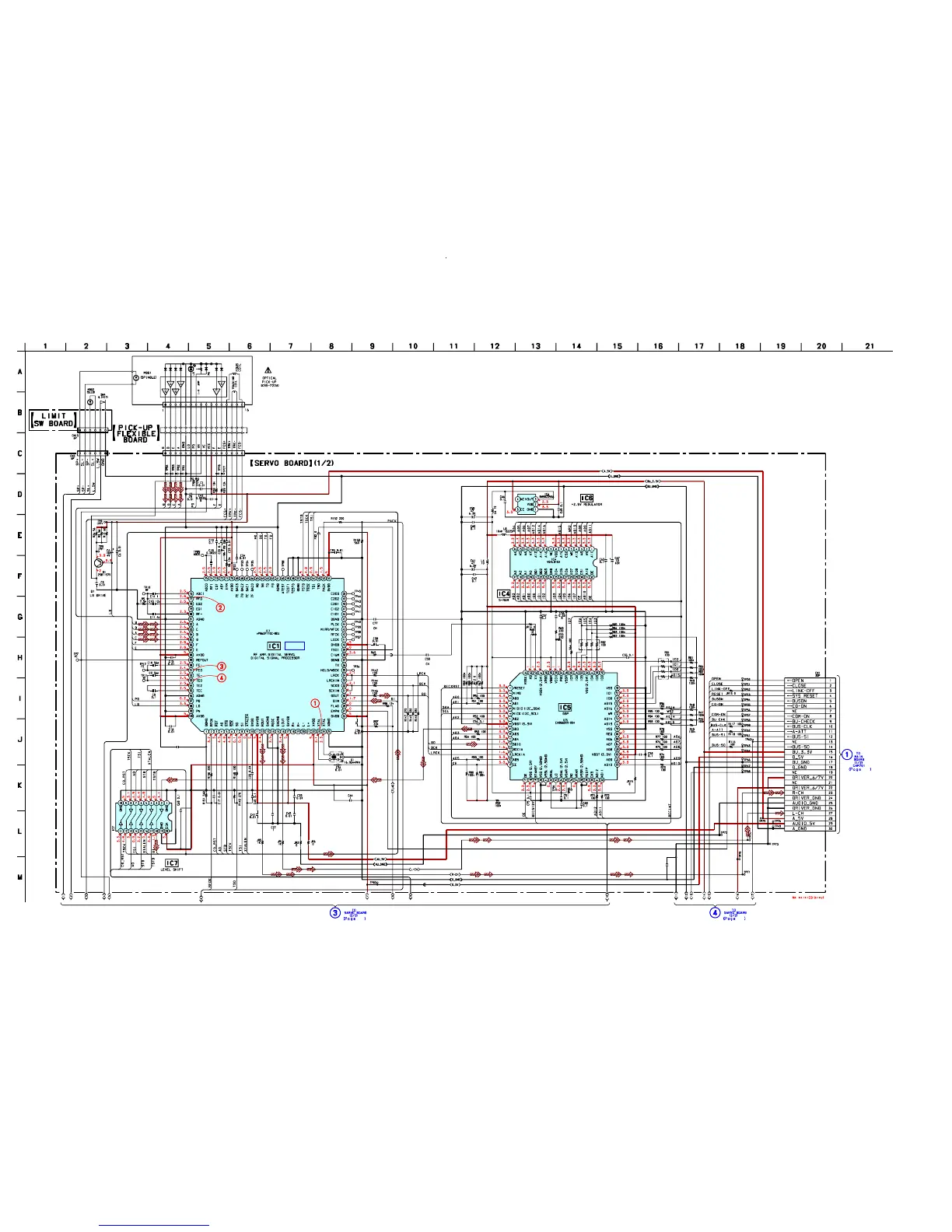

hematic Diagram –CD Section (1/2)–
• Refer to page 15 for
W
aveforms.
• Refer to page 25 for IC Bloc
k Diagrams.
• Refer to page 31 for IC Pin Function Description.
IC B/D
19
19
22
CN2
16P
C78
0.0022
TC74VHCT244AFT
FB5
0.0022
680
FB6
0.0022
C79
0.0022
17
19
Table of Contents
Default Chapter
1
Specifications
1
Table of Contents
3
1 General
4
Location of Controls (US Model)
4
Location of Controls (AEP and E Model)
4
Connections (US and E Model)
5
Connections (AEP Model)
6
2 Disassembly
7
Cover
7
Panel (1) Assy, Sub
8
CD Mechanism Block (MG-393M-121)
8
MAIN Board
9
Heat Sink
9
Chassis (T) Sub Assy
10
Lever Section
10
SERVO Board
11
Shaft Roller Assy
11
Floating Block Assy
12
Sled Motor Assy (M901), Optical Pick-Up (KSS-720A)
12
3 Diagrams
13
Block Diagram -CD Section
13
Block Diagram -MAIN Section
14
Block Diagram -DISPLAY Section
15
Printed Wiring Boards -CD Section
16
Schematic Diagram -CD Section (1/2)
18
Schematic Diagram -CD Section (2/2)
19
Printed Wiring Board -MAIN Section
20
Schematic Diagram -MAIN Section (1/2)
21
Schematic Diagram -MAIIN Section (2/2)
22
Printed Wiring Board -DISPLAY Section
23
Schematic Diagram -DISPLAY Section
24
IC Block Diagrams
25
IC Pin Descriptions
29
4 Exploded Views
34
Chassis Section
34
Front Panel Section
35
CD Mechanism Section (1) (MG-393M-121)
36
CD Mechanism Section (2) (MG-393M-121)
37
CD Mechanism Section (3) (MG-393M-121)
38
5 Electrical Parts List
39
Other manuals for Sony CDX-MP30
Operating Instruction
64 pages
Installation/Connections
5 pages
Operating Instructions
28 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Sony CDX-MP30 and is the answer not in the manual?
Ask a question
Sony CDX-MP30 Specifications
General
