SECTION 4
EXPLODED VIEWS
34
CDX-MP30
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

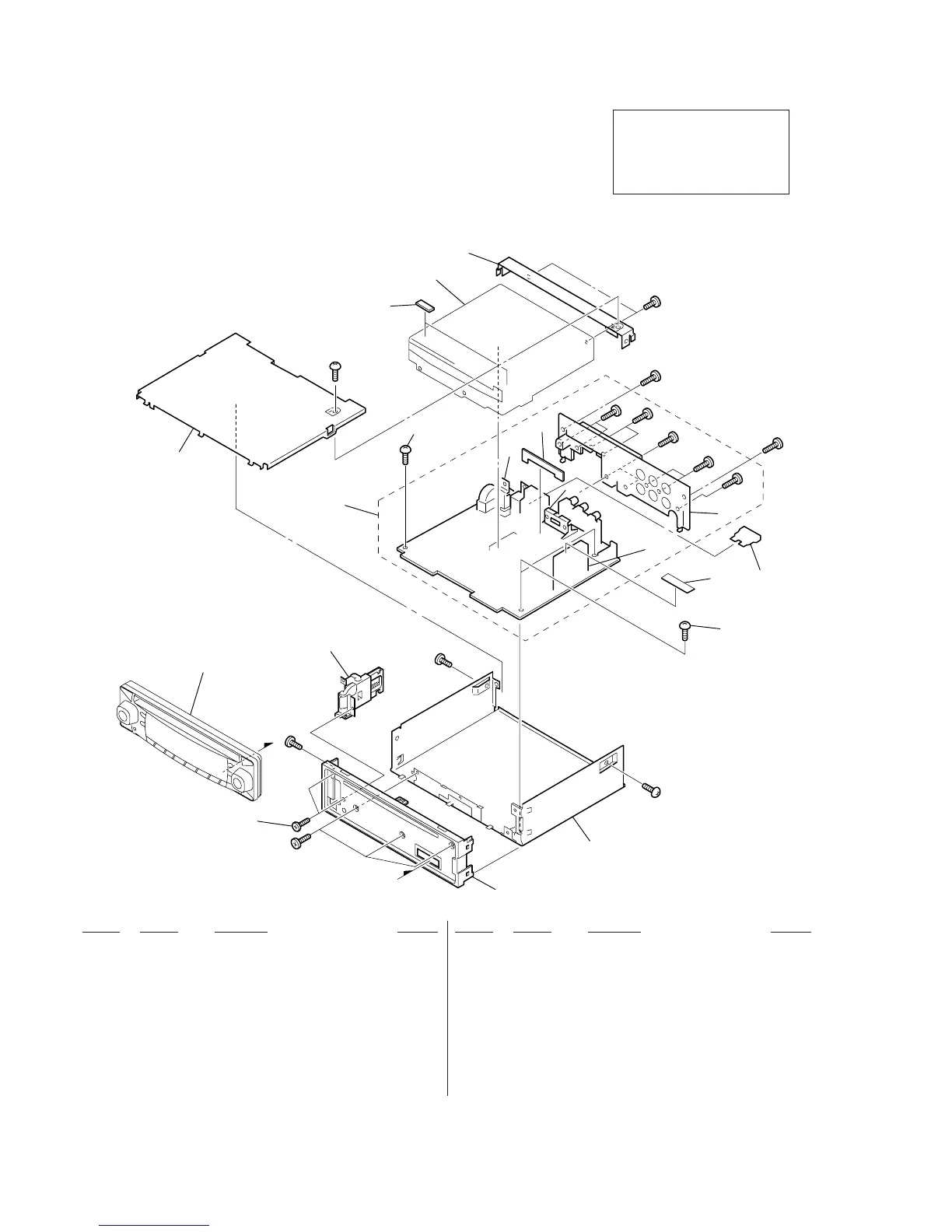

4-1. Chassis Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
5
6
6
7
13
14
3
11
12
10
9
8
TU601
#1
#1
#1
#1
#1
#1
#2
#2
#2
#2
#2
#2
#3
F900
MG-393M-121
4
front panel section
a
a
* 1 3-224-612-02 CHASSIS (CD)
2 3-224-309-22 COVER
3 3-231-472-01 SCREW (+B 2X4)
* 4 3-024-285-01 CUSHION (RUBBER)
* 5 3-041-173-11 BRACKET (CD)
6 3-922-535-11 SCREW (+BTT)
7 A-3274-236-A MAIN BOARD, COMPLETE (US)
7 A-3274-243-A MAIN BOARD, COMPLETE (AEP, E)
8 3-236-932-01 HEAT SINK (6PIN)
9 3-019-565-01 BRACKET (IC)
10 1-684-815-11 SPEAKER BOARD
11 3-041-261-11 BRACKET (TR)
* 12 3-048-259-01 SHEET (E)
13 X-3380-594-1 LOCK ASSY (S)
14 X-3381-269-1 PANEL (1) ASSY, SUB
F900 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TU601 A-3220-812-A TUNER UNIT (TUX-020)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-685-793-09 SCREW +PTT 2.6X8 (S)
#3 7-685-795-09 SCREW +PTT 2.6X12 (S)
To Next Page
