37
CDX-MP30

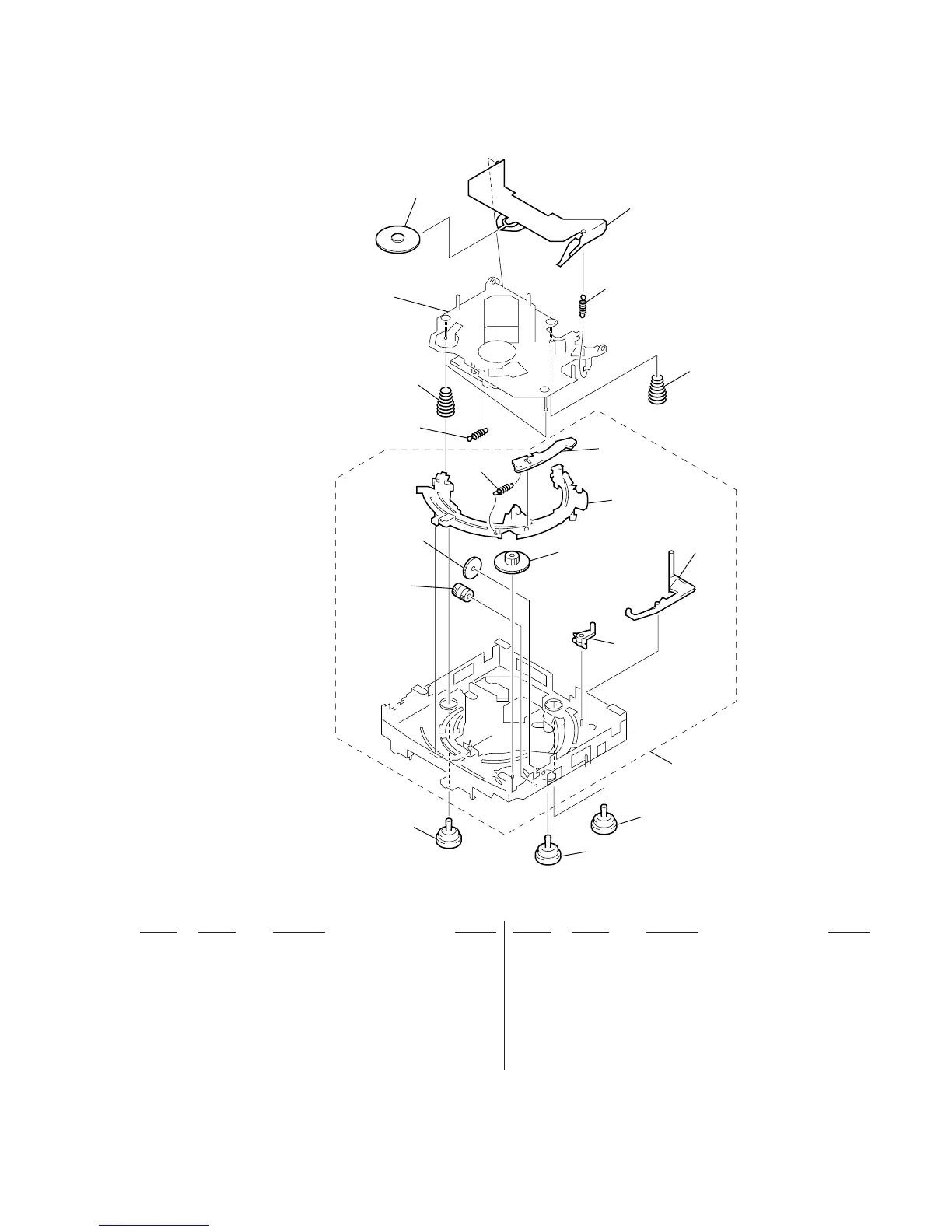

4-4. CD Mechanism Section (2)
(MG-393M-121)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
154
151
156
CD mechanism section (3)
157
158
160
162
161
159
152
152
152
153
163
157
164
155
165
151 3-040-025-01 ARM, CHUCKING
152 3-040-031-01 DAMPER (T)
153 3-040-056-01 LEVER (D)
154 3-040-024-01 RETAINER (DISC)
155 3-040-054-01 WHEEL (LW), WORM
156 3-040-026-01 SPRING (CH), TENSION
157 3-040-032-01 SPRING (FL), COMPRESSION
158 3-040-033-01 SPRING (KF1), TENSION
159 A-3307-422-A CHASSIS (M) COMPLETE ASSY
160 3-040-059-01 SPRING (TR), TENSION
161 3-040-057-01 LEVER (LOCK)
162 3-040-058-01 GEAR (MDL)
163 3-040-052-01 WHEEL (U), WORM
164 3-040-051-02 LEVER (TR)
165 3-040-053-01 RING, LOADING
To Next Page
