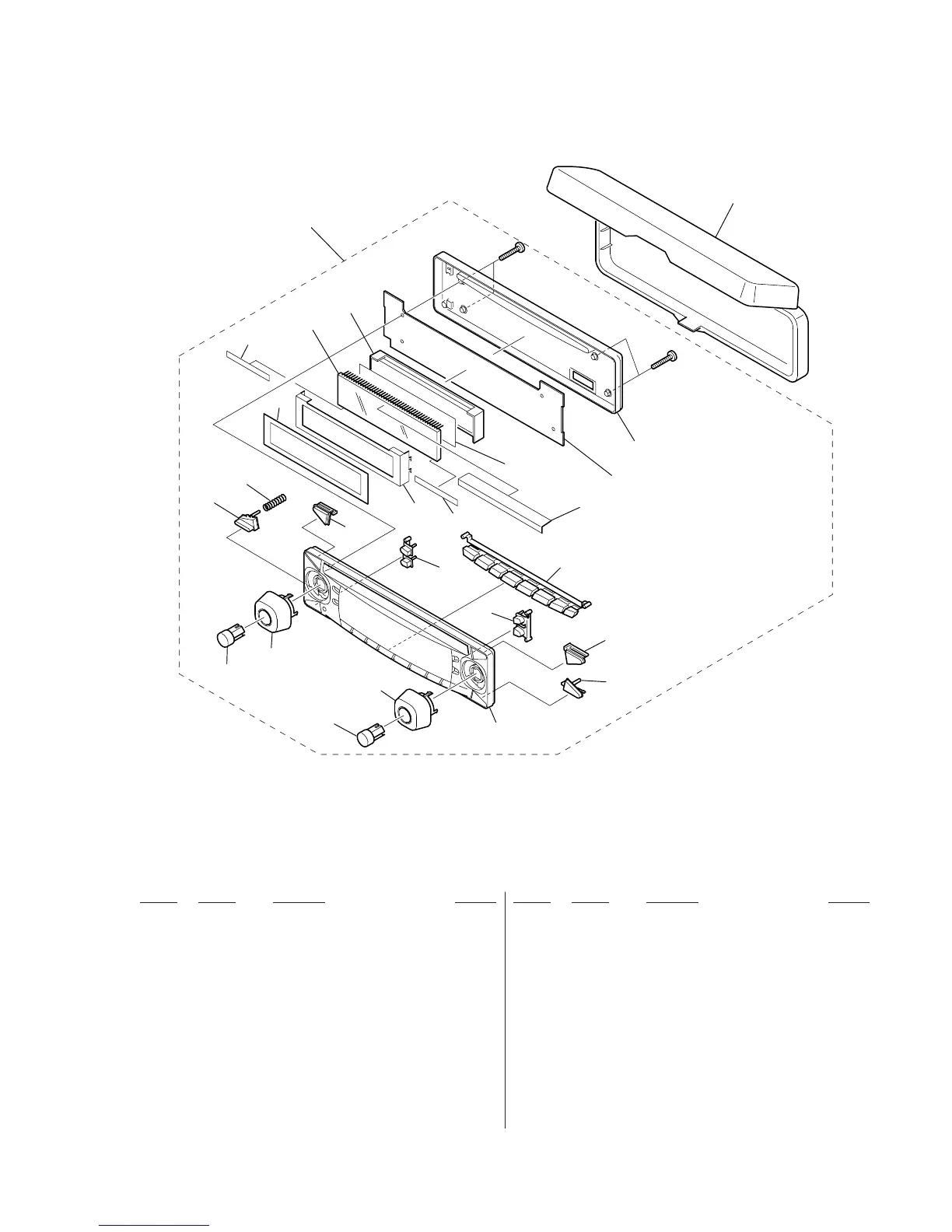

4-2. Front Panel Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
56
57
58
59
60
61
62
63
52
53
54
55
64
65
66
67
68
69
70
not supplied
not supplied
(DISPLAY board)
LCD501
71
71
51
#4
#4
51 3-236-926-01 CUSHION (LCD)
52 3-236-909-01 BUTTON (OFF)
53 3-236-912-01 BUTTON (EJECT)
54 3-236-908-11 BUTTON (MBP)
55 3-236-910-01 BUTTON (1-6) (US)
55 3-236-910-11 BUTTON (1-6) (AEP, E)
56 3-236-905-01 BUTTON (D-BASS)
57 X-3381-356-2 RING (SEEK) ASSY
58 3-236-904-01 BUTTON (SOURCE)
59 X-3381-355-2 RING (VOL) ASSY
60 3-236-911-01 BUTTON (RELEASE)
61 3-240-348-01 SPRING (RELEASE)
62 3-236-907-01 BUTTON (MODE)
63 3-236-906-01 BUTTON (SEL)
64 3-236-921-01 PLATE (LCD), GROUND
65 3-229-751-01 SHEET (LCD.UP)
66 3-236-920-01 SHEET (LCD), DIFFUSION
67 X-3381-357-1 HOLDER (LCD) ASSY
67 X-3381-357-1 HOLDER (LCD) ASSY (AEP, E)
68 3-236-902-01 PANEL, FRONT BACK
69 X-3382-160-1 CASE ASSY
* 70 A-3290-928-A PANEL COMPLETE ASSY, FRONT (US)
* 70 A-3290-933-A PANEL COMPLETE ASSY, FRONT (AEP, E)
71 3-227-293-11 SHEET (LCD)
LCD501 1-804-693-11 DISPLAY PANEL, LIQUID CRYSTAL
#4 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
