Sony CDX-MP30 Service Manual

2323
CDX-MP30
IC501
IC552
20
1
A
B
C
D
E
F
G
H
I
234567891011 12 13 14
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D501 G-4
D502 G-5
D503 B-13
D504 G-4
D505 G-4
D561 B-2
D562 B-3
D563 B-4
D564 C-2
D565 C-2
Ref. No. Location Ref. No. Location
D566 D-2
D567 B-2
D568 C-2
D569 C-3
D570 B-2
D571 C-3
D572 C-3
D573 B-7
D574 B-6
D575 B-5
D576 B-8
D577 B-9
D578 B-10
D579 B-11
D580 B-11
D581 C-11
D582 C-13
D583 C-13
D584 D-13
D585 C-13
D586 C-12
D587 C-11
D588 B-12
D589 B-13
IC501 G-7
IC552 B-12
LED549 G-4
LED550 F-11

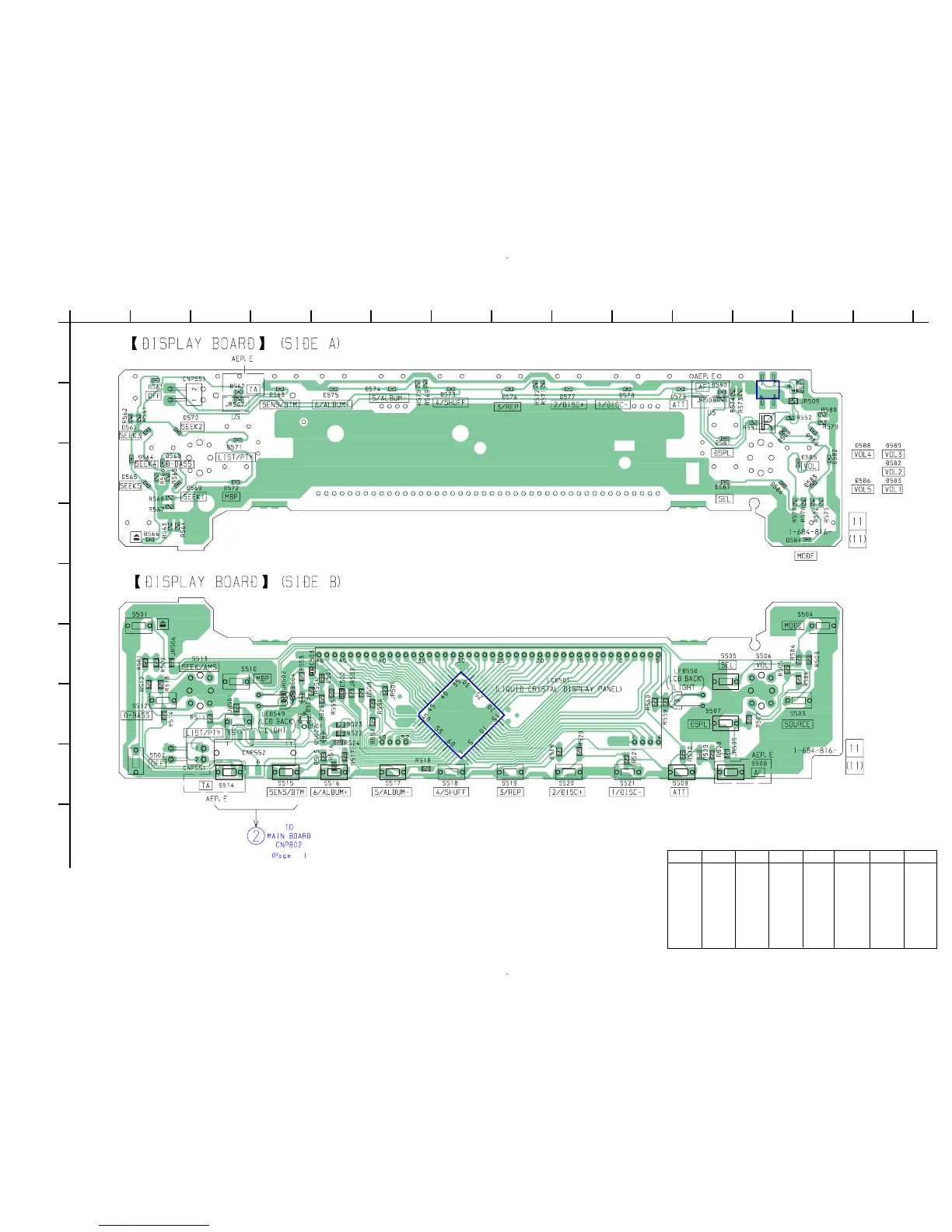

3-10. Printed Wiring Board –DISPLAY Section– • Refer to page 15 for Circuit Boards Location.
