38
CDX-MP30

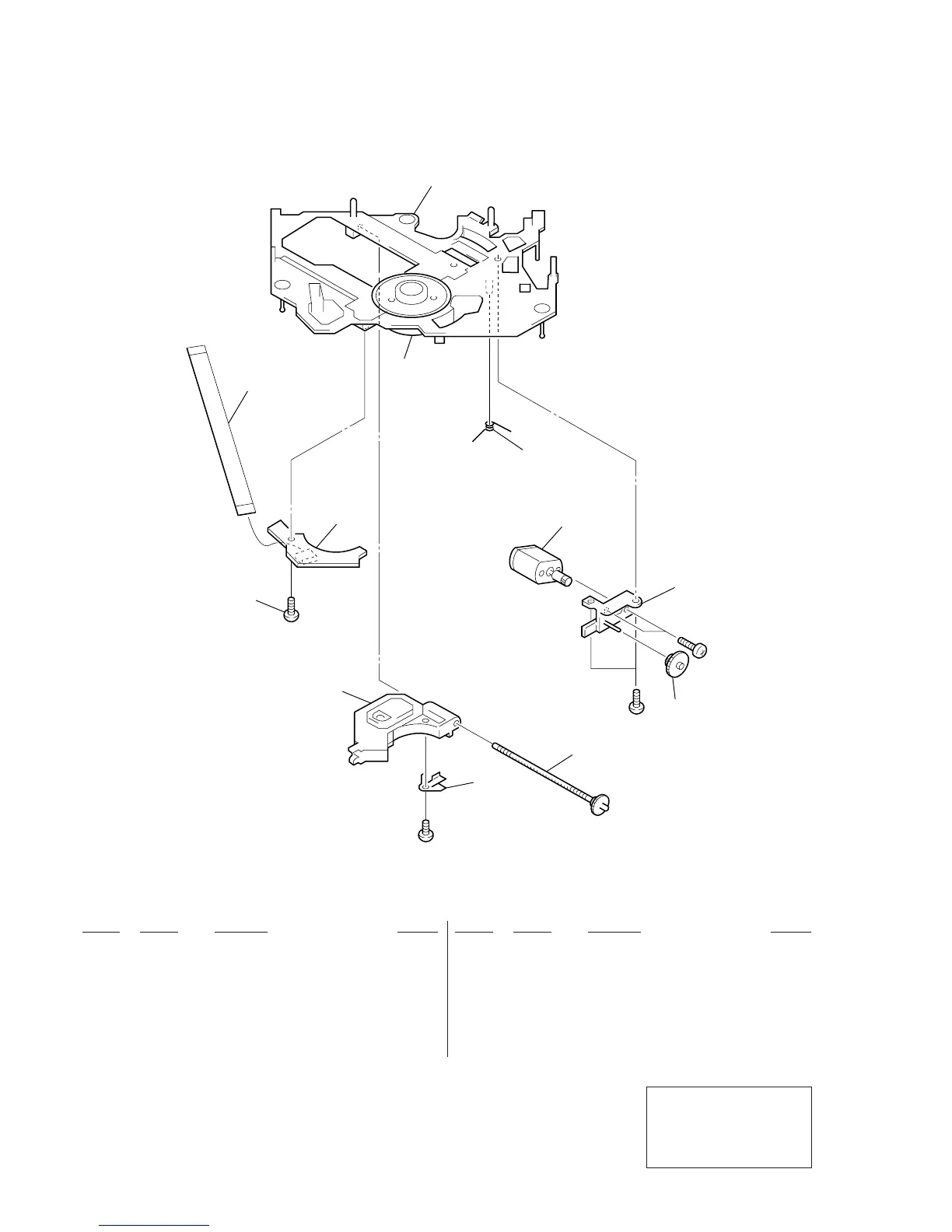

4-5. CD Mechanism Section (3)
(MG-393M-121)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
M902
M901
#6
#9
#8
206
209
210
205
208
204
203
202
207
201
201 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
202 3-040-029-01 SPRING (SL), TORSION
203 3-040-045-01 BASE (DRIVING)
204 3-040-194-01 GEAR (MIDWAY)
205 A-3301-983-A SHAFT (FEED) ASSY
206 3-040-030-01 SPRING (FEED), PLATE
207 1-823-951-11 FLEXIBLE FLAT CABLE 6P
208 A-3274-254-A LIMIT SW BOARD, COMPLETE
209 3-909-607-01 SCREW
0 210 8-820-103-03 OPTICAL PICK-UP KSS-720A
M902 A-3301-985-A MOTOR ASSY, SLED
#6 7-627-553-37 PRECISION SCREW +P 2X3 TYPE 3
#8 7-627-850-28 SCREW,PRECISION +P 1.4X3
#9 7-627-000-00 SCREW,PRECISION +P1.7X2.2TYPE3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
To Next Page
