Sony CFD-C1000 - Section 2 Disassembly; 2-1. Top Assy, Cabinet, Changer Assy, CD; 2-2. Rear Assy, Cabinet

– 6 –

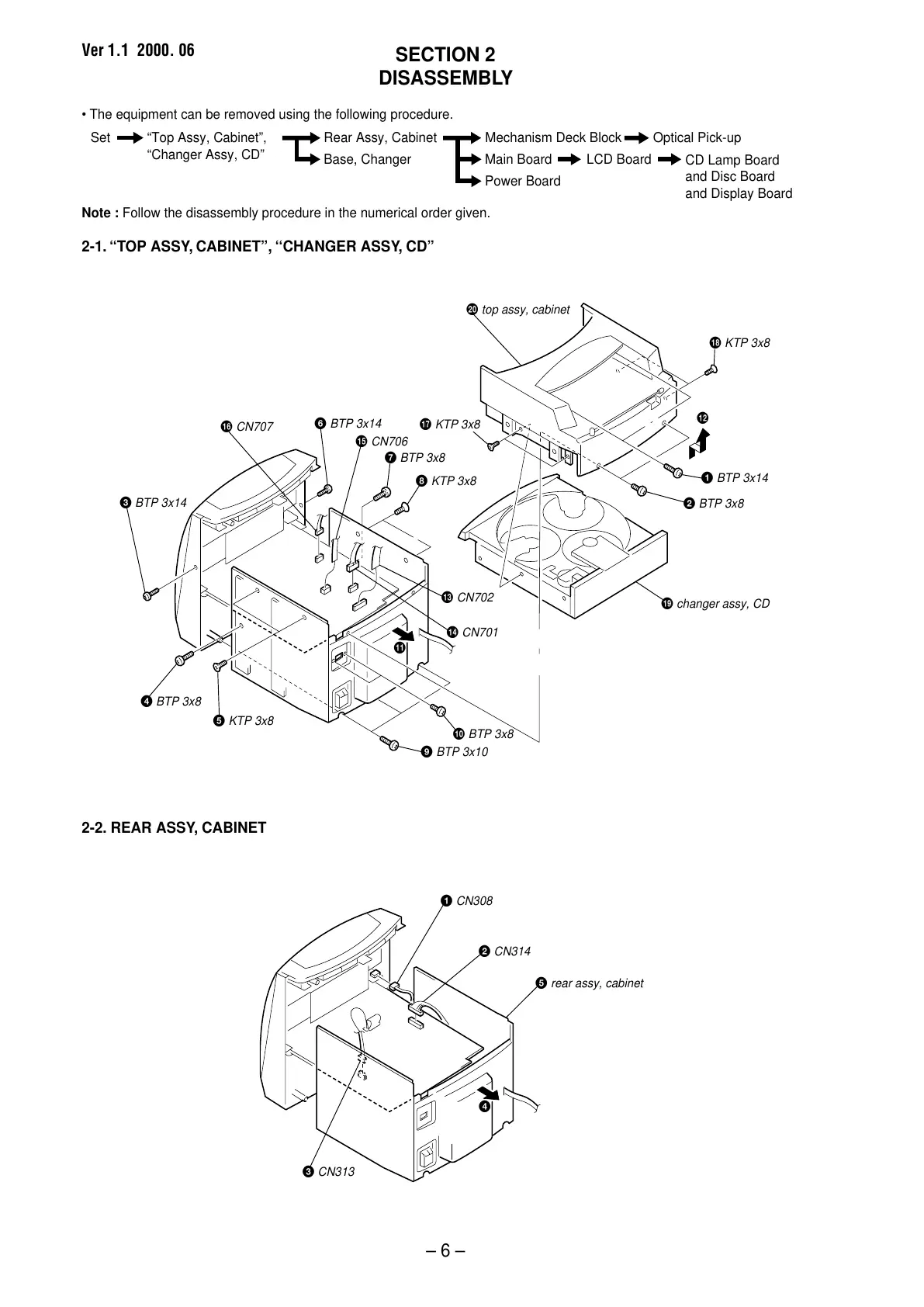

SECTION 2
DISASSEMBLY
• The equipment can be removed using the following procedure.
Note : Follow the disassembly procedure in the numerical order given.
2-1. ‘‘TOP ASSY, CABINET’’, ‘‘CHANGER ASSY, CD’’
Set “Top Assy, Cabinet”,
“Changer Assy, CD”
Mechanism Deck Block Optical Pick-up
CD Lamp Board
and Disc Board
and Dis
p
la
y
Board
Rear Assy, Cabinet
Base, Changer
Main Board LCD Board
Power Board
6 BTP 3x14
1 BTP 3x14
3 BTP 3x14
4 BTP 3x8
9 BTP 3x10
0 BTP 3x8
qa
qs
7 BTP 3x8
5 KTP 3x8
8 KTP 3x8
qf CN701
qd CN702
qg CN706
qh CN707
qj KTP 3x8
ql changer assy, C
D
w; top assy, cabinet
qk KTP 3x
8
2 BTP 3x8
4
1 CN308
2 CN314
5 rear assy, cabine
t
3 CN313
2-2. REAR ASSY, CABINET
Ver 1.1 2000. 06
