CFD-E75L

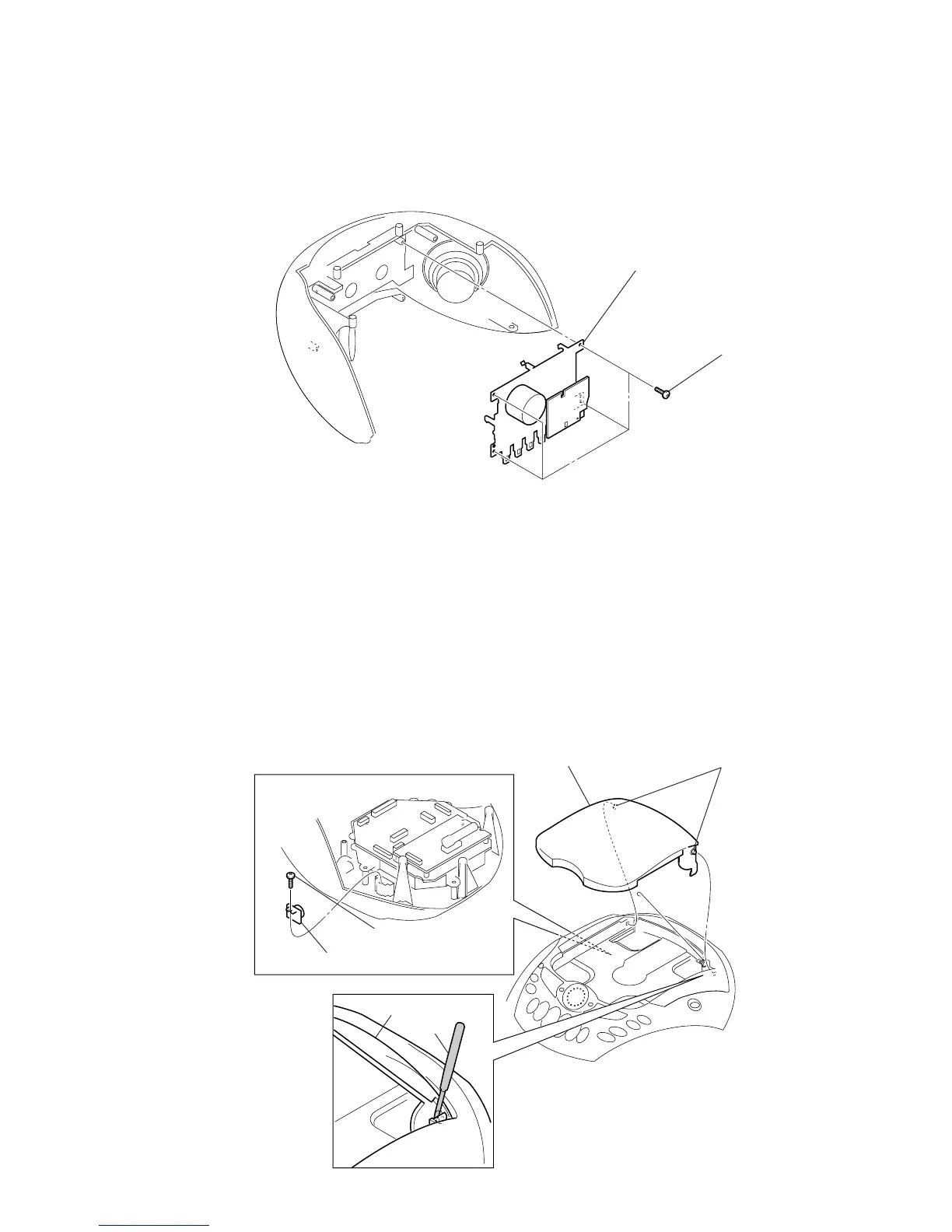

3-10. CD LID
1
screw
(BTP2.6
×
8)
2
damper
driver
CD lid
4
CD lid
3
boss
3-9. TAPE MECHANISM DECK
(MF-V5-117)
1
four screws
(BVTP3
×
10)
2
tape mechanism deck
(MF-V5-117)
