Sony CFD-E75L - Cabinet Upper Section

41
CFD-E75L

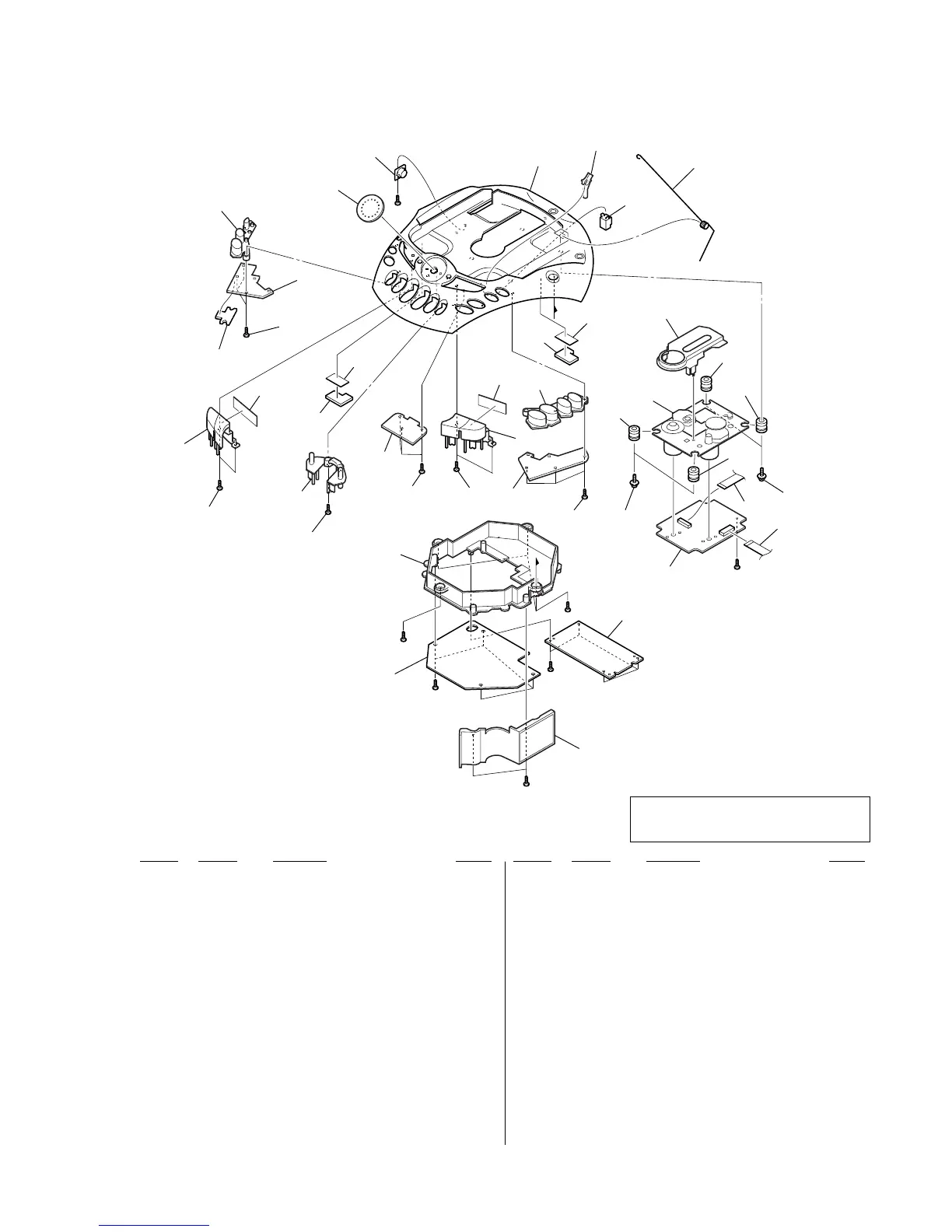

7-2. CABINET UPPER SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 51 A-3062-464-A MAIN BOARD, COMPLETE
52 3-229-981-01 COVER PLATE
* 53 1-681-672-13 JOG BOARD
54 3-229-997-01 BUTTON (MENU)
55 3-229-998-01 BUTTON (PRESET)
* 56 1-681-673-13 KEY POWER BOARD
57 X-3380-864-1 BUTTON POWER ASSY
58 3-229-972-01 DIAL JOG
59 3-922-112-31 DAMPER
60 3-229-994-31 CABINET UPPER (WHITE)...(WHITE)
60 3-229-994-41 CABINET UPPER (BLUE)...(BLUE)
60 3-229-994-51 CABINET UPPER (ORANGE)...(ORANGE)
61 3-232-770-01 STOPPER (CD)
62 3-229-968-01 CD SPRING
64 3-230-000-01 BUTTON (VOLUME)
* 65 1-681-674-13 KEY VOLUME BOARD
66 3-038-948-01 RUBBER, VIBRATION PROOF
67 3-923-736-01 COVER, CD
68 3-038-948-11 RUBBER, VIBRATION PROOF
70 3-921-725-11 SCREW (2.6X10), +PWH
71 1-792-684-11 WIRE (FLAT TYPE) (16 CORE)
* 72 1-757-968-11 FFC CABLE 14P
* 73 A-3347-089-A CD BOARD, COMPLETE
74 4-951-620-11 SCREW (2.6X10), +BVTP
* 75 A-3062-465-A TUNER BOARD, COMPLETE
* 76 1-681-859-13 OPR/BATT LED BOARD
78 3-229-980-01 BUTTON CD
79 3-233-472-01 COVER, SPEAKER
80 3-233-666-01 CUSHION
81 1-682-105-11 BRACKET PWB (A)
82 1-682-106-11 BRACKET PWB (B)
S901 1-692-960-11 SWITCH, PUSH (1 KEY) (CD LID OPEN/CLOSE)
#1
#1
#1
#1
#1
#5
not
supplied
#1
51
52
74
74
78
64
80
82
65
74
74
74
76
53
54
81
56
55
57
58
59
60
61
62
S901
OPTICAL
PICK-UP
SECTION
67
68
66
66
71
70
72
68
70
74
75
79
not
supplied
73
80
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
