Sony CFD-E75L - 7-3. Cabinet Front Section 105 104; Cabinet Front Section

42
CFD-E75L

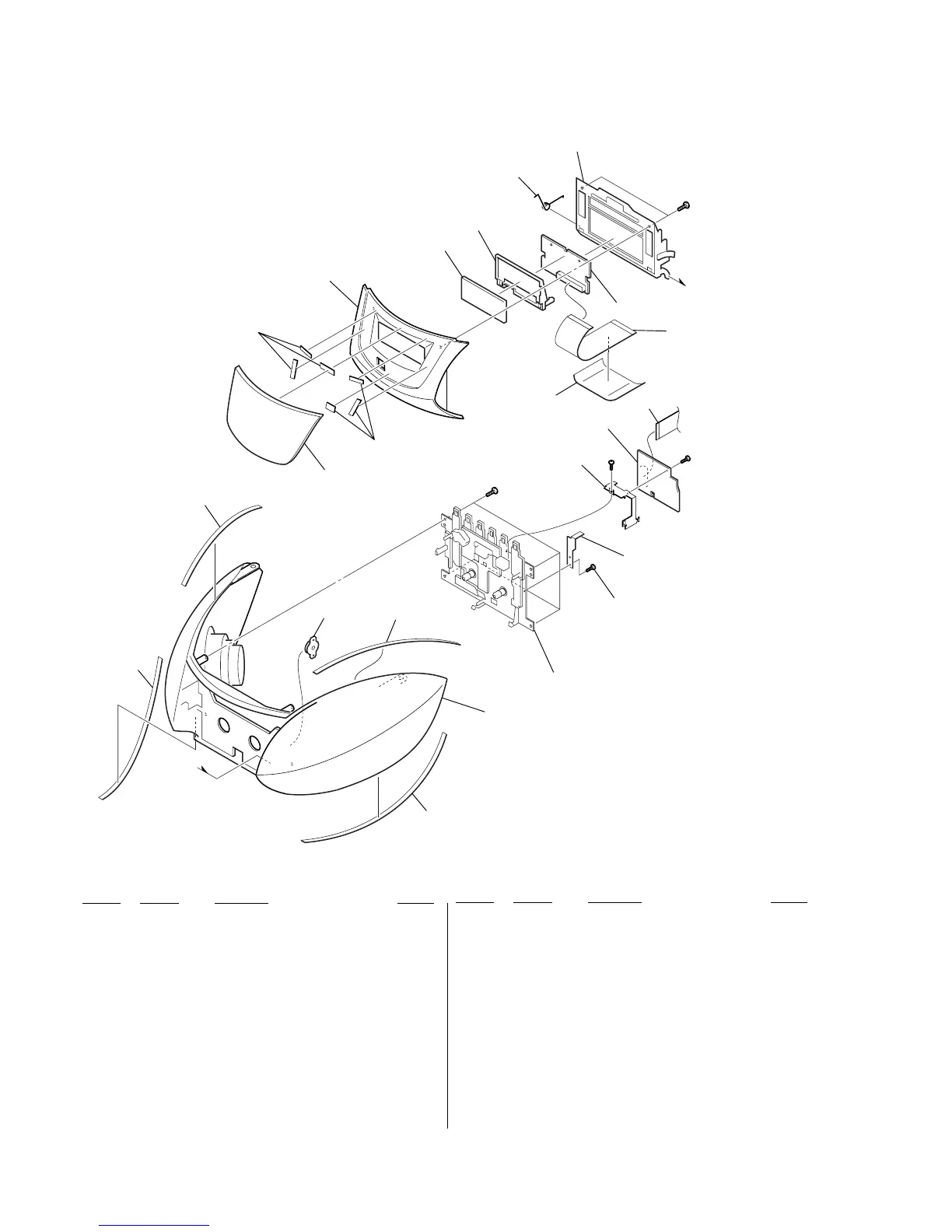

7-3. CABINET FRONT SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-757-967-11 FFC CABLE 27P
102 3-229-989-01 HOLDER LCD
* 103 1-681-675-13 LCD BOARD
104 3-229-993-01 SPRING CASSETTE
105 3-229-990-31 HOLDER CASSETTE (WHITE)...(WHITE)
105 3-229-990-41 HOLDER CASSETTE (BLUE)...(BLUE)
105 3-229-990-51 HOLDER CASSETTE (ORANGE)...(ORANGE)
106 3-229-992-01 WINDOW CASSETTE (for ORANGE)
106 3-229-992-11 WINDOW CASSETTE (for WHITE, BLUE)
107 3-230-319-01 TAPE (CST WINDOW), DOUBLE-FACE
108 3-229-991-31 LID CASSETTE (WHITE)...(WHITE)
108 3-229-991-41 LID CASSETTE (BLUE)...(BLUE)
108 3-229-991-51 LID CASSETTE (ORANGE)...(ORANGE)
109 3-343-248-01 DAMPER (P), SMALL
110 3-222-726-01 CHASSIS (TC)
* 111 1-757-969-11 FFC CABLE 13P
* 112 A-3347-189-A TC BOARD, COMPLETE
113 3-231-847-01 LEVER (REC)
114 4-951-620-01 SCREW (2.6X8), +BVTP
115 X-3380-591-1 CABINET FRONT SUB ASSY
(includes speaker L/R) (for WHITE, BLUE)
115 X-3380-691-1 CABINET FRONT SUB ASSY
(includes speaker L/R) (for ORANGE)
116 3-233-633-01 SHEET, PE FOAM
117 3-232-615-01 SHIELD PAPER
LCD801 1-804-401-11 DISPLAY PANEL, LIQUID CRYSTAL
101
117
103
115
116
116
102
104
106
105
TAPE DECK SECTION
(MF-V5-117)
#
3
#6
#5
#5
LCD801
107
107
108
109
114
113
110
112
111
116
116
