44
CFD-E75L

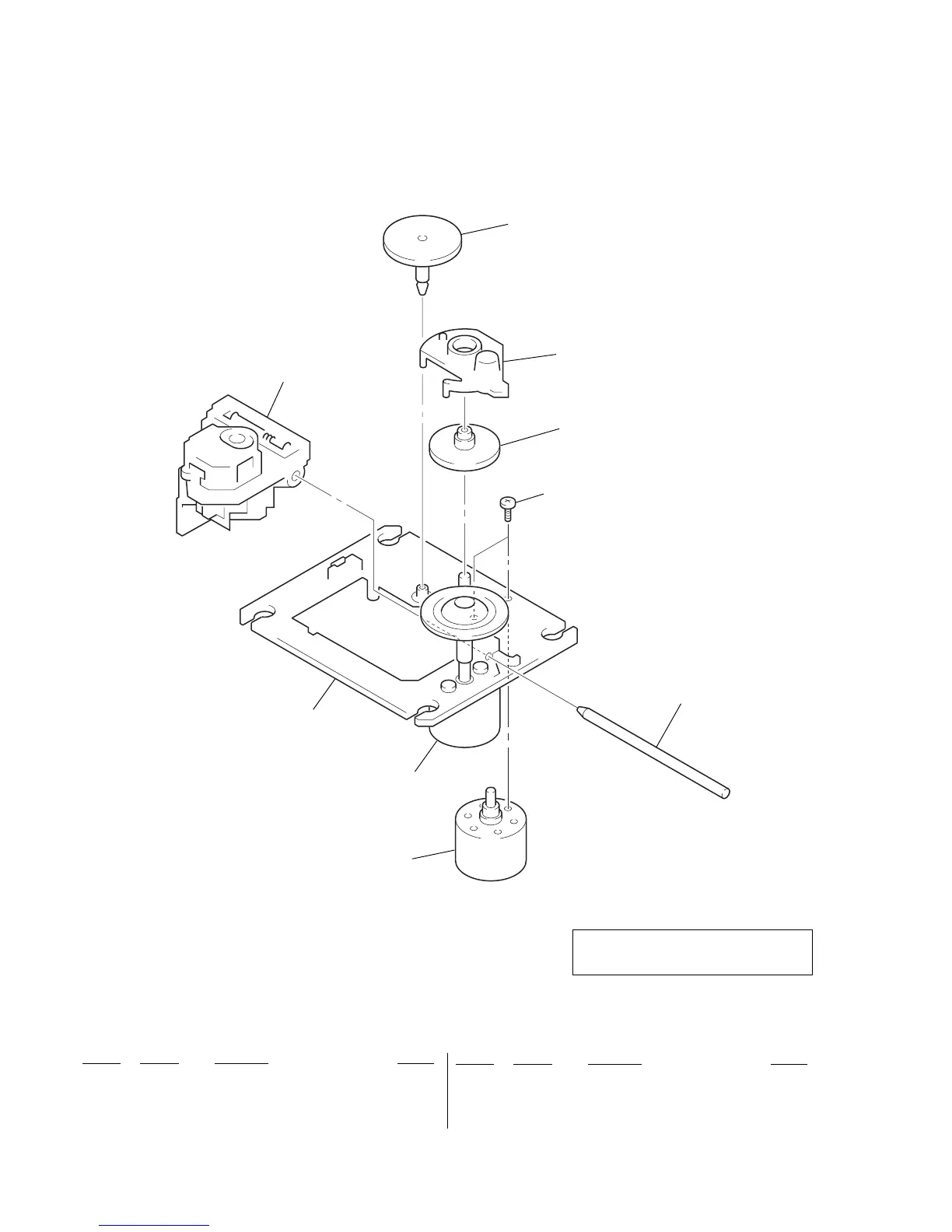

7-5. OPTICAL PICK-UP SECTION
(KSM-213CDP)
not supplied
not supplied
M702
M701
503
501
502
504
505
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
0 501 8-848-483-05 PICK-UP, OPTICAL KSS-213C/Q-RP
502 3-713-786-51 SCREW +P 2X3
503 2-626-908-01 SHAFT, SLED
504 2-627-003-01 GEAR (B) (RP)
505 X-2646-381-1 CHASSIS ASSY (MB), MOTOR (SPINDLE)
(including M701)
M702 X-2625-769-1 GEAR ASSY (MB), MOTOR (SLED)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
