Sony CFD-G55 - Printed Wiring Board - MAIN Section

2525
CFD-G55

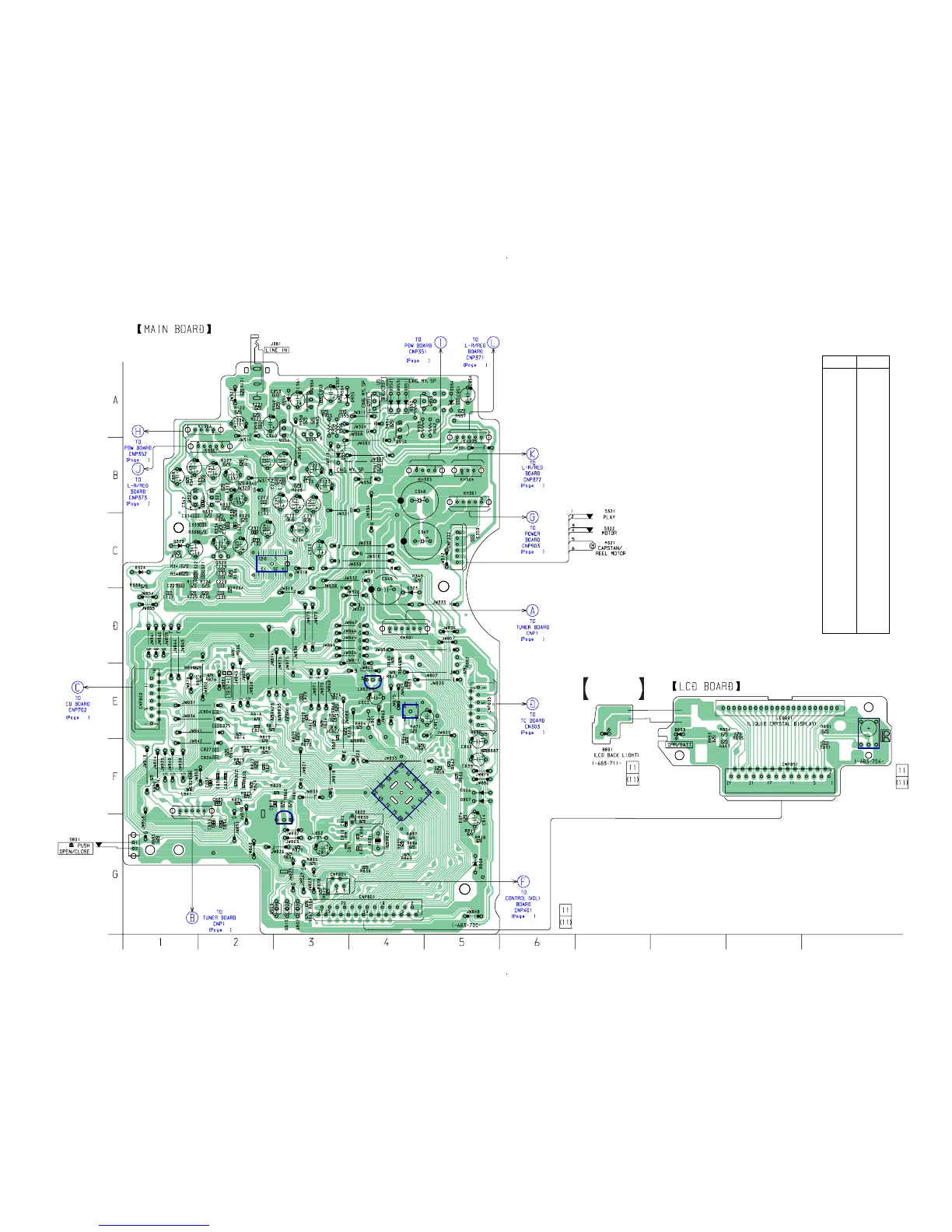

5-9. Printed Wiring Board – MAIN Section –
• See page 17 for Circuit Boards Location.
IC321
IC802
IC803
IC805
IC801
IC891
7
89 10
28
28
22
20
30
24
20
32
28
28
28
BACK LIGHT
BOARD
Ref. No. Location
D320 C-2
D323 D-4
D324 C-1
D806 F-5
D807 F-5
D808 G-5
D951 A-4
D952 A-4
D953 A-4
D954 A-5
D955 A-3
D956 A-3
D957
IC321 C-3
IC801 F-4
IC802 E-4
IC803 E-4
IC805 F-3
Q321 B-2
Q322 B-2
Q323 C-2
Q802 G-3
Q809 G-3
Q810 G-3
Q951 A-4
Q952 A-4
Q953 A-4
Q954 A-3
Q955 A-3
Q956 A-3
• Semiconductor
Location
