Sony CFD-G55 - POWER, TRANS Board; TUNER Board, Duct (Upper, Lower)

9
CFD-G55

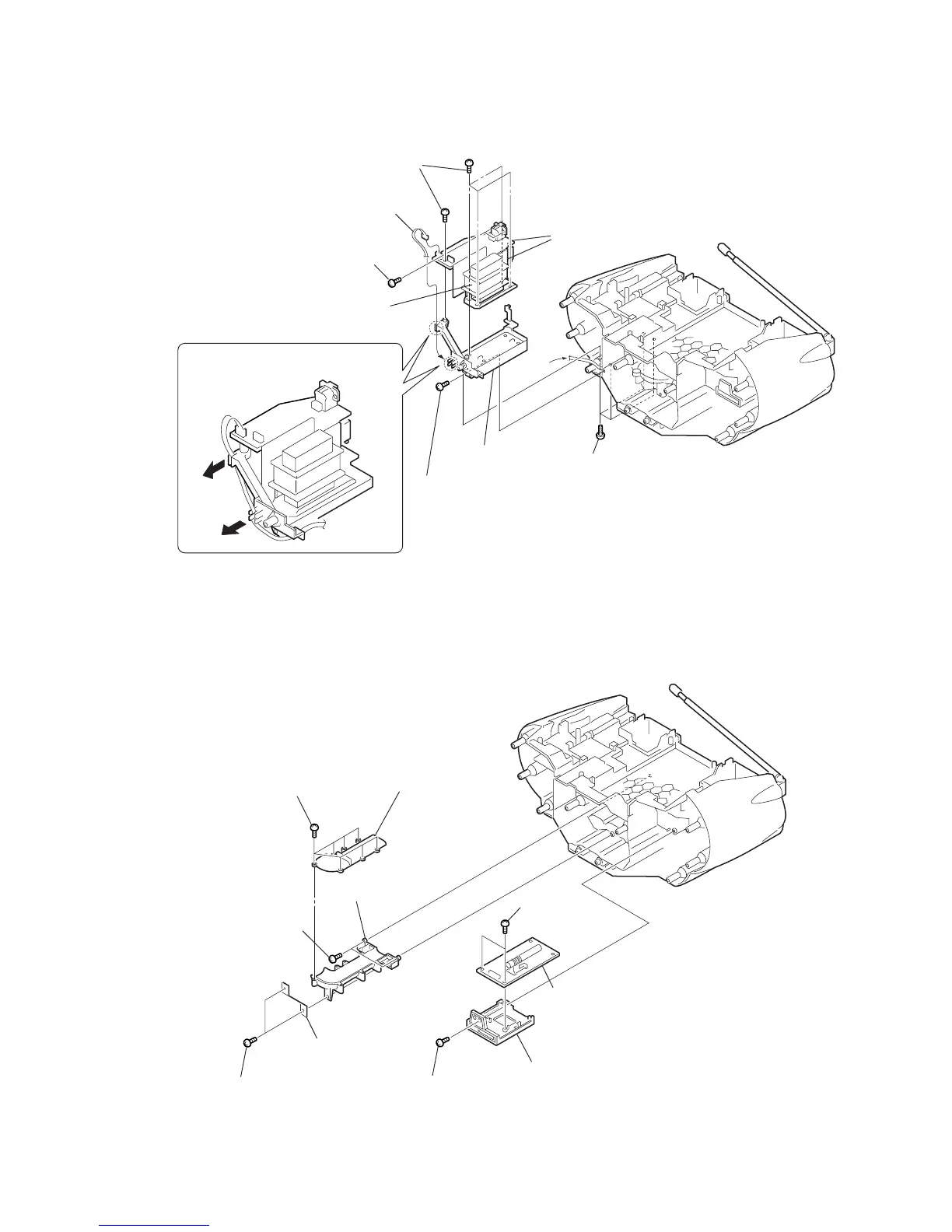

3-8. POWER, TRANS Board
3-9. TUNER Board, Duct (Upper, Lower)
5 four screws
+BVTP 3 × 10
3 screw
+BVTP 3 × 10
2 Remove harnesses in the direction
of the arrow.
7 trans chassis
4 two screws
+BVTP 3 × 10
power transformer
(T901)
1 CNP902
(from BATT board KH951)
6 five screws
+BVTP 3 × 10
8 POWER board,
TRANS board
2 two screws
+BVTP 3
× 10
7 two screws
+BVTP 3
× 10
0 upper duct
9 lower duct
1 screw
+BVTP 3 × 10
4 TUNER board
8 seven screws
+BVTP 2.6
× 8
6 woofer bracket
3 chassis (TU)
5 screw
+BVTP 3 × 10
