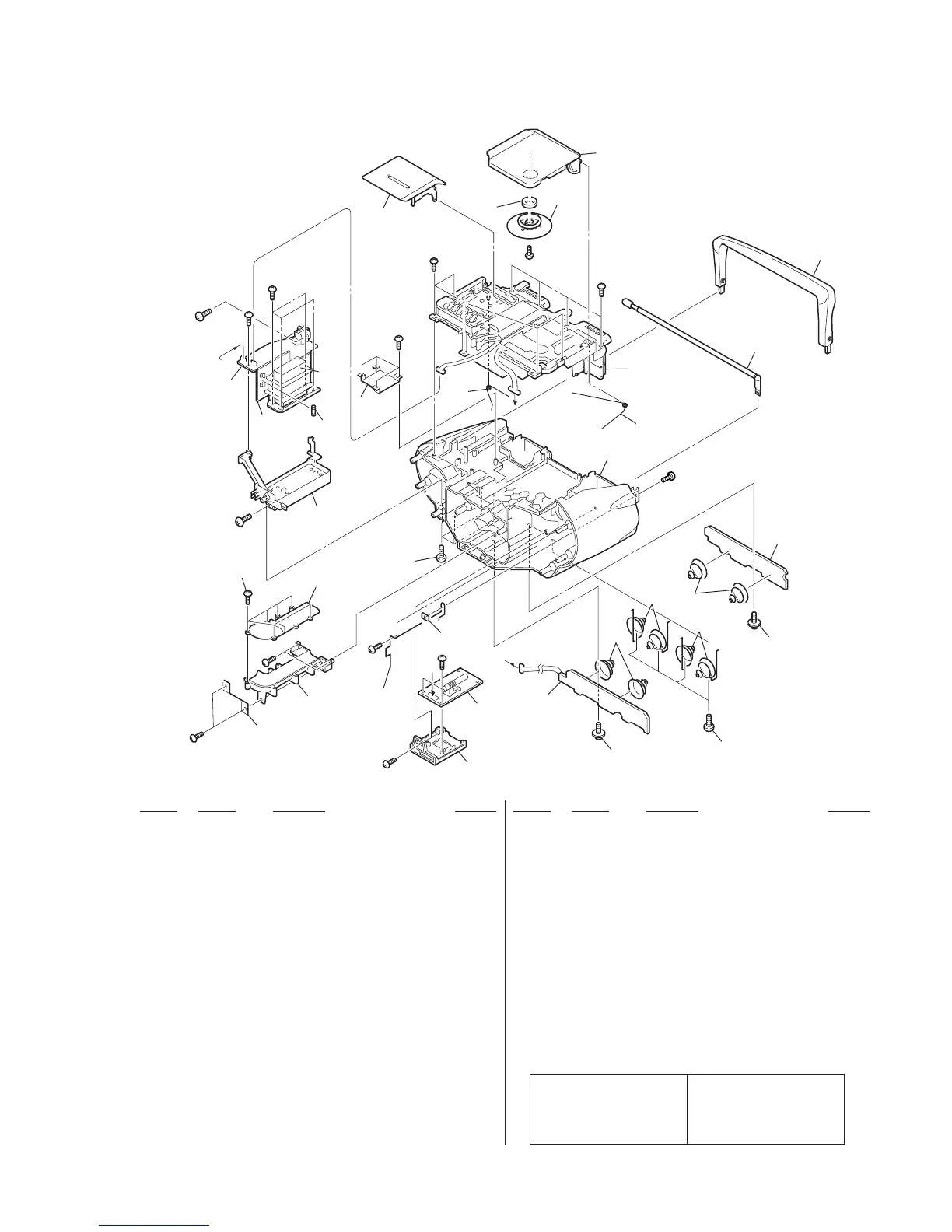

Sony CFD-G55 - CABINET (REAR) SECTION EXPLODED VIEW

39
CFD-G55
6-2. Cabinet (Rear) Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#3
#6
#3
#3
#3
F902
T901
#3
#3
#3
#3
#3
#3
#3
#3
#3
64
62
61
63
59
68
69
70
56
55
60
51
71
71
72
72
#3
67
58
52
b
b
53
54
74
57
65
65
#5
ANT1
not
supplied
not
supplied
not
supplied
a
a
cabinet (upper)
section
51 3-238-228-01 DUCT (UPPER)
52 3-238-229-01 DUCT (LOWER)
53 4-951-620-01 SCREW (2.6X8), +BVTP
54 3-238-230-01 CHASSIS (TRANS)
* 55 1-683-701-11 POWER BOARD
56 3-238-934-01 SPRING (CASSETTE)
57 X-3381-824-1 HOLDER ASSY, CASSETTE
58 1-452-899-11 MAGNET
59 3-019-395-01 PLATE, CHUCKING
60 3-238-219-01 LID, CD
61 3-238-935-01 SPRING (CD)
62 3-238-217-01 CABINET (REAR) (US)
62 3-238-217-21 CABINET (REAR) (MY,SP)
62 3-238-217-11 CABINET (REAR) (CND,E92,MX)
63 3-238-249-01 HANDLE
* 64 1-683-714-11 BATT COM BOARD
65 3-238-136-01 TERMINAL (+,-), BATTERY
* 67 1-683-703-11 BATT BOARD
* 68 A-3323-779-A TUNER BOARD, COMPLETE (US,CND,E92,MX)
* 68 A-3323-815-A TUNER BOARD, COMPLETE (MY,SP)
69 3-238-231-01 CHASSIS (TU)
70 3-238-134-01 TERMINAL, ANTENNA
71 3-238-135-01 TERMINAL (-), BATTERY
72 4-960-167-01 SCREW (3X8) (DIA. 10), +WH
* 74 1-683-702-11 TRANS BOARD
ANT1 1-501-883-21 ANTENNA, TELESCOPIC
0 F902 1-532-504-51 FUSE T4AL/250V (MY,SP)
0 F902 1-576-193-11 FUSE 6.3A/125V (US,CND,E92,MX)
0 T901 1-435-964-11 TRANSFORMER, POWER (US,CND,E92,MX)
0 T901 1-435-965-11 TRANSFORMER, POWER (MY,SP)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#5 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
#6 7-682-548-04 SCREW +B 3X8
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
