Sony CFD-G55 - Cabinet (Upper) Section

40
CFD-G55
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

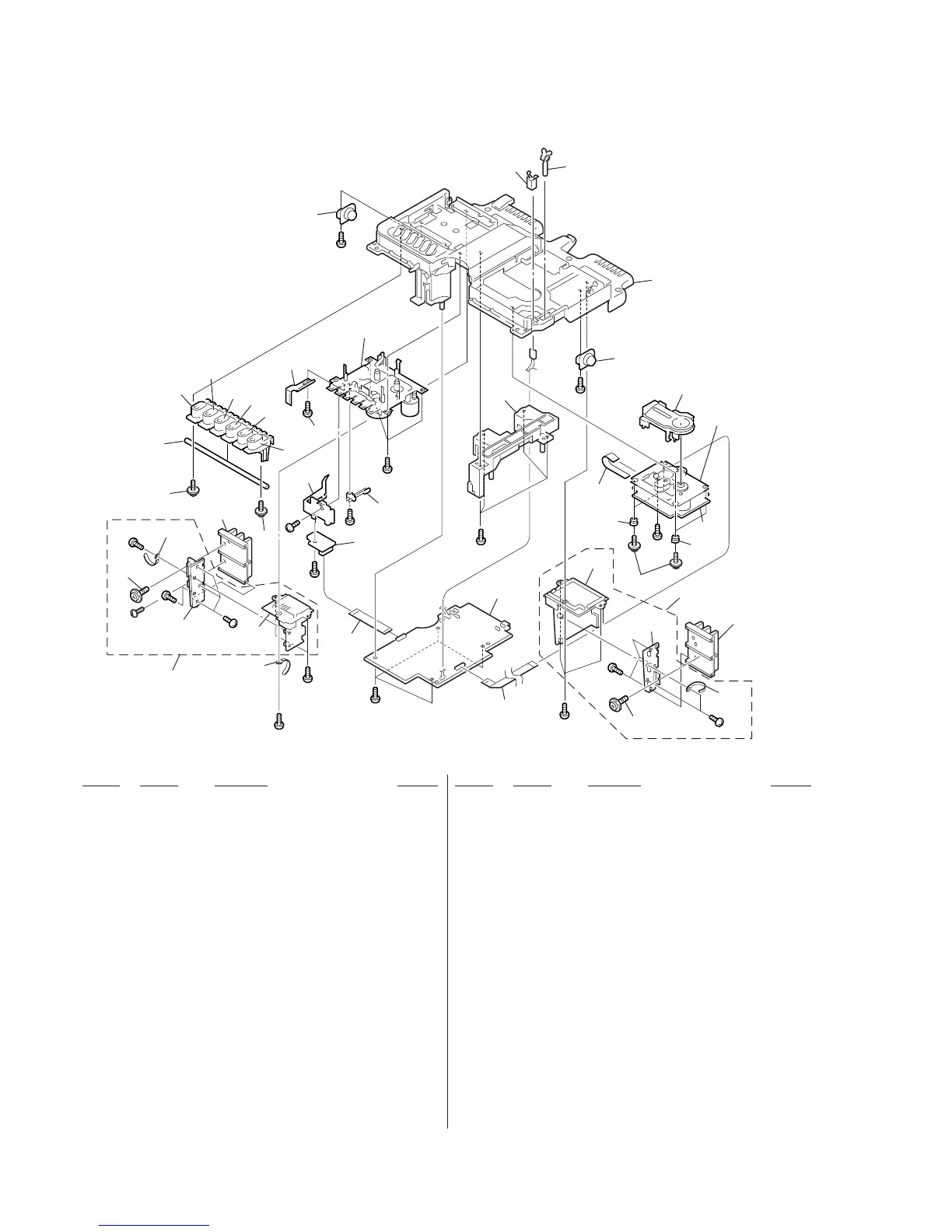

6-3. Cabinet (Upper) Section
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#7
#3
#3
#4
#4
#4
S321
S801
117
129
121
124
123
122
102
127
128
130
131
108
109
110
107
106
116
111
113
113
132
118
128
119
112
103
126
105
128
125
115
114
132
132
#3
not
supplied
not
supplied
120
101
CD mechanism
section
(KSM-213RDP
)
mechanism
deck section-1
(MF-V5-117)
not
supplied
not
supplied
* 101 A-3178-409-A L-R/REG BOARD, COMPLETE
102 3-238-232-01 CHASSIS (HS.L)
103 1-757-778-11 CABLE, FLEXIBLE FLAT (11 CORE)
105 3-031-560-01 SHAFT (MD)
106 3-238-236-01 BUTTON (REC)
107 3-238-237-01 BUTTON (PLAY)
108 3-238-238-01 BUTTON (REW)
109 3-238-239-01 BUTTON (FF)
110 3-238-240-01 BUTTON (STOP/EJECT)
111 3-238-241-01 BUTTON (PAUSE)
112 3-047-468-01 DAMPER
113 4-960-167-01 SCREW (3X8) (DIA. 10), +WH
114 3-232-770-01 STOPPER (CD)
115 3-238-218-01 CABINET (UPPER) (US,MY,SP)
115 3-238-218-11 CABINET (UPPER) (CND,E92,MX)
116 3-238-234-01 CHASSIS (CD)
117 3-923-736-01 COVER, CD
118 3-931-379-21 RUBBER, VIBRATION PROOF
119 3-931-379-31 RUBBER, VIBRATION PROOF
* 120 A-3178-410-A PDW BOARD, COMPLETE (US,CND,E92,MX)
120 A-3178-467-A PDW BOARD, COMPLETE (MY,SP)
121 3-238-233-01 CHASSIS (HS.R)
* 122 A-3178-408-A MAIN BOARD, COMPLETE (US,E92,MX)
* 122 A-3178-468-A MAIN BOARD, COMPLETE (MY,SP)
122 A-3178-462-A MAIN BOARD, COMPLETE (CND)
123 1-823-742-11 WIRE (FLAT TYPE) (14 CORE)
124 1-757-689-11 CABLE, FLEXIBLE FLAT (16 CORE)
* 125 A-3178-122-A CD BOARD, COMPLETE
126 A-3178-403-A TC BOARD, COMPLETE
127 3-222-727-01 LEVER (REC)
128 3-921-725-01 SCREW (2.6X10), +PWH
129 3-047-468-11 DAMPER
130 4-951-620-01 SCREW (2.6X8), +BVTP
131 3-222-726-01 CHASSIS (TC)
132 3-703-150-11 CLAMP
S321 1-771-686-11 SWITCH, LEAF (PLAY)
S801 1-692-960-11 SWITCH, PUSH (1 KEY) (ZPUSH OPEN/CLOSE)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#4 7-685-783-09 SCREW +PTT 2X6 (S)
#7 7-685-853-04 SCREW +BVTT 2X6 (S)
