Sony CFS-B5SMK2

– 20 –
SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the e xploded vie ws are not supplied.
• Items mar ked “*” are not stoc ked since
the y are seldom required f or routine ser vice.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
the y ma y ha ve some diff erence from the
original one.
• Color Indication of Appear ance P ar ts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Par ts Color Cabinet’ s Color
Ref. No. Part No. Description Remark

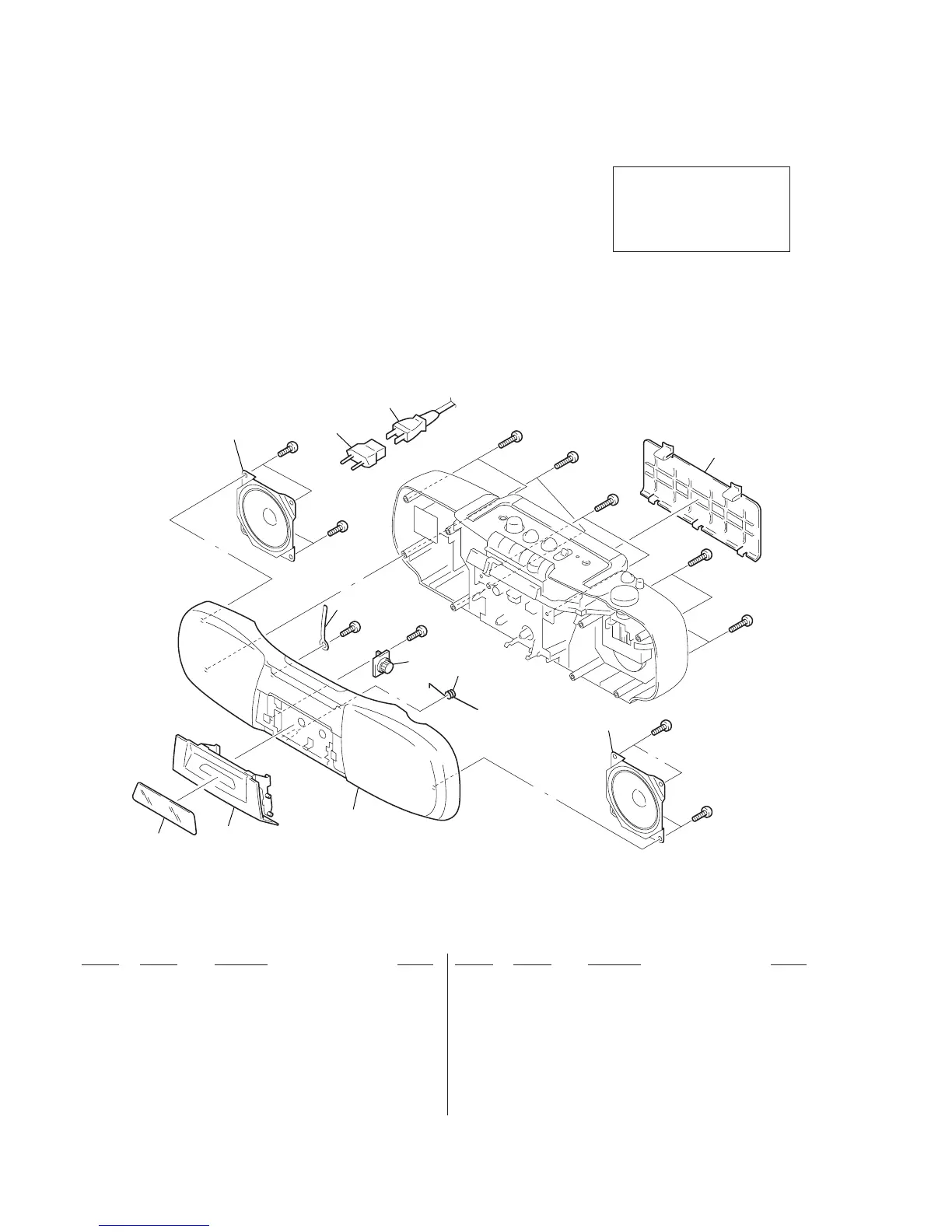

6-1. FRONT CABINET SECTION
N
N
Ref. No. Part No. Description Remark
• Abbreviation
EA : Saudi Ar abia model
E15 : AC 220-240V Area model
UAE : United Ar ab Emir ates model
SP : Singapore model
• Accessories and packing materials and
hardw are (# mar k) list are giv en in
the last of this parts list.
1 X-3375-769-1 CABINET (FRONT) SUB ASSY (BLACK) (EA)
1 X-3375-770-1 CABINET (FRONT) SUB ASSY (BLACK)
(EXCEPT EA)
1 X-3375-771-1 CABINET (FRONT) SUB ASSY (RED) (EA)
1 X-3375-772-1 CABINET (FRONT) SUB ASSY (RED) (E15)
2 3-025-531-01 LID, CASSETTE (BLACK)
2 3-025-531-11 LID, CASSETTE (RED) (EA,E15)
3 3-025-552-01 WINDOW (CASSETTE)
4 3-025-555-01 SPRING (CASSETTE)
5 3-922-112-11 DAMPER
6 3-703-397-01 STOPPER, WIRING
7 3-917-646-01 LID , B ATTER Y CASE (BLA CK)
7 3-917-646-11 LID , B ATTER Y CASE (RED) (EA,E15)
! 8 1-569-008-21 ADAPTOR, CONVERSION 2P (EA)
! 9 1-769-412-11 CORD, POWER
SP901 1-505-955-11 SPEAKER (10cm) (L-CH)
SP902 1-505-955-11 SPEAKER (10cm) (R-CH)
The components identified b y
mark ! or dotted line with mark.
! are cr itical for saf ety.
Replace only with part number
specified.
6
8
9
5
4
1
7
#2
#1
#1
#1
SP901
#1
#2
#2
#2
#1
SP902
#1
#3
2
3
