Sony CFS-B5SMK2 User Manual

– 5 –
SECTION 2
DISASSEMBLY
• The equipment can be removed using the following procedure.
Set / Front cabinet assy / Chassis (TUNE) / Tape mechanism block / Tuner, AC, Second board /
Audio, Microphone board
Note : Follow the disassembly procedure in the numerical order given.

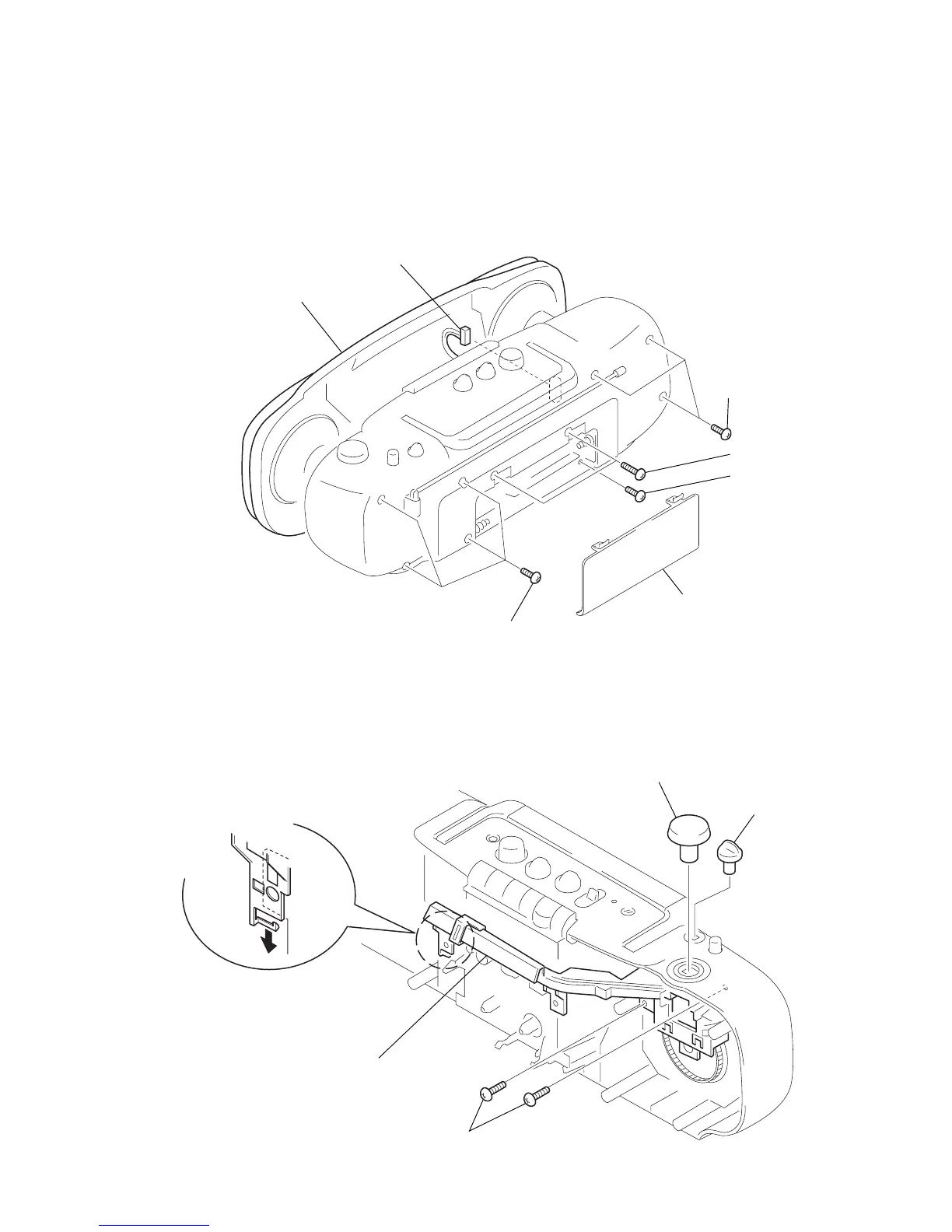

2-1. FRONT CABINET ASSY
2 BVTP 3x12
3 BVTP 3x16
4 BVTP 3x12
5 BVTP 3x12
6 CN912
7 front cabinet assy
1 battery case
2-2. CHASSIS (TUNE)
4 chassis (TUNE)
1 knob (TUNE)
2 knob (BAND
)
3 BVTP 3x10
