Sony CFS-B5SMK2

– 22 –

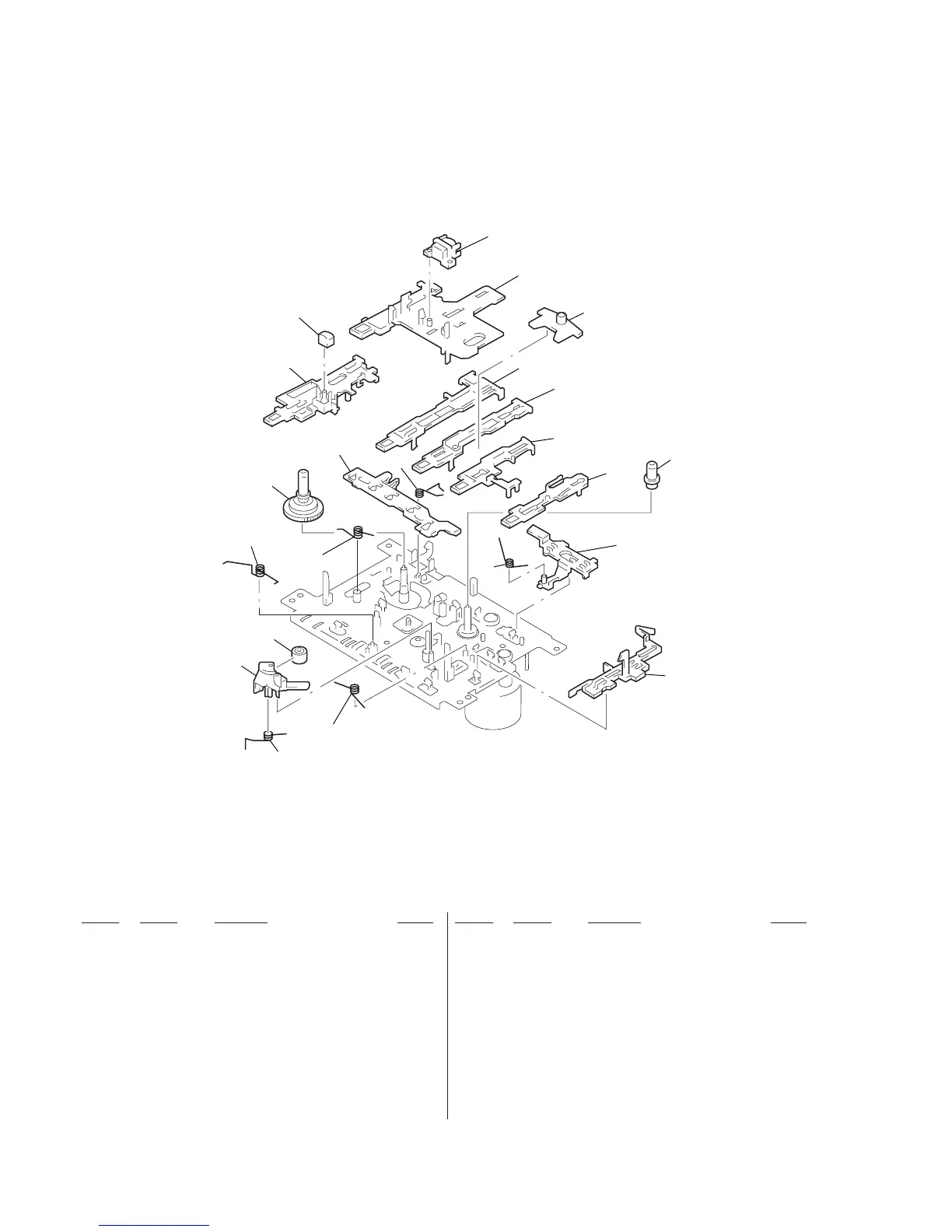

6-3. MECHANISM DECK SECTION (1)
(MF-B5MK2-117)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101
102
103
104
105
106
107
108
109
110
120
111
112
113
114
115
116
117
118
119
HRP101
HE101
101 3-933-010-01 SPRING (S/P), TORSION
102 3-933-025-01 SPRING (P), TORSION
103 3-933-026-01 LEVER (P)
104 3-933-024-01 ROLLER, PINCH
105 3-933-019-01 SPRING (F/R), TORSION
106 3-933-028-01 SPRING (FWD), TORSION
107 3-933-016-01 GEAR (S REEL)
108 3-008-590-01 SLIDER (REC)
109 3-008-592-01 BASE (H), HEAD
* 110 3-008-588-01 SLIDER (REW)
* 111 3-008-589-13 SLIDER (FF)
* 112 3-008-587-01 SLIDER (STOP)
* 113 3-008-591-01 SLIDER (P A USE)
114 3-933-004-01 CLA W, REEL
* 115 3-933-021-01 SLIDER (FRP)
* 116 3-933-006-01 SLIDER (EJECT)
117 3-934-833-01 SPRING (FRP)
118 3-934-834-01 SPRING (BT)
119 3-933-007-01 PLA TE, LOCK
* 120 3-012-114-01 LEVER (FR)
HE101 1-543-876-11 HEAD (ERASE)
HRP101 1-500-454-11 HEAD , MA GNETIC (RECORD/PLA YB ACK)
