– 21 –

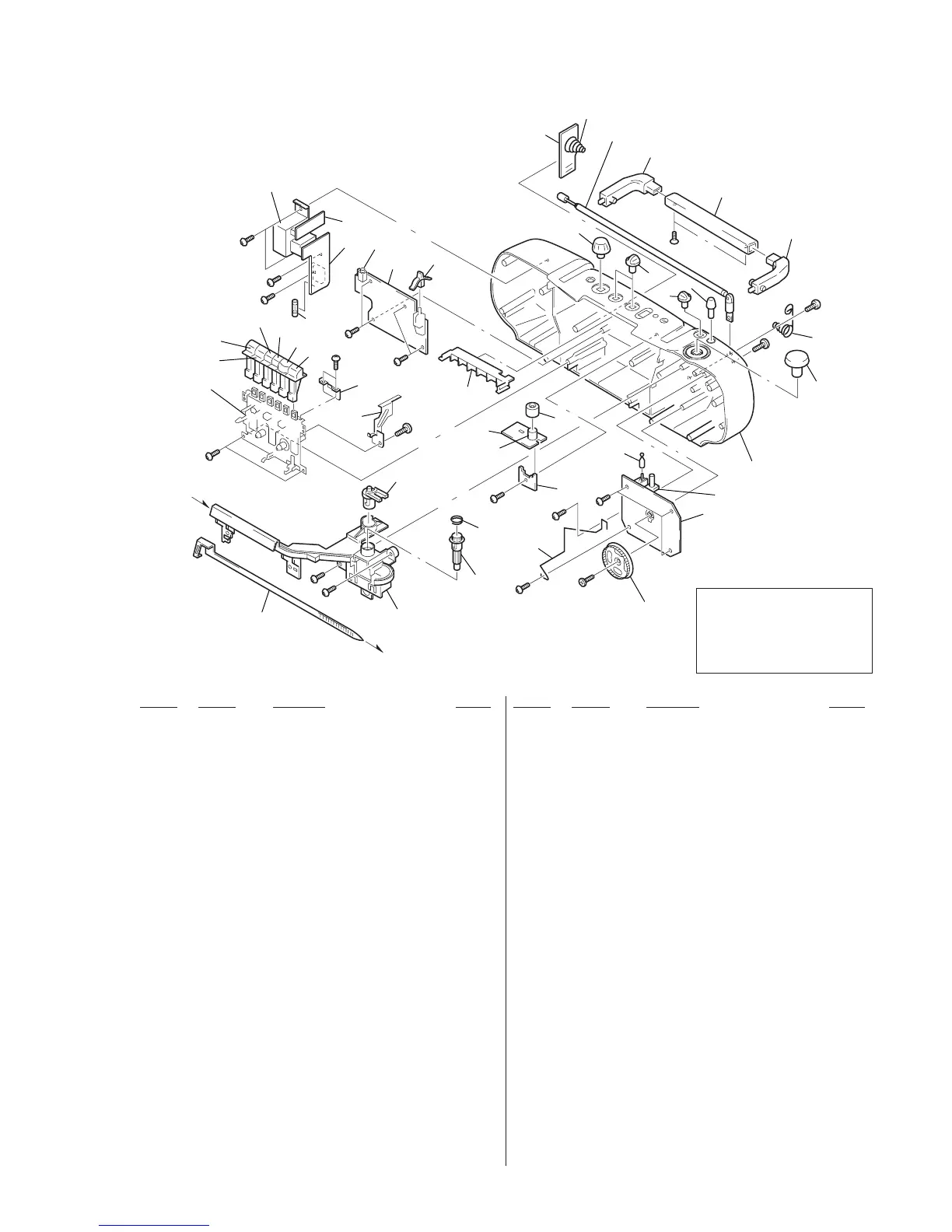

6-2. REAR CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified b y
mark ! or dotted line with mark.
! are cr itical for saf ety.
Replace only with part number
specified.
ANT1
T901
#5
#1
#1
#1
RV2
#1
#1
#1
#1
MIC301
#7
#6
F901
not supplied
J301
#1
#1
#1
#1
#1
MF-B5MK2-117
#1
#9
64
63
65
66
59
58
57
56
55
52
51
53
54
84
85
83
82
67
72
73
70
70
75
74
76
77
78
79
80
81
71
69
68
60
62
61
A
A
#4
51 3-025-530-01 POINTER
52 3-025-529-01 CHASSIS (TUNE)
53 3-025-545-01 SHAFT (TUNE)
54 3-025-560-01 SPRING (TU)
55 3-025-546-01 SHAFT (FUNCTION)
56 3-025-556-01 SPRING (REC)
57 3-025-534-01 BUTTON (REC)
58 3-025-537-01 B UTT ON (PLA Y)
59 3-025-536-01 BUTTON (REW)
60 3-025-535-01 BUTTON (FF)
61 3-025-538-01 BUTTON (STOP)
62 3-025-533-01 BUTT ON (P AUSE)
* 63 1-670-178-11 AC BOARD
* 64 1-670-173-11 SECOND BOARD
* 65 A-3321-464-A AUDIO BOARD, COMPLETE
66 3-025-541-01 LEVER (FUNCTION) (BLACK)
66 3-025-541-11 LEVER (FUNCTION) (RED) (EA,E15)
* 67 3-025-550-01 CHASSIS (MD)
* 68 1-670-172-11 BATTER Y BO ARD
69 3-025-557-01 TERMINAL (–), ANTENNA
70 3-025-548-01 HANDLE (S)
71 3-025-549-01 HANDLE (C) (BLACK)
71 3-025-549-11 HANDLE (C) (RED) (EA,E15)
72 3-025-539-01 KNOB (VOL) (BLACK)
72 3-025-539-11 KNOB (VOL) (RED) (EA,E15)
73 3-025-540-01 KNOB (TONE) (BLACK)
73 3-025-540-11 KNOB (TONE) (RED) (EA,E15)
74 3-025-542-01 KNOB (FUNCTION) (BLACK)
74 3-025-542-11 KNOB (FUNCTION) (RED) (EA,E15)
75 3-025-544-01 KNOB (FINE) (BLACK)
75 3-025-544-11 KNOB (FINE) (RED) (EA,E15)
76 3-009-210-01 SPRING, BA TTER Y TERMINAL COIL
77 3-025-543-01 KNOB (TUNE) (BLACK)
77 3-025-543-11 KNOB (TUNE) (RED) (EA,E15)
78 3-025-528-11 CABINET (REAR) (BLACK) (EA,E15,SP)
78 3-025-528-21 CABINET (REAR) (BLACK) (UAE)
78 3-025-528-41 CABINET (REAR) (RED) (EA,E15)
* 79 A-3321-465-A TUNER BOARD, COMPLETE (EXCEPT EA)
* 79 A-3321-471-A TUNER BOARD, COMPLETE (EA)
80 3-025-547-01 GEAR (VC)
81 3-025-559-01 TERMINAL, ANTENNA
82 3-025-551-01 FUNCTION (CAP)
* 83 1-670-179-11 SUPPOR T BO ARD
* 84 1-670-174-11 MICROPHONE BOARD
* 85 3-911-281-01 CUSHION, MIC
ANT1 1-501-918-11 ANTENNA, TELESCOPIC
! F901 1-532-149-31 FUSE, TIME-LAG (T0.125AL/250V)
J301 1-566-891-11 JACK ( 2)
MIC301 1-542-118-11 MICROPHONE, ELECTRET CONDENSER (MIC)
RV2 1-225-637-11 RES, VAR 100K (FINE TUNE)
! T901 1-4315-916-11 TRANSFORMER, POWER

Sony CFS-B5SMK2 Specifications

General

Type	Cassette Player
Brand	Sony
Model	CFS-B5SMK2
Power Source	AC/DC
FM Frequency Range	87.5 - 108 MHz
Tape Speed	4.76 cm/s
Radio Tuner	Yes
AC Power	220-240V, 50/60Hz
MW Frequency Range	530-1605kHz
