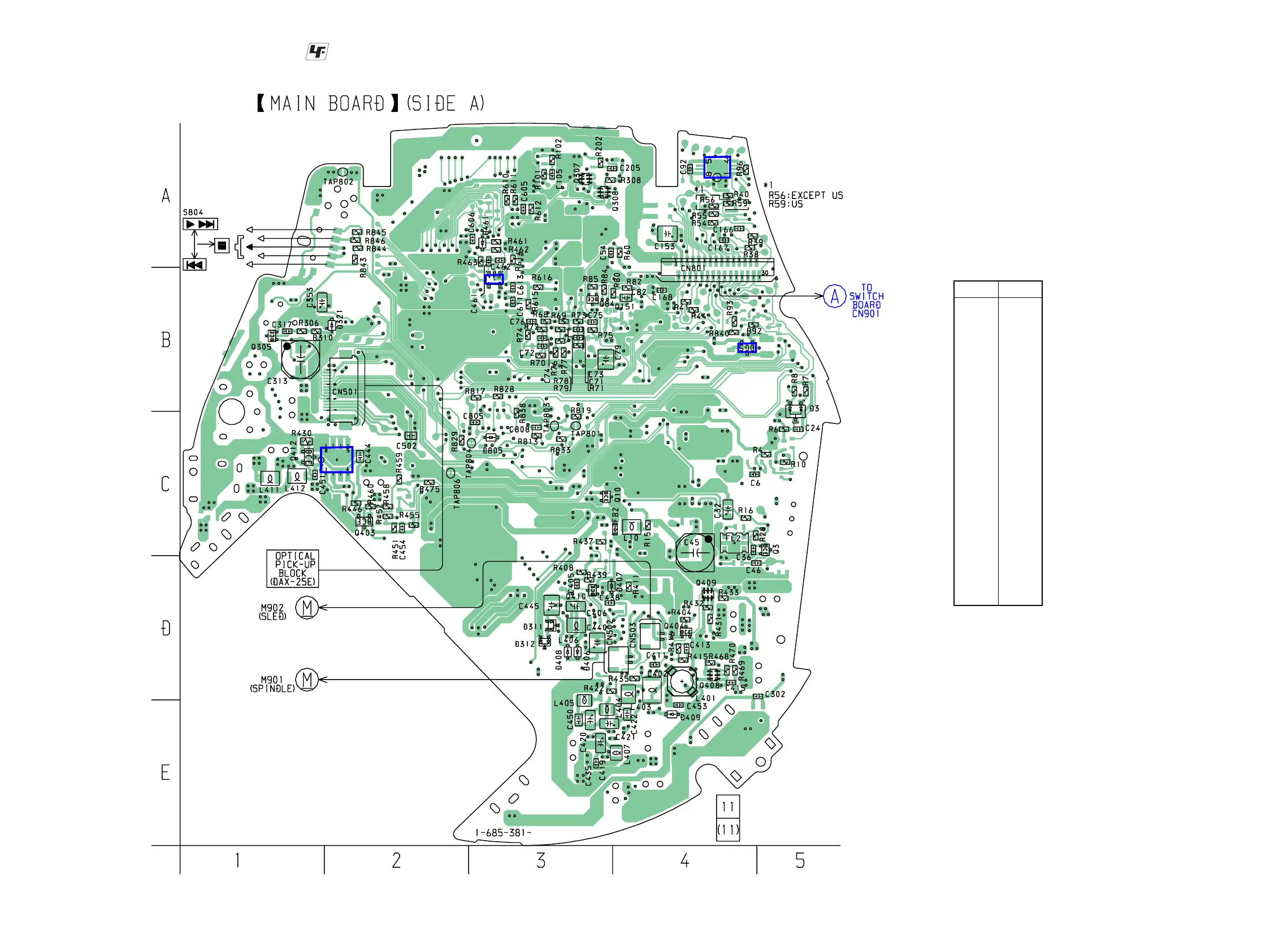

5-2. Printed Wiring Board – MAIN Board (Side A) –
Ref. No. Location
D3 C-5
D311 D-3
D312 D-3
D321 B-2
D406 D-3
D407 D-3
D408 D-3
D409 E-4
D461 A-3
D805 C-3
IC62 A-4
IC81 B-4
IC402 B-3
IC403 C-2
Q3 D-5
Q10 C-3
Q84 B-3
Q305 B-1
Q307 A-3
Q308 A-3
Q403 C-2
Q404 D-4
Q408 D-4
Q409 D-4
Q410 D-3
Q412 C-1
• Semiconductor
Location
IC62
IC81
IC402
IC403
: Uses unleaded solder.
