D-FS601

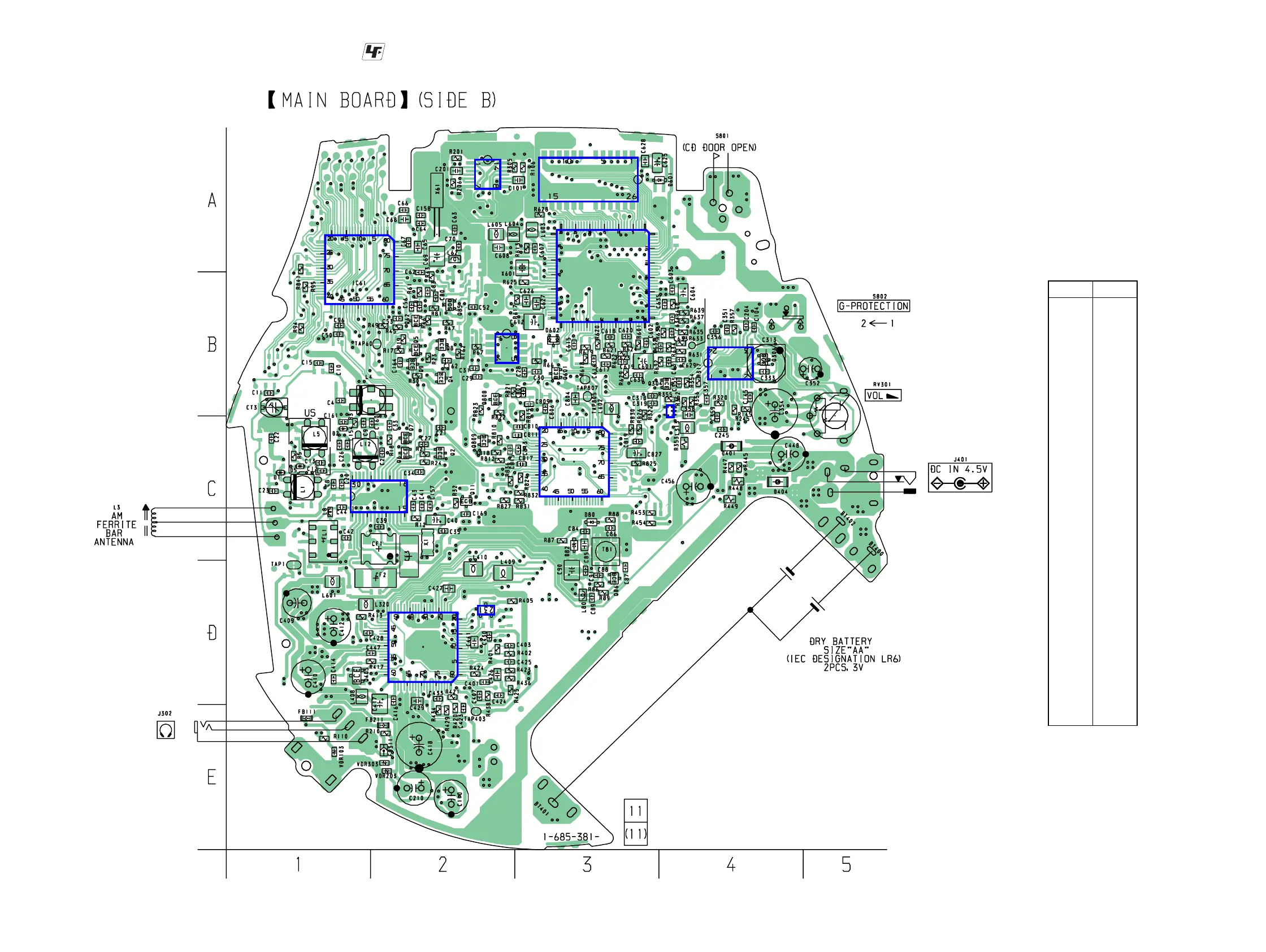

5-3. Printed Wiring Board – MAIN Board (Side B) –
Ref. No. Location
D1 C-1
D2 C-1
D5 C-1
D80 C-3
D82 C-3
D401 C-4
D404 C-4
D601 A-3
D602 B-3
IC1 C-2
IC61 A-1
IC71 B-2
IC302 B-4
IC303 A-2
IC304 C-4
IC401 D-2
IC404 D-2
IC601 A-3
IC602 A-3
IC801 C-3
Q2 C-2
Q4 B-2
Q5 B-2
Q6 C-2
Q7 C-2
Q8 B-2
Q9 B-2
Q11 C-2
Q62 B-2
Q85 B-2
Q86 D-3
Q304 B-3
Q306 B-4
Q405 D-1
Q601 B-3
Q808 B-2
Q809 C-2
• Semiconductor
Location
RECHARGEABLE
BATTERY
NH-WM2AA
2.4V
TJ629(RF)
TJ8
(VT)
IC602
IC302
IC303
IC71
IC1
IC601
IC801
IC304
IC401
IC404
IC61
: Uses unleaded solder.
