Sony D-FS601 - Cabinet Section

29
D-FS601

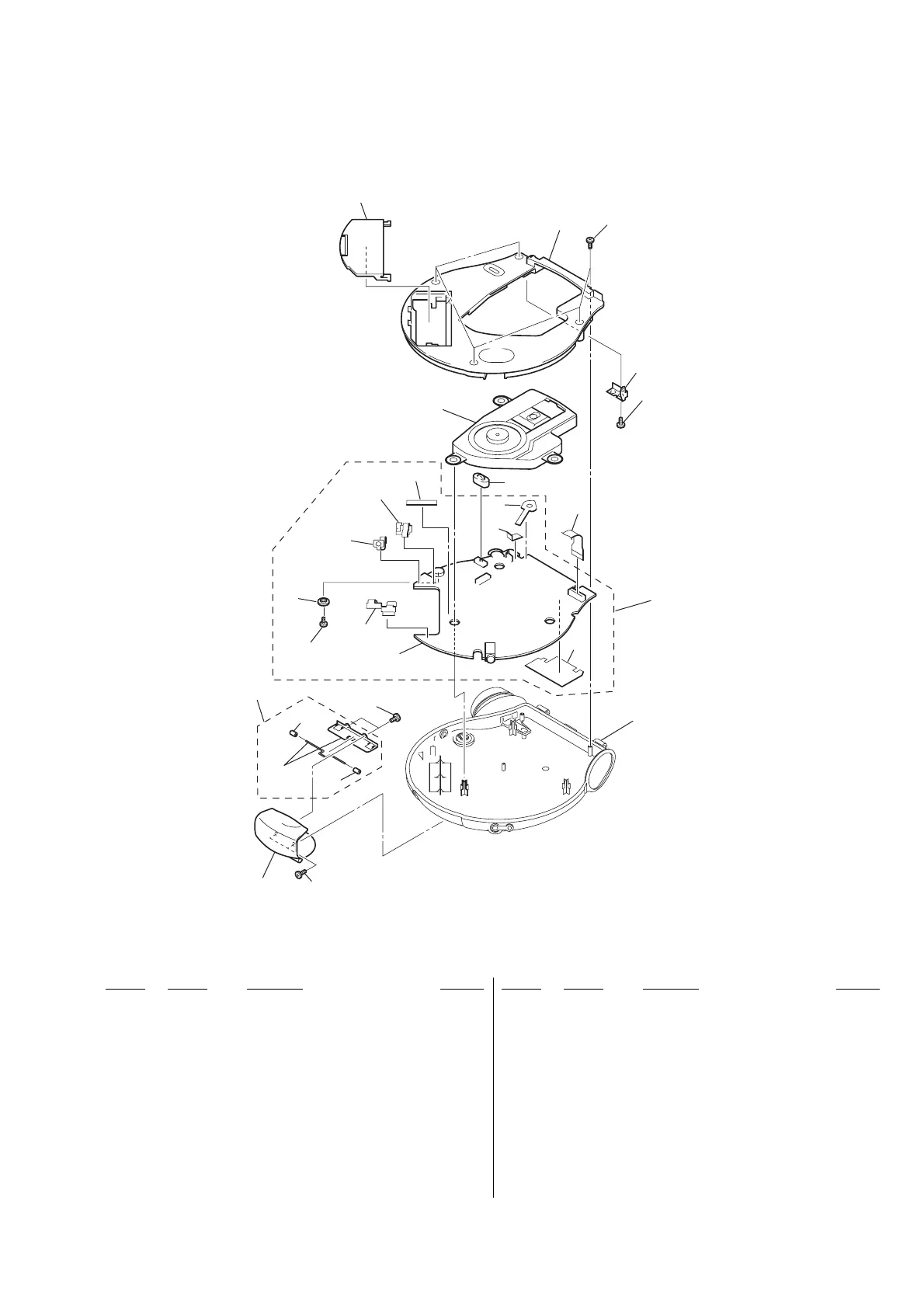

6-2. Cabinet Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-237-999-01 CABINET, MIDDLE
52 3-238-001-01 LID, BATTERY
53 3-238-014-01 ARM, B
54 4-908-792-51 SCREW (B2)
55 3-343-254-31 SCREW (B1.7X3), TAPPING
56 1-685-380-11 PWB, FLEXIBLE
57 4-223-609-01 KNOB (JOGGABLE)
58 4-225-316-01 ROLLER
59 X-3381-669-1 BUCKLE SUB ASSY
60 3-221-309-01 LEVER (VOL) (A)
61 4-223-413-01 SCREW (M1.4X3)
62 3-577-414-01 SPACER
* 63 A-3178-669-A MAIN BOARD, COMPLETE (US)
* 63 A-3178-676-A MAIN BOARD, COMPLETE (CND)
64 X-3381-670-1 BRACKET ROLLER ASSY
65 3-338-687-21 SCREW (M1.4X2), TAPPING
66 3-245-532-01 COPPER SHEET
67 3-245-576-01 SHEET, INSULATING (PWB)
68 3-245-910-01 COPPER SHEET (B)
BT400 3-238-476-01 TERMINAL, BATTERY (+)
BT401 3-238-477-01 TERMINAL, BATTERY LINK
BT402 3-221-307-01 TERMINAL BOARD (-), BATTERY
52
51
57
5666
67
68
62
63
60
61
54
55
53
cabinet lower section
54
65
64
58
58
59
not
supplied
not
supplied
Optical Pick-Up section
(CDM-3125ER)
BT402
BT400
BT401
