Sony D-FS601 - 6 Exploded Views; Upper Lid Section

NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
28
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
D-FS601
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Accessories are given in the last of this parts
list.

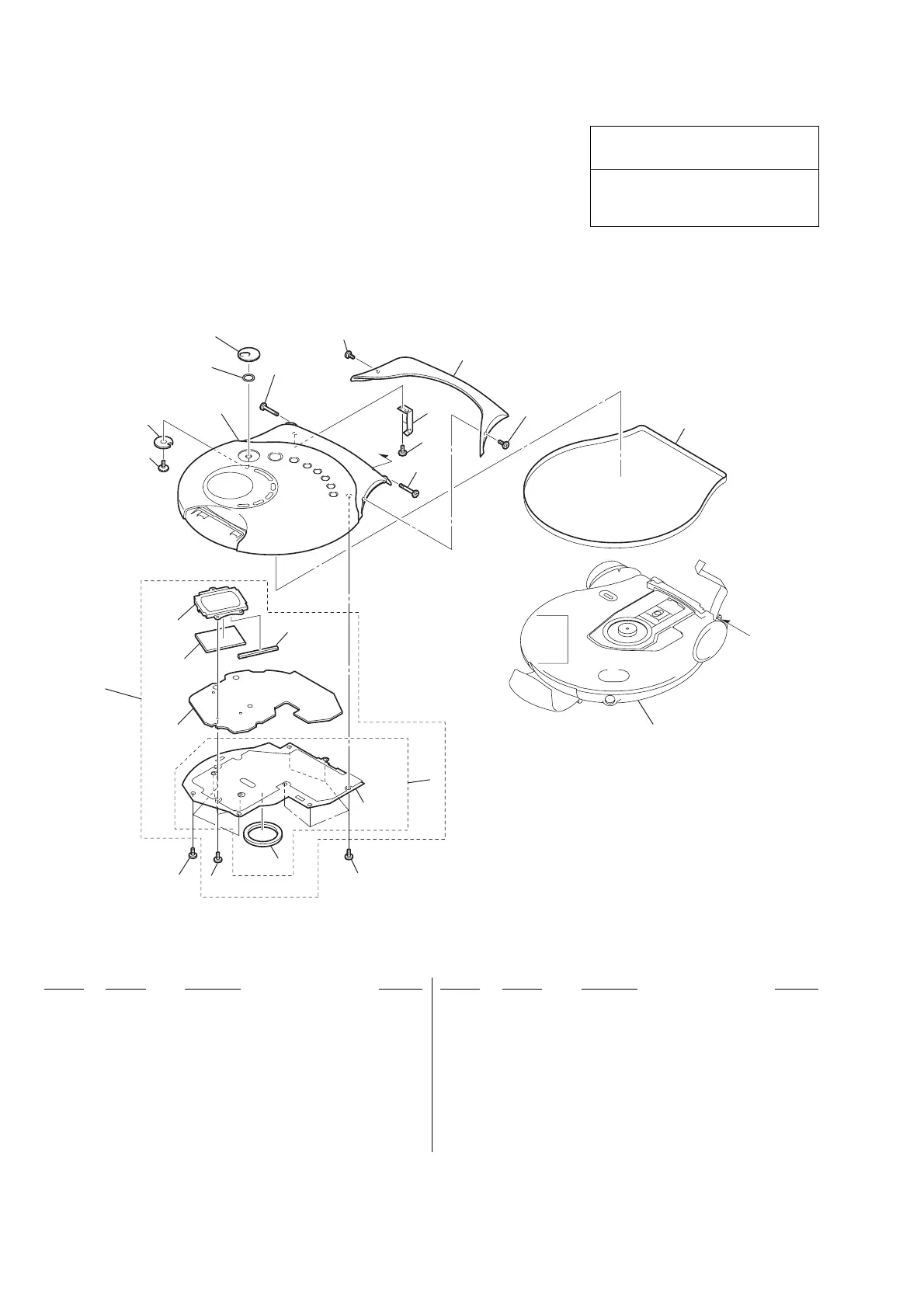

6-1. Upper Lid Section
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
SECTION 6
EXPLODED VIEWS
1 X-3382-543-1 COVER (SVX) ASSY, LID
2 3-343-254-31 SCREW (B1.7X3), TAPPING
* 3 A-3178-670-A SWITCH BOARD, COMPLETE
4 3-338-687-21 SCREW (M1.4X2), TAPPING
5 3-238-012-01 RING, UPPER LID
6 3-245-012-01 RUBBER,CONNECTOR
7 3-243-360-01 HOLDER (LCD)
8 3-318-201-51 SCREW (B) (1.4X4), TAPPING
9 3-238-008-01 LEVER, HOLD
10 X-3382-540-1 LID (SVX) ASSY, UPPER (US)
10 X-3382-542-1 LID (SVX) ASSY, UPPER (CND)
11 3-221-329-01 RING, O
12 3-238-021-01 KNOB, HOLD
13 3-238-478-01 SCREW, TAPPING
14 3-238-004-01 GRIP
15 3-238-013-01 ARM, A
16 3-238-025-01 PACKING (UPPER LID)
GL901 1-804-638-11 LCD
2
14
15
2
1
3
11
10
12
13
6
8
9
7
cabinet section
GL901
16
13
2
2
2
4
5
a
a
not
supplied
not
supplied
