Sony D-FS601 - 3 Disassembly; Upper Lid, Middle Cabinet

6
D-FS601

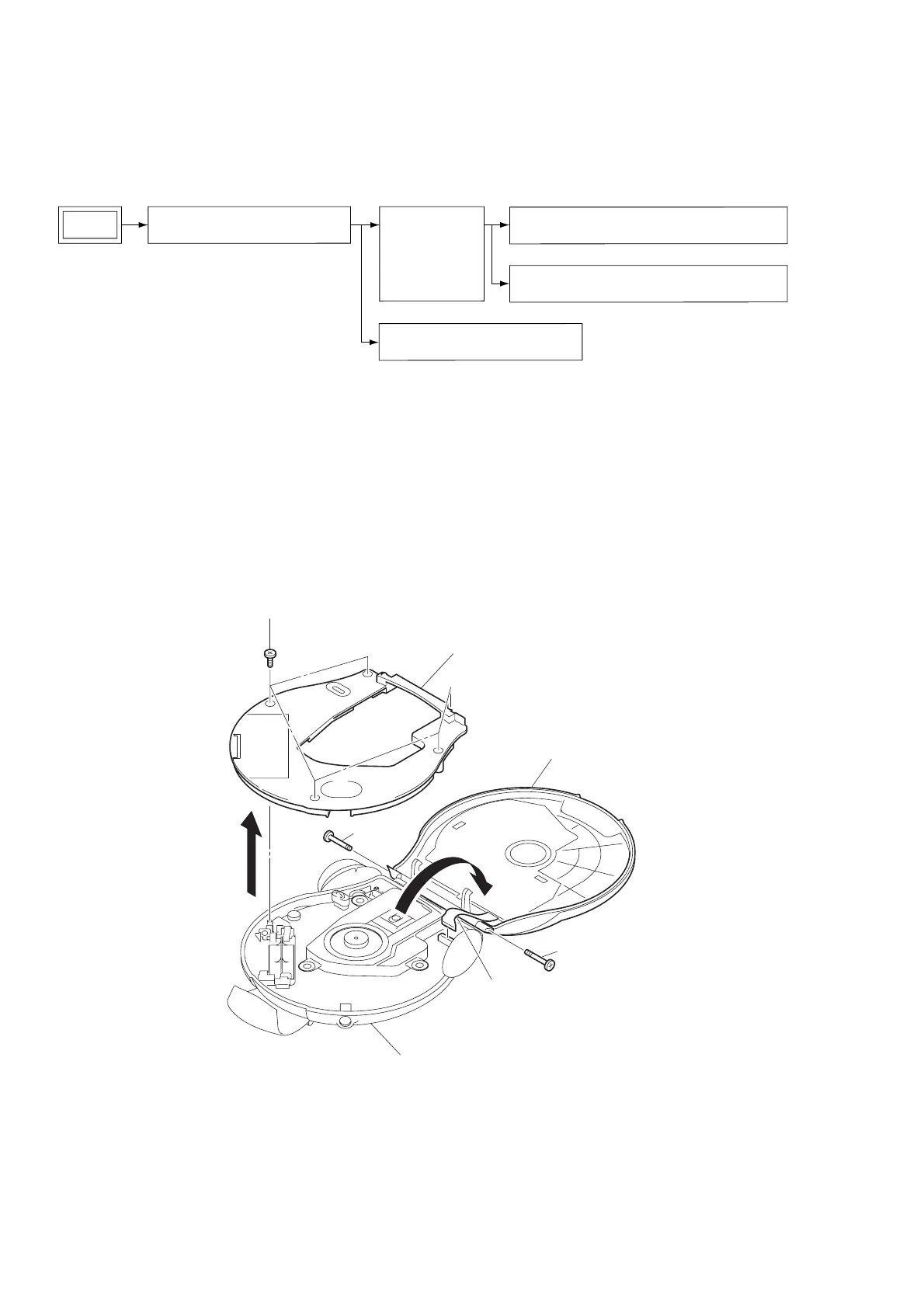

SECTION 3
DISASSEMBLY
SET
MOTOR ASSY, (SLED)(M902),
OPTICAL PICK-UP (DAX-25E)
MAIN BOARD
SWITCH BOARD, HOLD LEVER
UPPER LID, MIDDLE CABINET
MD ASSY
(CDM-3125ER),
MOTOR ASSY, TURN TABLE (SPINDLE)(M901)
Note : Follow the disassembly procedure in the numerical order given.
3-1. Upper Lid, Middle Cabinet
z
The equipment can be removed using the following procedure.
3 five screws (B2)
1 screw
6 flexible board
1 screw
middle cabinet
upper lid
4
2
cabinet lower sub assy
5
7
