Sony D-FS601 - Page 5

5
D-FS601
qh i (headphones)
jack
(pages 6, 13, 20)
qd PLAY MODE•
TUNING – button
(pages 9 - 12, 15)
8 DC IN 4.5 V
(external power
input) jack
(pages 6, 21)
qa PRESET –/+ buttons
(page 15)
1 AM button
(pages 12, 15)
2 FM button
(pages 12, 15)
4 TV button
(pages 12, 15)
3 WB (weather band)
button (pages 12, 15)
6 3-way control key
(see below)
5 HOLD switch
(page 18)
7 VOL* (volume)
control
(page 7)
qj Buckle
(page 6)
9 Display
(pages 8, 10 - 14, 17, 18)
qs REPEAT/ENTER•
TUNING + button
(pages 9 - 12, 15)
qf SOUND button
(pages 17, 18)
qg MEMORY button
(pages 14, 15)
q; 1 - 3 buttons
(page 14)
6 3-way control key
Push toward
N/> or
..
Press x•
RADIO OFF/
CHG.
N/>**: Play/AMS/search
(pages 7, 8, 11)
.: AMS/search (pages 7, 11)
x•RADIO OFF/CHG:
Stop•charge/turn off the radio
(pages 7, 15, 19)
* There is a tactile dot beside VOL to show the direction to turn up the volume.
** There is a tactile dot beside N/>.
wa Battery compartment
(page 21)
ql G-PROTECTION
switch
(page 17)
qk STEP switch
(page 16)
w; LOCAL/DX switch
(page 13)

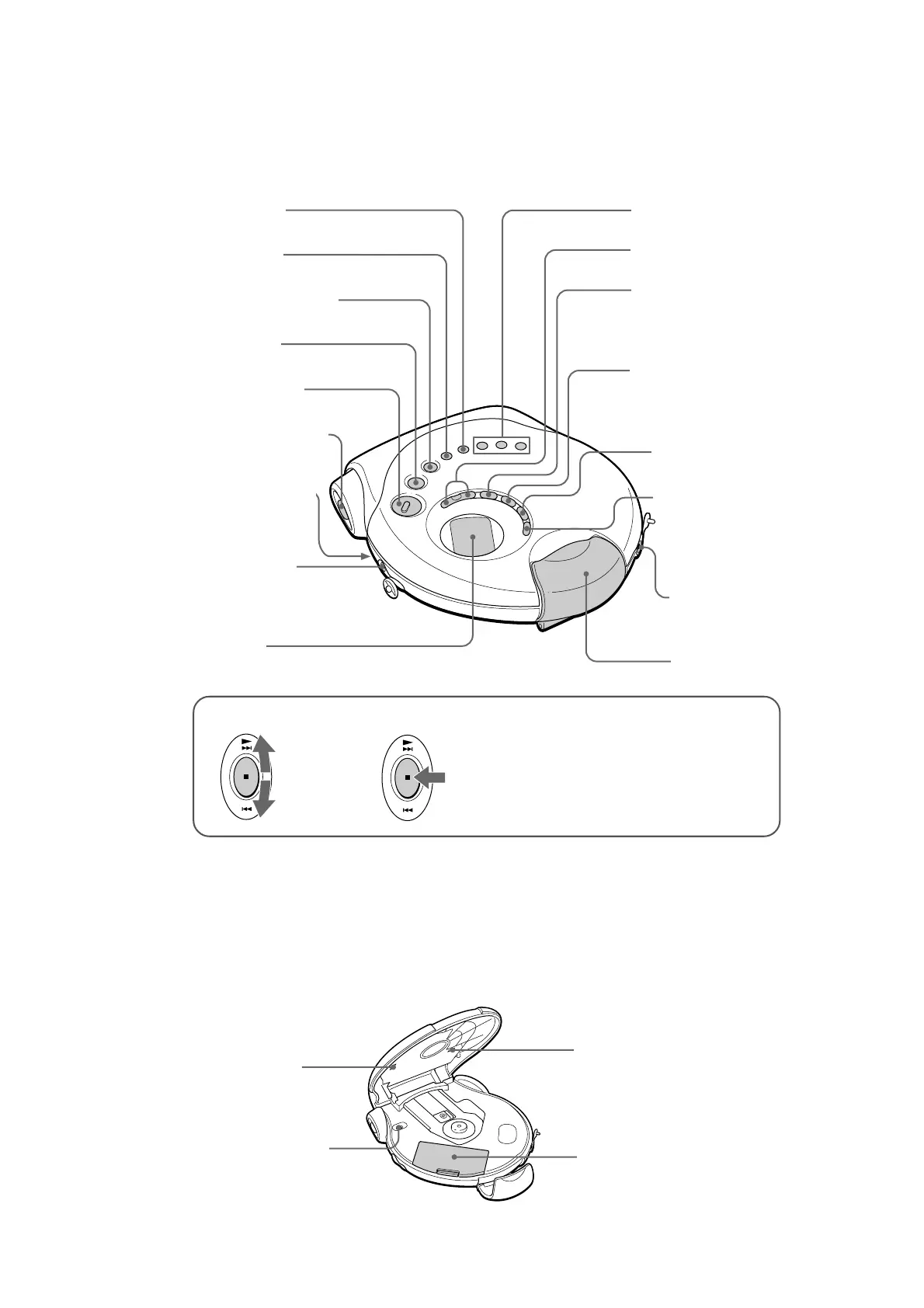

CD player (fornt)
(US model)
CD player (inside)
