Monitoring
Chapter 1 Getting Started
1-35
Chapter 1
The DMX-R100 provides comprehensive monitoring of a variety of input signals through dual sets of
loudspeakers: control room and studio. The Control Room loudspeakers can operate in stereo, mono, or
surround*, and the Studio loudspeakers can operate in stereo or mono. All monitoring operations can be

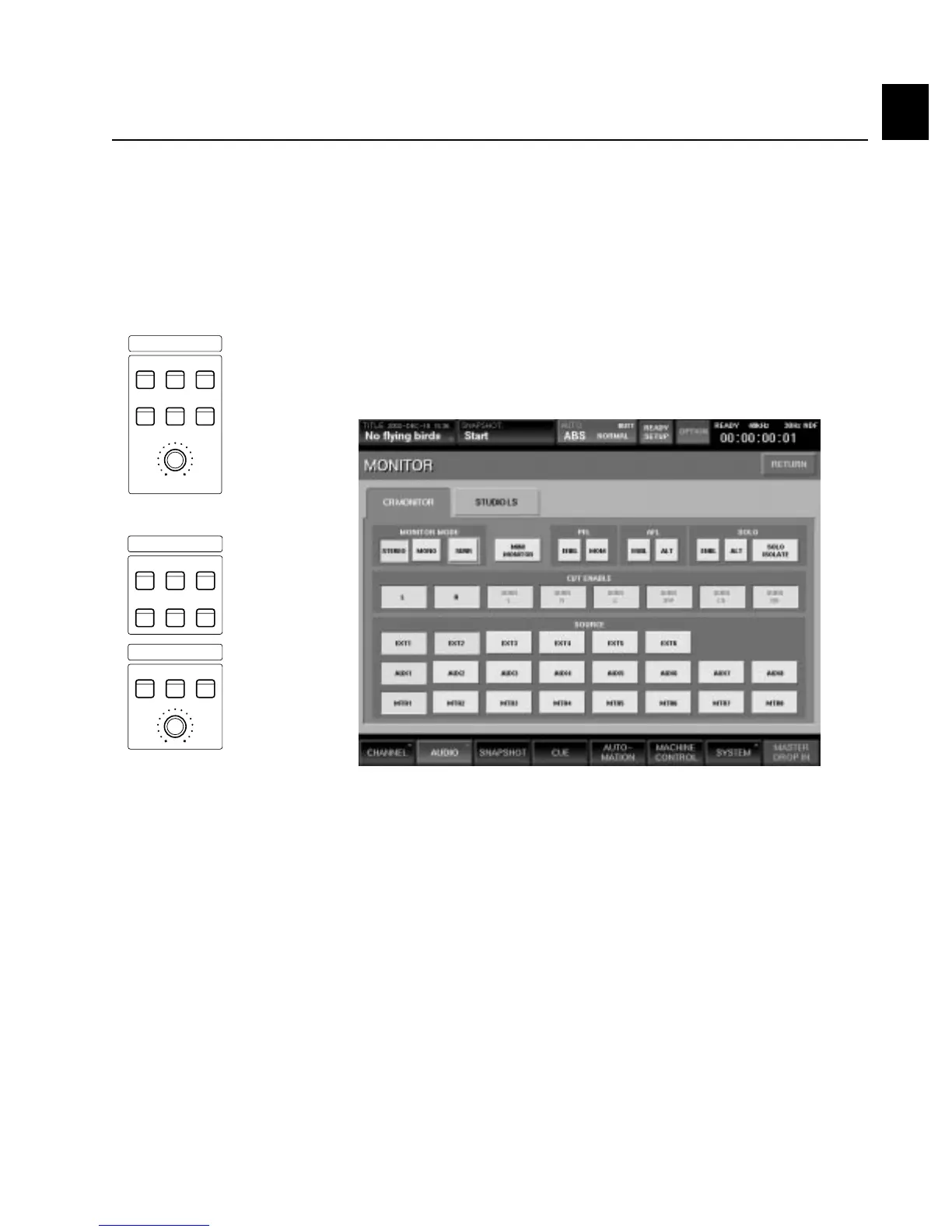

carried out from the front panel of the DMX-R100 (see Figure 42) or from the Monitor window (see
Figure 43), accessed by pressing the AUDIO tab at the bottom of the touchscreen, then selecting MONITOR.
Figure 42 Figure 43
Depending upon the settings of the front panel switches, the Control Room loudspeakers can be set to carry
signal from the PGM bus, any single or odd/even pair of Aux sends, any single or odd/even pair of MTR buses,
any single or odd/even pair of EXT inputs (as set in the Input Routing window; see page 1-13 in this
guidebook), or the (analog) 2TK1 or (digital) 2TK2 signal.
Depending upon the settings of the front panel switches, the Studio loudspeakers can be set to carry signal
from the PGM bus or the 2TK1 or 2TK2 signal. However, pressing the front panel SETUP switch in the
Studio LS section not only calls up the Monitor window but also allows you to monitor signal over the Studio
loudspeakers from any single or odd/even pair of Aux sends, any MTR buses, or any EXT inputs.
Other options in the Monitor window allow you to set various Solo functions. For more information, see
Chapter 3 in the DMX-R100 Operating Instructions.
* For more information about surround applications, see Appendix B on page B-1 in this guidebook.
