Sony DSC-U20 - Board; Flexible Board; Ty-15 Board

2-4
DSC-U20

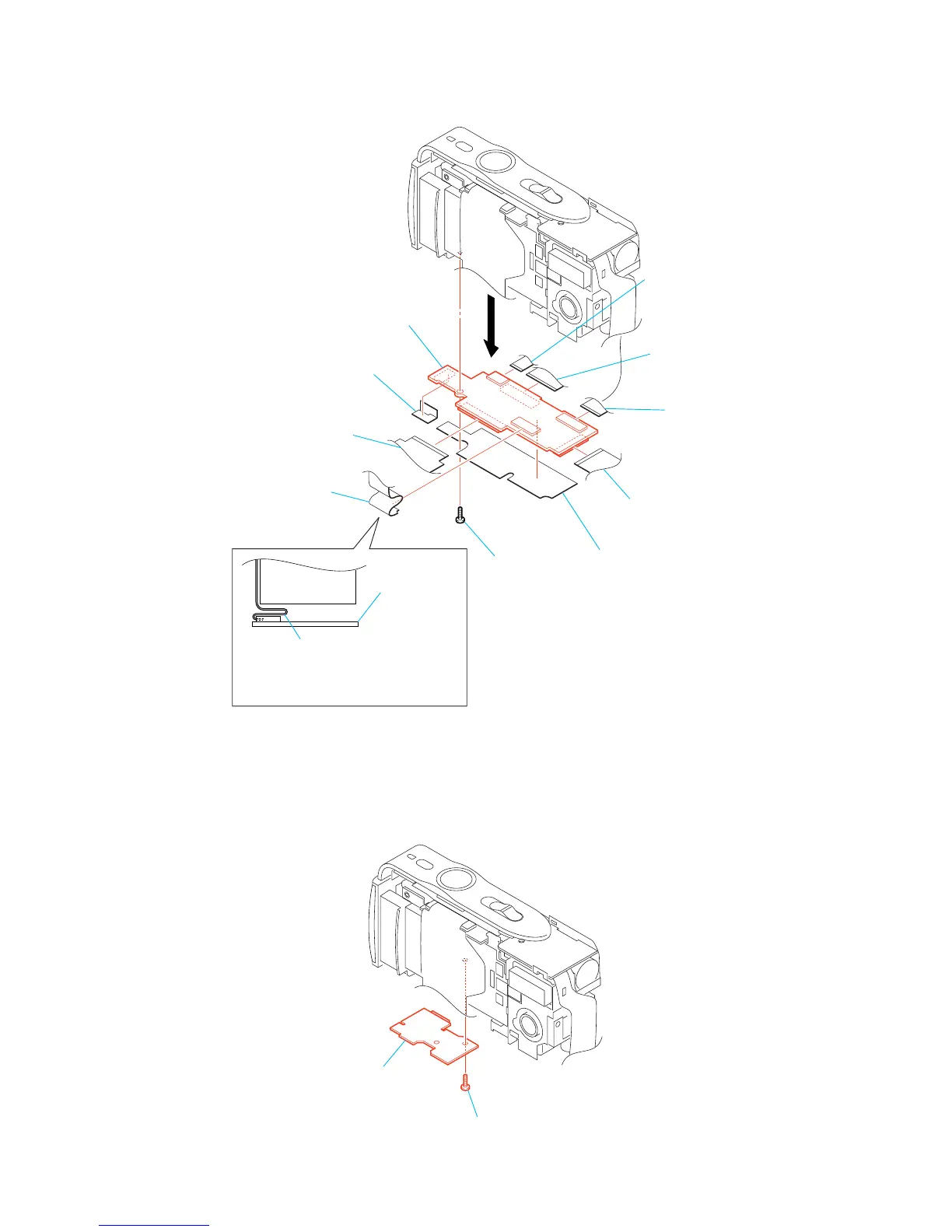

2-5. TY-15 BOARD
3 Flexible boards
(CN904)
8 Flexible boards
(CN903)
7 Flexible boards
(CN907)
9 Flexible board (CD-425)
(CN902)
1 Sheet (TY)
4 Sheet (USB)
qa TY-15 board
6
TY-15 board
2 Flexible board (FP-532)
(CN901)
0 Flexible board (SW-376)
(CN906)
Flexible board (SW-376)
Note: When installing Flexible board,
set it as shown in the figure.
5 Screw (M1.7)
2-6. US-4 FLEXIBLE BOARD
1 Screw (M1.7)
2 US-4 flexible board
