Sony DSC-U20 - PD-174 Board; Lens Block Assembly

2-5
DSC-U20

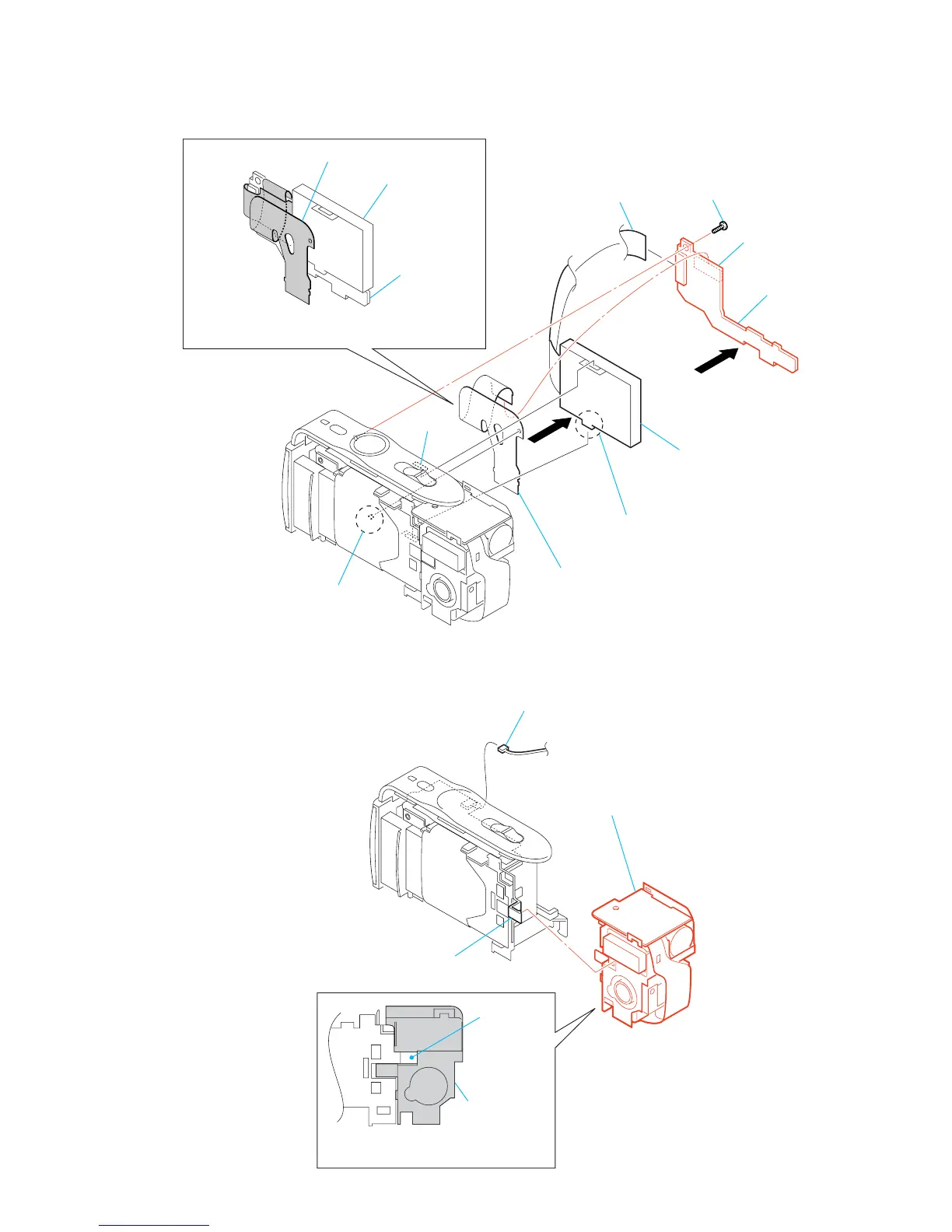

2-7. PD-174 BOARD
LCD
1 Screw (M1.7)
qa PD-174 board
PD-174 board
8 FP-533 flexible board (CN904)
6 Connector (CN401)
FP-533 flexible board
9 Flexible board (CN402)
2
5
Note: When installing FP-533 flexible board,
set it as shown in the figure.
0 LCD
(ACX711AKM-2)
4 Boss
7 Boss
3 Claw
2-8. LENS BLOCK ASSEMBLY
1 Connector (CN002)
Note: When installing lens block assembly,
set it as shown in the figure.
3 Lens block assembly
Lens block
assembly
2 Claw
Claw
