Sony DSC-U20 - Cabinet (Upper) Assembly; Flexible Board

2-6
DSC-U20
2-10.SL-59 FLEXIBLE BOARD
Note: High-voltage cautions
(See page 1-1)
2 Screw (M1.7)
5 SL-59 flexible board
1 Flexible board
4 Claw
3 Claw

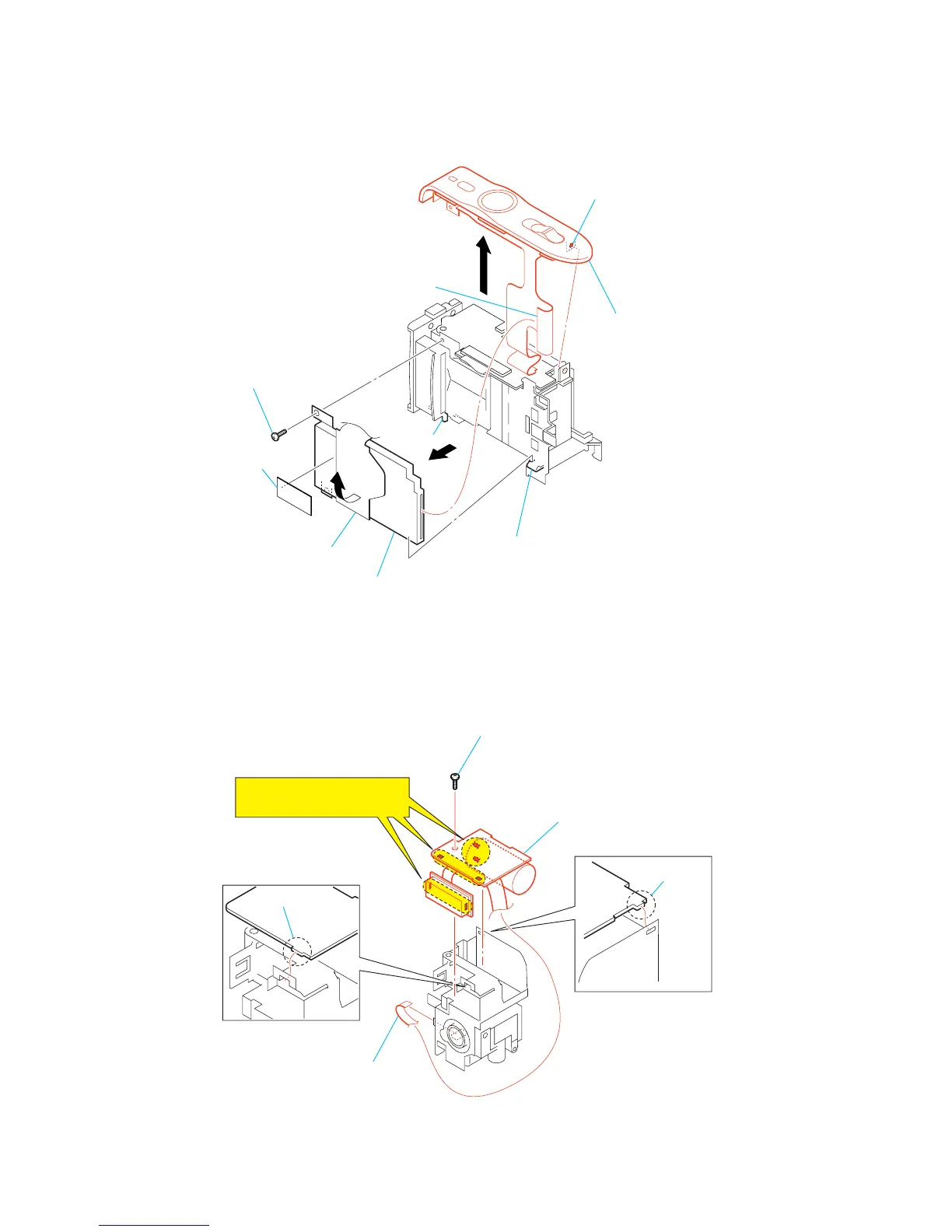

2-9. CABINET (UPPER) ASSEMBLY
qa Cabinet (upper) assembly
7 Boss
8
6
3 Screw (lock ace)
1 Sheet, lens
2
9 Connector
(memory stick connector)
4 Claw
0 Memory stick connector
FP-533 flexible board
5 Claw
