Sony DSC-U20 - Cabinet (Front) Assembly; Flexible Board

2-2
DSC-U20

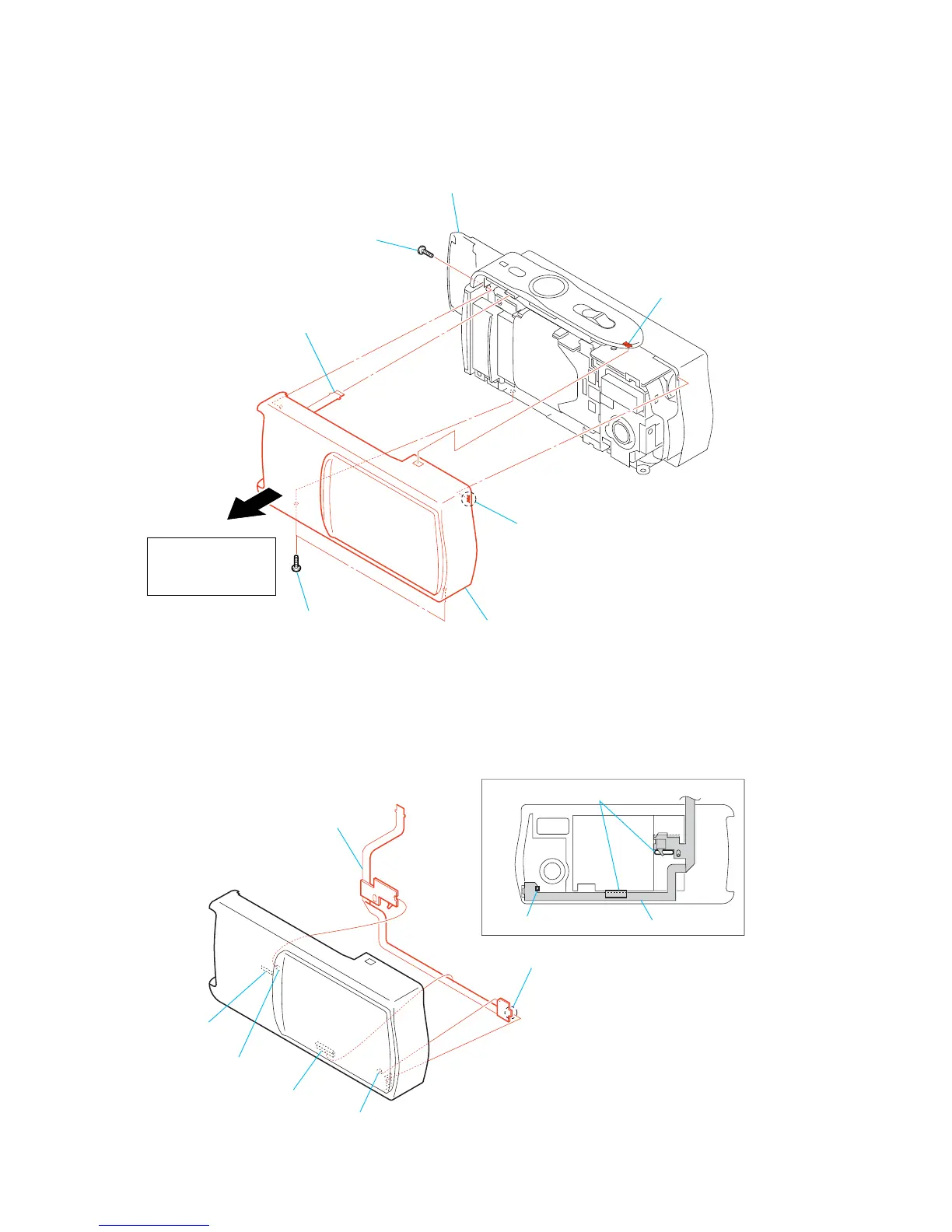

2-2. OP-17 FLEXIBLE BOARD
2-1. CABINET (FRONT) ASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
1 Open battery lid.
2 Screw (lock ace)
3 Two screws (lock ace)
8 Cabinet (front) assembly
4 Claw
5 Claw
6
7 Flexible board
(CN001)
Note: Remove it while
taking care as
the flexible board
is connected.
1 Boss
3 Boss
6 OP-17 flexible board
OP-17 flexible board
boss
claw
REAR VIEW
4 Boss
2 Claw
5 Claw
