5-2
DSC-U20
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
COVER
COVER

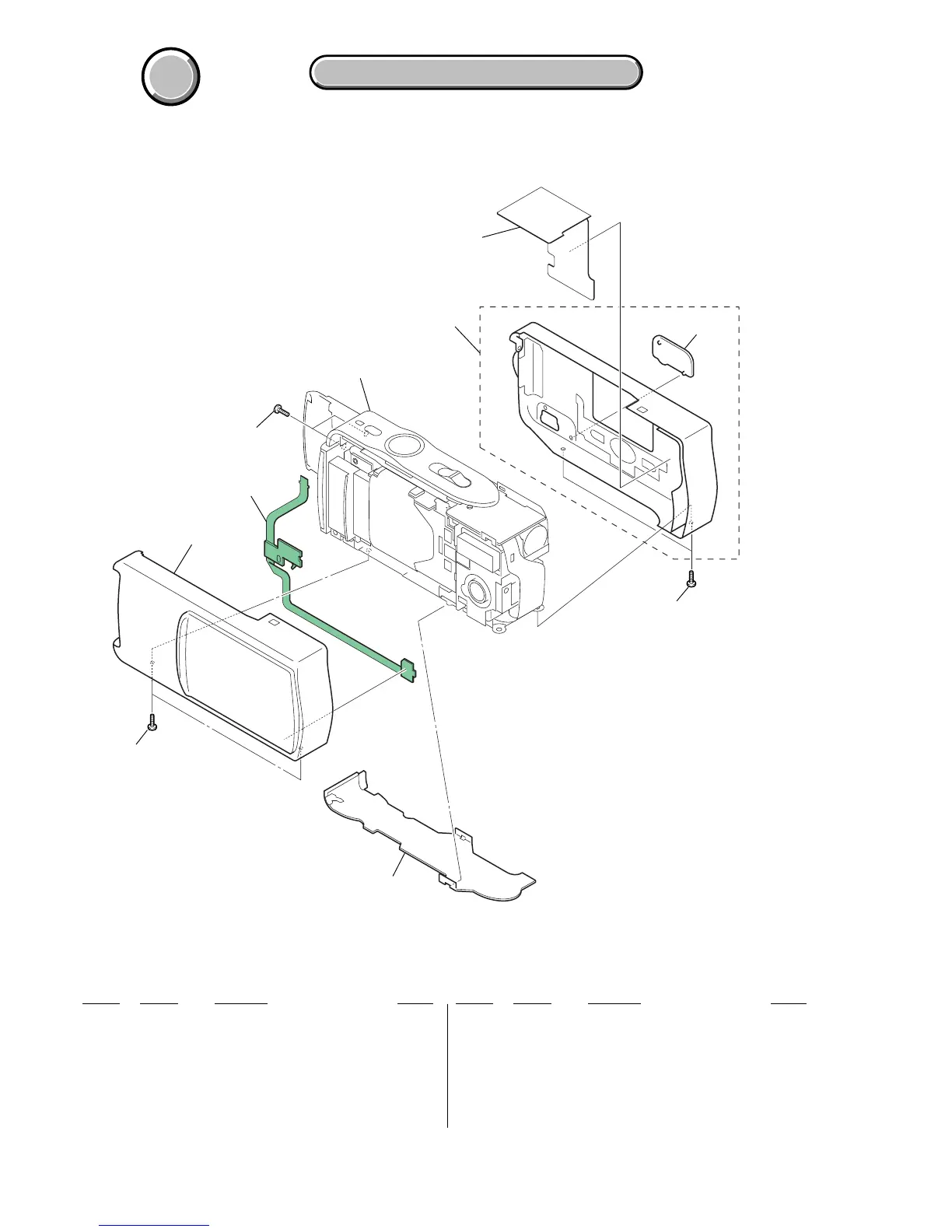

5-1-1. CABINET SECTION
ns: not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3952-895-1 CABINET (BOTTOM) ASSY
2 3-389-523-22 SCREW (LOCK ACE) (SILVER)
2 3-389-523-23 SCREW (LOCK ACE) (BLACK, BLUE)
3 X-3953-058-2 CABINET (FRONT) ASSY (K) (SILVER)
3 X-3953-061-1 CABINET (FRONT) ASSY (K) (BLACK)
3 X-3953-063-1 CABINET (FRONT) ASSY (K) (BLUE)
4 A-7078-313-A OP-17 FLEXIBLE BOARD, COMPLETE
5 X-3953-059-1 CABINET (REAR) ASSY (K) (SILVER)
5 X-3953-062-1 CABINET (REAR) ASSY (K) (BLACK)
5 X-3953-064-1 CABINET (REAR) ASSY (K) (BLUE)
6 3-076-931-01 LABEL, FUSE REPLACEMENT CAUTION
7 3-076-539-01 COVER, USB (SILVER)
7 3-076-539-11 COVER, USB (BLACK, BLUE)
OP-17
1
cabinet (upper) and bottom section
(See page 5-2.)
2
3
4
2
5
7
2
6
5-1. EXPLODED VIEWS
