DSC-V3
HELP

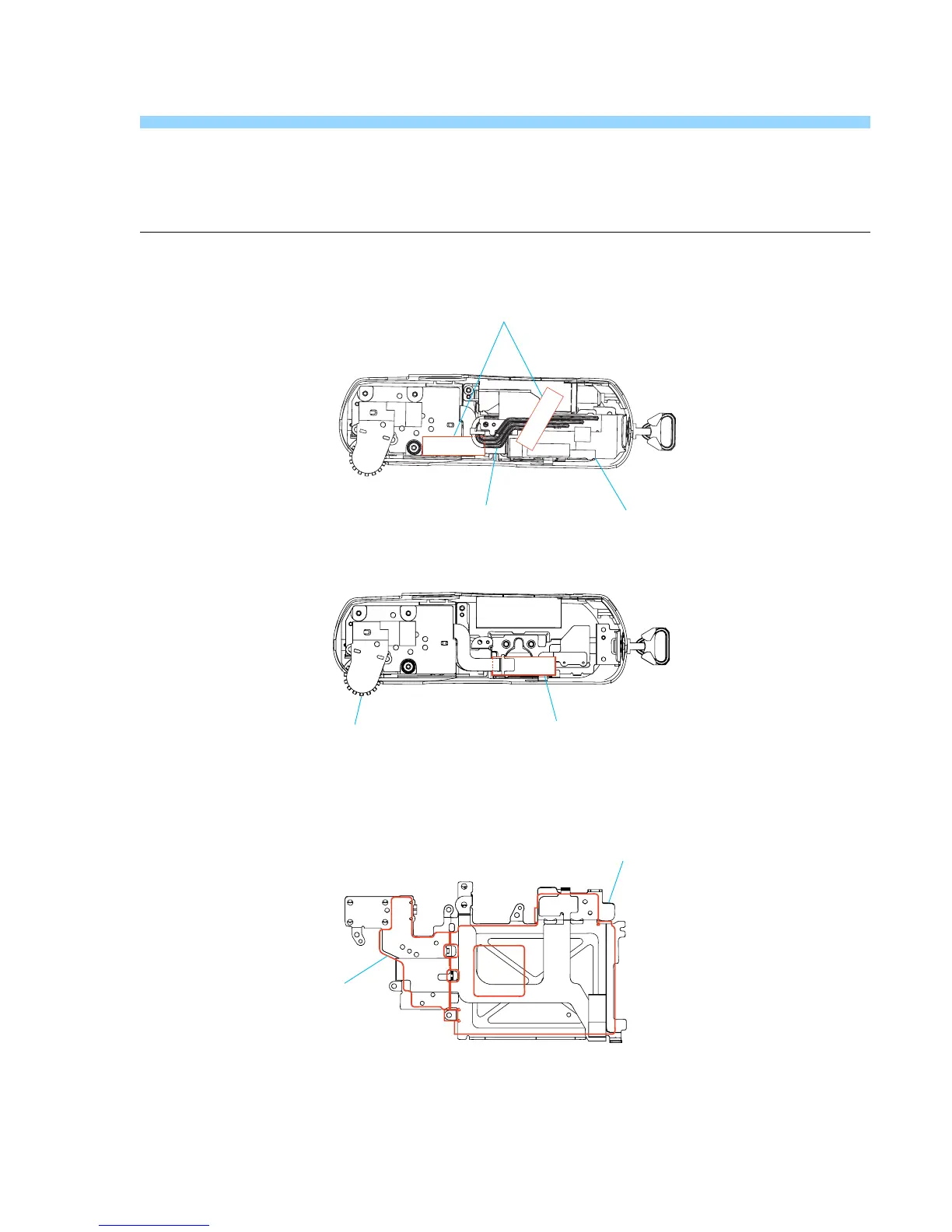

Sheet attachment positions and procedures of processing the fle
xible boards/harnesses are shown.
ST
-111 board
T
ape (A)
T
ape (A)
SY protection sheet
Control s
witch bloc
k
(SW51610) (Rear Sw)
Har
ness
Control s
witch bloc
k
(SW51610) (Mode Sw)
12
14
Table of Contents
Default Chapter
2
Specifications
2
Table of Contents
4
1 Service Note
5
Note for Repair
5
Discharging of the Charging Capacitor (C205)
5
Note in Lens Frame Installation
6
Notes on Handling the Laser Diode
6
Board]
6
Description on Self-Diagnosis Display
7
2 Disassembly
8
Service Position
11
The Method of Attachment of Harnesses
12
Circuit Boards Location
12
3 Block Diagrams
14
Overall Block Diagram (1/3)
16
Overall Block Diagram (2/3)
17
Power Block Diagram (1/2)
18
Power Block Diagram (2/2)
19
4 Printed Wiring Boards and Schematic Diagrams
20
Frame Schematic Diagrams
20
Frame Schematic Diagram (1/2)
20
Frame Schematic Diagram (2/2)
21
Schematic Diagrams
22
Flexible (CCD Imager)
22
Flash Drive)
26
Flash Unit
26
Flexible (Plunger)
27
Cf/Ms Connector
27
Control Switch Block
32
(Sw51610) (Rear Sw)
32
Control Switch Block
33
(Sw51610) (Mode Sw)
33
Printed Wiring Boards
34
Flexible
34
Flexible
35
Mounted Parts Location
42
5 Repair Parts List
45
Exploded Views
47
Main Block
47
Cabinet (Front) Block
48
Grip Block
49
Lens Block
50
Cabinet (Upper) Block
51
Cabinet (Rear) Block
52
Electrical Parts List
53
Revision History
59
4
Based on 1 rating
Ask a question
