2. DISASSEMBLY
2. DISASSEMBLY

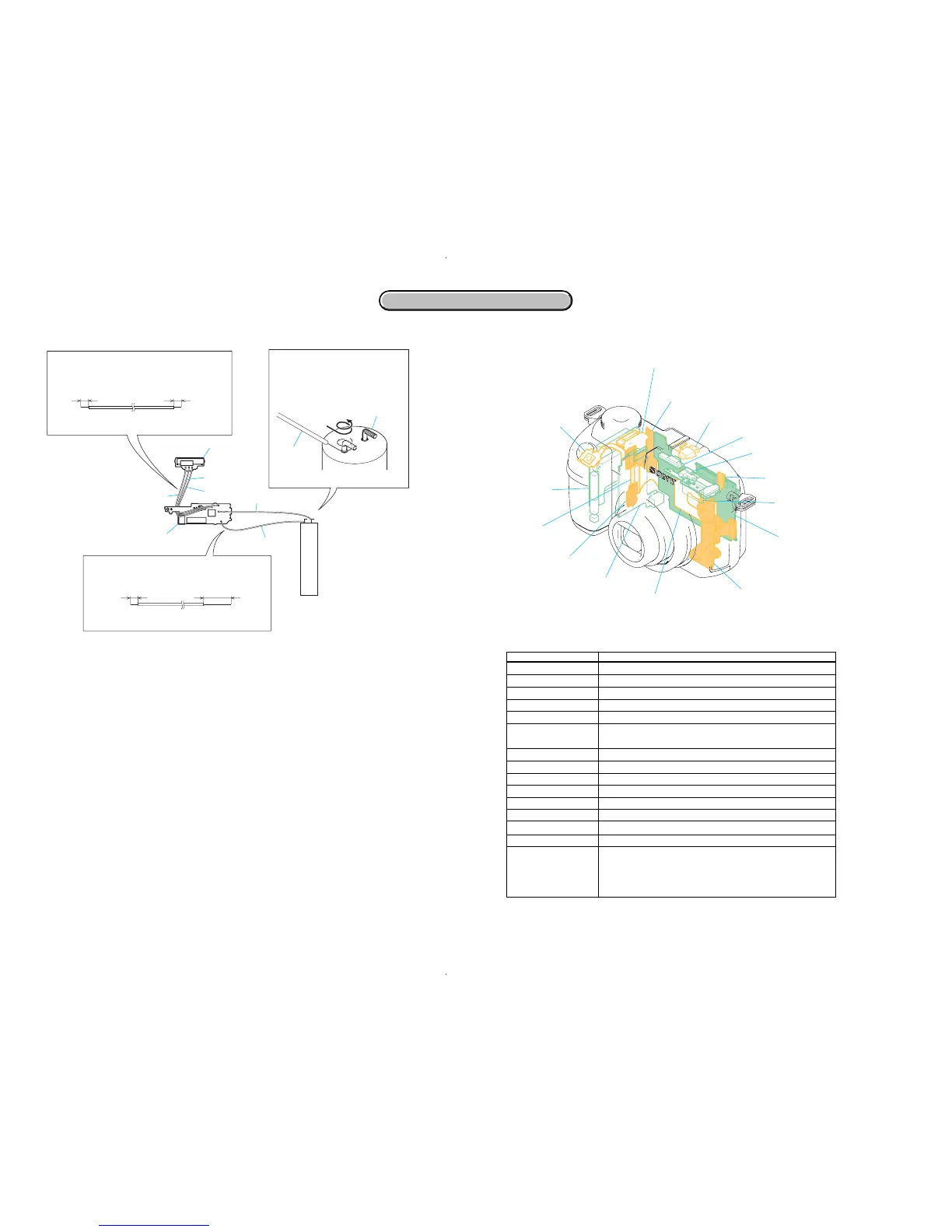

2-3. THE METHOD OF ATTACHMENT OF HARNESSES
2-7 2-8E
Black
Blue
Pink
ST-111 board
Harness (HN-002) 1-963-221-XX
When connecting the harness to
the strobe capacitor terminals,
wind the naked leads of the harness
around the terminals by more than
2.5 turns, and then solder them.
Cut the both ends of the harness at position shown below
to expose the copper leads.
Cut the both ends of the harness at position shown below
to expose the copper leads.
Harness
Capacitor
10mm2.3mm
2.3mm2.3mm
Harness (HN-001) 1-963-220-XX
FL-147 board
White
White
Board Name Function
AF-008 FLEXIBLE AF LASER
BB-005 FLEXIBLE SY-DD EXTENSION BOARD
BT-026 FLEXIBLE BATTERY IN
CD-515 FLEXIBLE CCD IMAGER
CF-099 CF/MS CONNECTOR
CH-146 CCD SIGNAL PROCESS
(included in SY-106)
DD-217 FRONT CONTROL, DC IN, DC/DC CONVERTER
FL-147 FLASH UNIT
JK-269 FLEXIBLE USB, A/V JACK
LI-072 FLEXIBLE LITHIUM BATTERY
MS-211 FLEXIBLE SY-CF EXTENSION BOARD
PL-001 FLEXIBLE PLUNGER
RE-003 FLEXIBLE SHUTTER SWITCH
ST-111 FLASH DRIVE
SY-106 CAMERA MODULE, CAMERA DSP, LENS DRIVE,
(Including CH-146) SH DSP, CF INTERFACE, LCD DRIVE, AUDIO,
LANC DRIVE, AF LASER/IR LED DRIVE, FLASH
CONTROL
SY
SY
-106
-106
DD-217
CD-515 flexible
SY-106
(including CH-146)
ST-111
FL-147
PL-001 flexible
CF-099
JK-269 flexible
AF-008
CH-146
(included in SY-106)
RE-003 flexible
LI-072 flexible
BB-005 flexible
MS-211 flexible
BT-026 flexible
2-4. CIRCUIT BOARDS LOCATION
