5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-V3

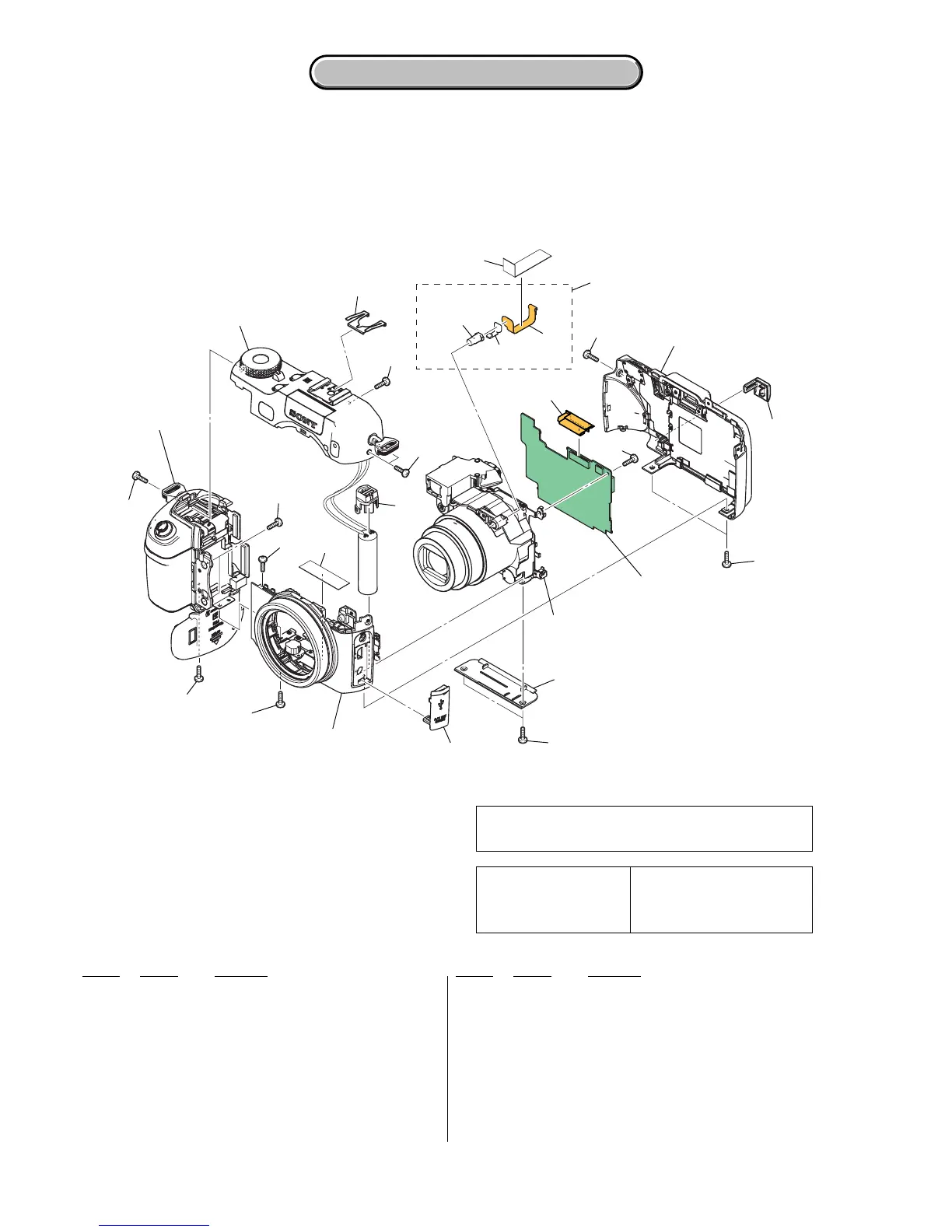

5-1-1. MAIN BLOCK
Ref. No. Part No. Description
Ref. No. Part No. Description
1 2-515-756-91 SCREW (M1.7), TORASUTA, P2
2 3-080-222-11 SCREW (M1.7), TAPPING, P2
3 2-187-067-01 COVER, CAPACITOR
4 3-082-835-01 SPRING, SHOE
5 1-864-458-11 FP-082 FLEXIBLE BOARD
6 2-187-068-01 COVER, DC
7 3-941-343-21 TAPE (A)
0 8 A-1077-533-A AF-008 FLEXIBLE BOARD, COMPLETE (Note)
9 3-083-456-01 RETAINER, ASSIST LIGHT COVER
10 2-187-069-01 BOTTOM, CABINET
11 2-187-070-01 LID, JK
12 3-080-222-21 SCREW (M1.7), TAPPING, P2
13 A-1085-167-A SY-106 BOARD, COMPLETE
(Including CP201 (CH-146 board))
(SERVICE) (EXCEPT J)
13 A-1089-920-A SY-106 BOARD, COMPLETE
(Including CP201 (CH-146 board)) (SERVICE) (J)
14 3-989-735-51 SCREW (M1.7), LOCK ACE, P2
0 D109 1-805-470-01 LASER UNIT (Note)
5-1. EXPLODED VIEWS
ns: not supplied
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
(Note) Be sure to read “PRECAUTIONS FOR USE OF LASER
UNIT” on page 1-2 when removing the laser unit and
AF-008 flexible board.
SY-106
ns
D109
(Note)
Grip block
(See page 5-4.)
Cabinet (front) block
(See page 5-3.)
Cabinet (upper) block
(See page 5-6.)
Lens block
(See page 5-5.)
Cabinet (rear) block
(See page 5-7.)
14
1
1
1
1
1
1
1
2
2
7
3
4
5
6
7
8
9
10
11
12
13
(Includeing CP201
(CH-146 board))
