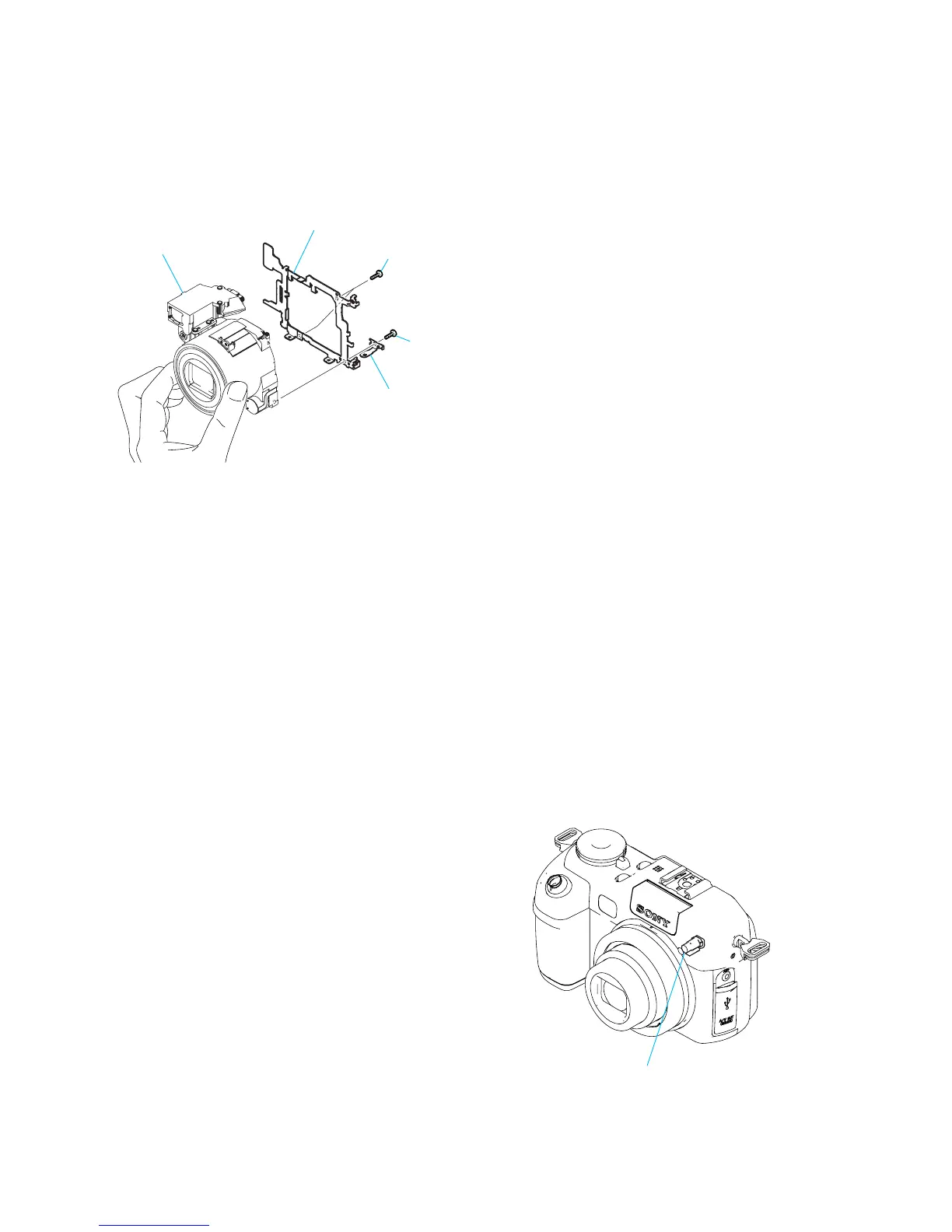

1-3. NOTE IN LENS FRAME
INSTALLATION
When tightening a screw, have both sides of the lens block assembly
so as not for the load to depend.
M1.7
M1.7
ST ground plate
Lens block assembly
Lens flame
1-4. NOTES ON HANDLING THE LASER DIODE
[LASER UNIT (D109) ON THE AF-008 FLEXIBLE BOARD]
The laser diode may suffer electrostatic breakdown because of the
potential difference generated by the charged electrostatic load, etc.
on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
Note: Adjustment is needed when laser unit (D109) on the AF-
008 flexible board is replaced.
Refer to “CAMERA adjustmen 5” and “CAMERA
adjustment 6” of SERVICE MANUAL, ADJ (9-876-762-
51.pdf).
Laser unit
(D109)
To Next Page
