5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
DSC-V3
Ref. No. Part No. Description
Ref. No. Part No. Description
201 3-057-082-21 SCREW (M1.7), P2
202 1-817-518-11 SHOE CONNECTOR
203 X-2023-599-1 CABINET (UPPER) ASSY
204 3-087-116-01 BRACKET (FRONT), STRAP
205 2-187-075-01 CUSHION, MICROPHONE
206 1-478-981-11 SWITCH BLOCK, CONTROL (SW51610)
(MODE SW)
207 3-914-343-21 TAPE (A)
208 3-080-222-11 SCREW (M1.7), TAPPING, P2
209 2-187-074-01 FRAME, SHOE
210 3-057-082-41 SCREW (M1.7), P2
211 X-2023-603-1 COVER ASSY, ST
0 212 A-1077-523-A FL-147 BOARD, COMPLETE
0 213 1-477-895-21 FLASH UNIT
214 2-187-077-01 COVER, HARNESS
215 2-187-076-01 BLIND, ST
216 A-1077-530-A PL-001 FLEXIBLE BOARD, COMPLETE
217 2-187-099-01 PLATE, FIXED
218 3-078-890-21 SCREW, TAPPING
219 1-963-221-21 HARNESS (HN-002) (BLACK)
220 1-963-221-11 HARNESS (HN-002) (WHITE)
0 221 A-1077-524-A ST-111 BOARD, COMPLETE
222 1-963-220-21 HARNESS (HN-001) (BLUE)
223 1-963-220-31 HARNESS (HN-001) (PINK)
224 1-963-220-11 HARNESS (HN-001) (WHITE)
225 X-2023-602-1 CASE ASSY, ST
226 1-454-674-51 SOLENOID, PLUNGER
227 2-546-937-01 SHEET, ST ELECTROSTATIC
0 C205 1-100-542-21 CAP, ELECT 135uF 315V (Note)
MIC901 1-542-312-11 MICROPHONE

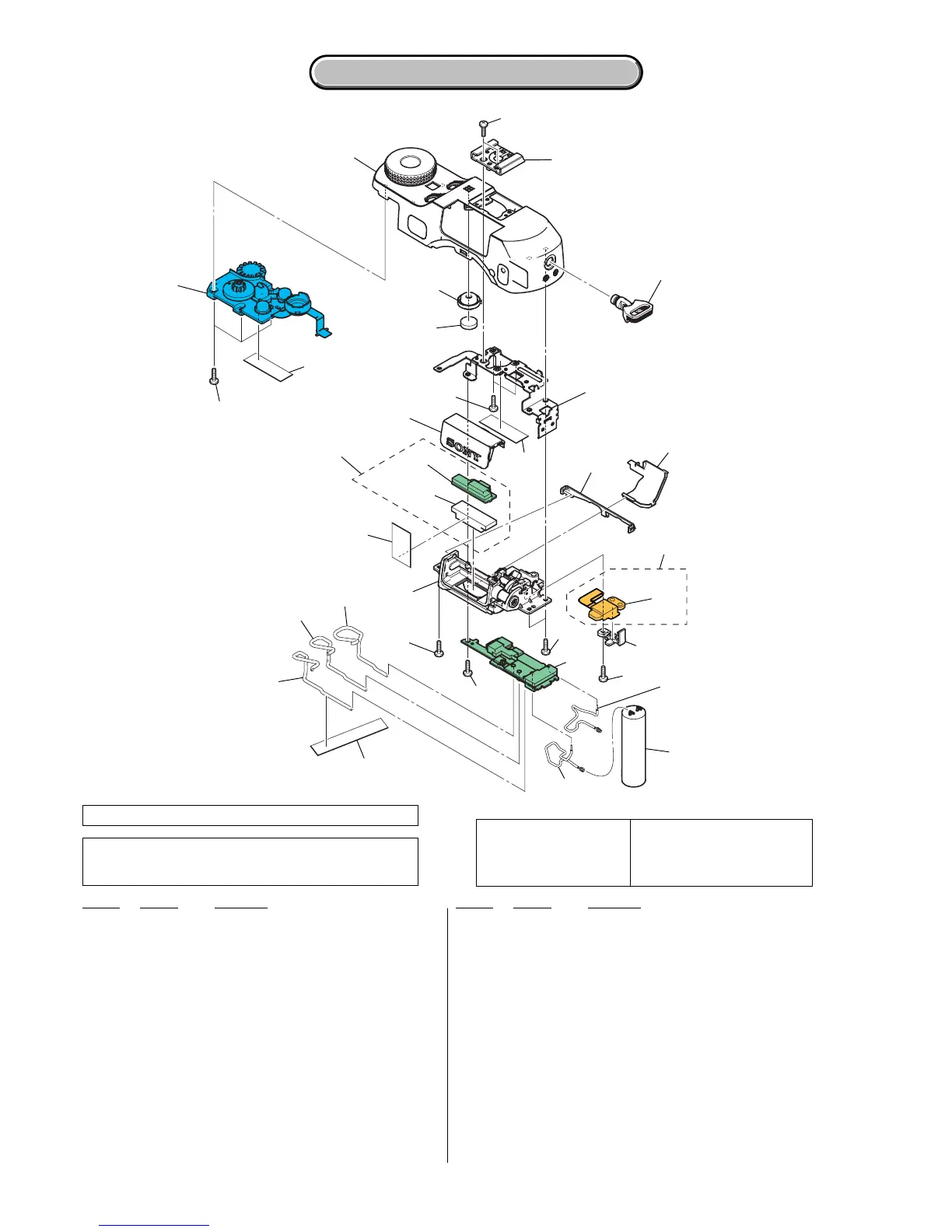

5-1-5. CABINET (UPPER) BLOCK
ns: not supplied
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
C205 (Note 1
)
MIC901
ns
201
201
201
202
203
204
205
206
207
207
207
208
208
209
210
211
212
225
213
214
215
226
216
217
218
219
(Note 2)
220
(Note 2)
221
224
(Note 2)
222
(Note 2)
223
(Note 2)
227
(Note 1) C205 is not included in ST-111 complete board.
(Note 2) Be sure to read “2-3. THE METHOD OF ATTACHMENT
OF HARNESSES” (page 2-7) when removing the har-
ness.
