Sony DSC-W830 - Exploded Views; Overall Section

DSC-W830
1-2

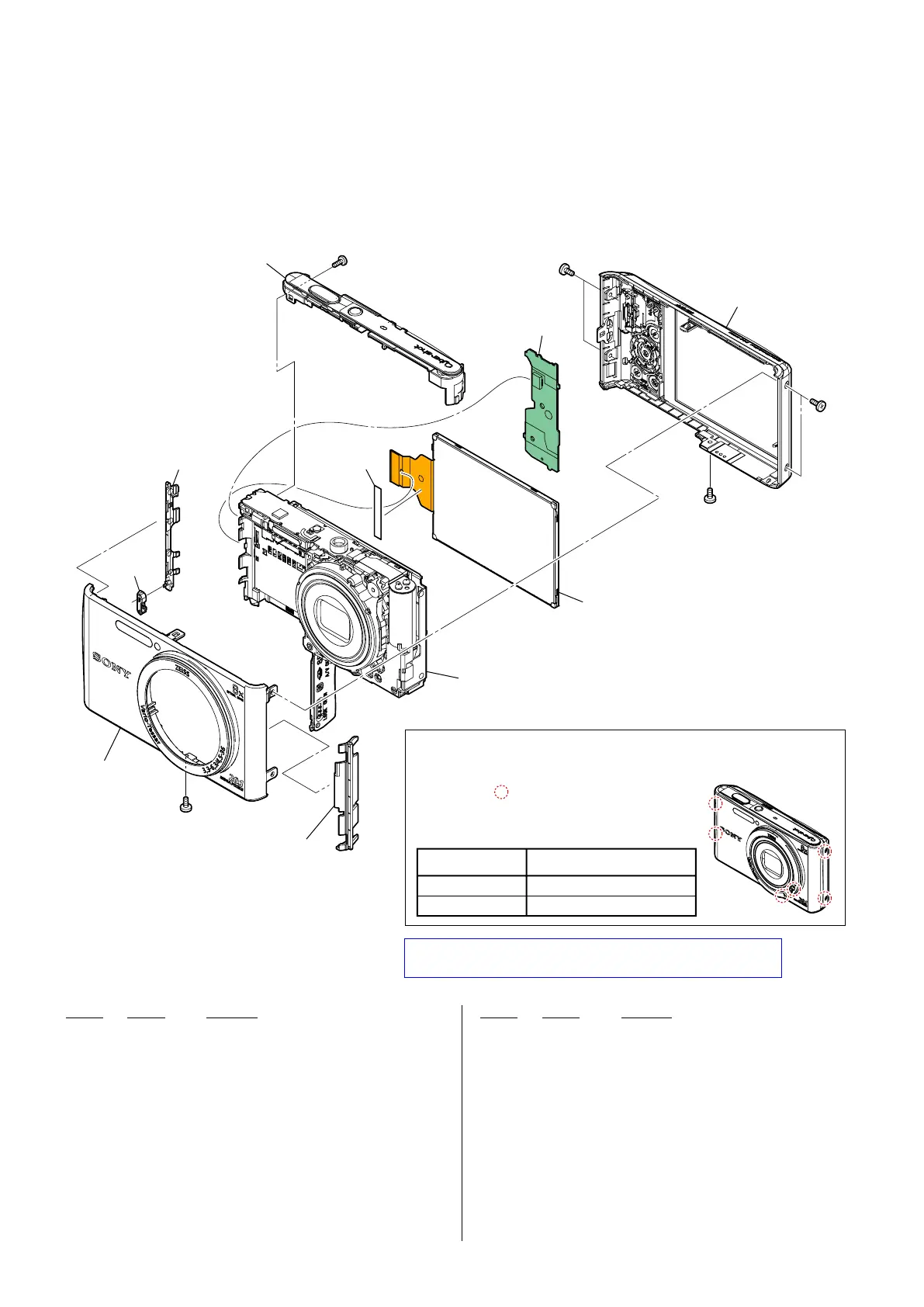

1-1. EXPLODED VIEWS
1-1-1. Overall Section
Ref. No. Part No. Description
Ref. No. Part No. Description
1 X-2589-217-1 CABINET (FRONT) ASSY (820C) (SILVER)
1 X-2589-218-1 CABINET (FRONT) ASSY (820D) (BLACK)
1 X-2589-219-1 CABINET (FRONT) ASSY (820E) (PINK)
1 X-2589-220-1 CABINET (FRONT) ASSY (820F) (VIOLET)
2 4-445-102-01 CABINET (R (520)), SIDE (PINK, SILVER, VIOLET)
2 4-445-102-11 CABINET (R (520)), SIDE (BLACK)
3 4-445-104-11 LID (520), DC (BLACK)
3 4-445-104-51 LID (520), DC (SILVER)
3 4-445-104-61 LID (520), DC (PINK)
3 4-445-104-71 LID (520), DC (VIOLET)
4 4-445-103-01 CABINET (L (520)), SIDE (PINK, SILVER, VIOLET)
4 4-445-103-11 CABINET (L (520)), SIDE (BLACK)
5 4-445-658-01 INSULATING SHEET (520), LCD
6 X-2589-221-1 CABINET (UPPER) ASSY (820C)
7 A-1903-143-A SW-1002 BOARD, COMPLETE
8 X-2589-222-1 CABINET (REAR) ASSY (820C) (SILVER) (Note 2)
8 X-2589-223-1 CABINET (REAR) ASSY (820D) (BLACK) (Note 2)
8 X-2589-224-1 CABINET (REAR) ASSY (820E) (PINK) (Note 2)
8 X-2589-225-1 CABINET (REAR) ASSY (820F) (VIOLET) (Note 2)
LCD901 1-811-268-21 LCD MODULE
#212 4-270-114-01 SCREW (M1.4), NEW TRU-STAR, P2 (Note 1)
#287 4-188-736-21 SCREW (TP1.4), P2
#293 4-463-141-01 NEW TORASUTA M1.4 ECOLOGY (Note 1)
#212 (Silver)
PINK/SILVER/VIOLET
#293 (Black)
BLACK
Cabinet's Color
Note1
THE COMBINATION OF CABINET’S
COLOR AND SCREW
The screw pointed is different according to
the cabinet's color.
For the combination of cabinet's color and screw,
please refer to Table 1-1.
Screw's Ref. No.
(Parts Color.)
Table 1-1
Main Section
(See page 1-3)
1
6
5
7
4
3
8
2
#212
#293
(Note 1)
#287
#293
#212
(Note 1)
LCD901
#293
#212
(Note 1)
(Note 2)
#293
#212
(Note 1)
Note 2: Refer to “4-3-3. Complementary Information”.
