DSC-W830
1-3

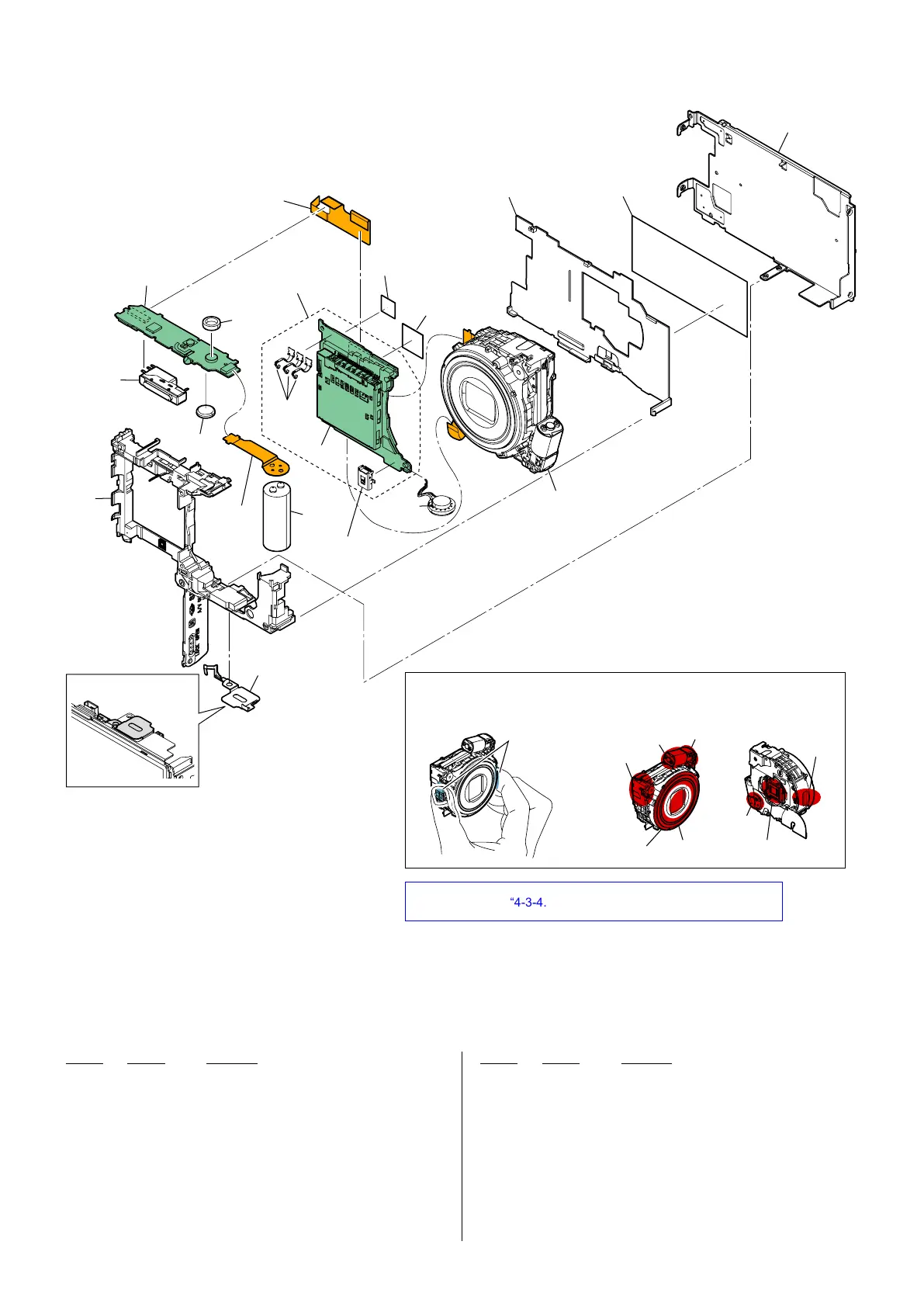

1-1-2. Main Section
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
51 4-445-105-01 SHEET METAL (520), SP
52 X-2585-932-2 HOLDER ASSY (520C), BT (SILVER)
52 X-2585-933-2 HOLDER ASSY (520D), BT (BLACK)
52 X-2589-276-1 HOLDER ASSY (820E), BT (PINK)
52 X-2589-277-1 HOLDER ASSY (820F), BT (VIOLET)
53 1-489-357-11 FLASH UNIT
54 A-2031-066-A RL-1003 BOARD, COMPLETE
55 4-412-051-01 CUSHION (100), MICROPHONE
56 1-887-340-11 MA-1004 FLEXIBLE BOARD
57 A-2031-808-A SY-1035 BOARD, COMPLETE (SERVICE)
58 4-469-116-01 SHEET (K), ELECTROSTATIC
59 4-533-847-01 SHEET (L), ELECTROSTATIC
60 1-887-073-13 MM-1002 FLEXIBLE BOARD
61 4-445-101-01 SPACER (520), MF
BH1701 1-780-936-11 TERMINAL BOARD, BATTERY (Note 2)
BT901 1-756-710-12 LITHIUM RECHARGEABLE BATTERY
C901 1-118-489-11 CAP, ALUMINIUM ELECT 56uF 330V
CN1706 1-820-333-22 MULTI CONNECTOR (REC) 8P (Note 2)
SP901 1-858-343-71 LOUDSPEAKER (1.0CM) (Note 2)
SP Sheet Metal
BH1701
(Note 2)
ns
SY-1035
53
54
52
55
61
60
57
59
58
56
51
Lens Section
(See page 1-4)
(Note 1)
CN1706
(Note 2)
BT901
C901
SP901
(Note 2)
ns
ns
Ornamental Ring
Sensor
Note 1: PRECAUTIONS WHEN HOLDING THE LENS BLOCK
Hold the Lens Block at the
center of both sides.
Do not hold the following part.
Hold here.
Zoom Motor
*Very weak
Lens Barrier
*Very weak
Focus Lens
*Very weak
Optical Stepping Motor
*Very weak
Flexible
Board
Flexible
Board
Note 2: Refer to “4-3-4. Complementary Information”.
“4-3-3.
