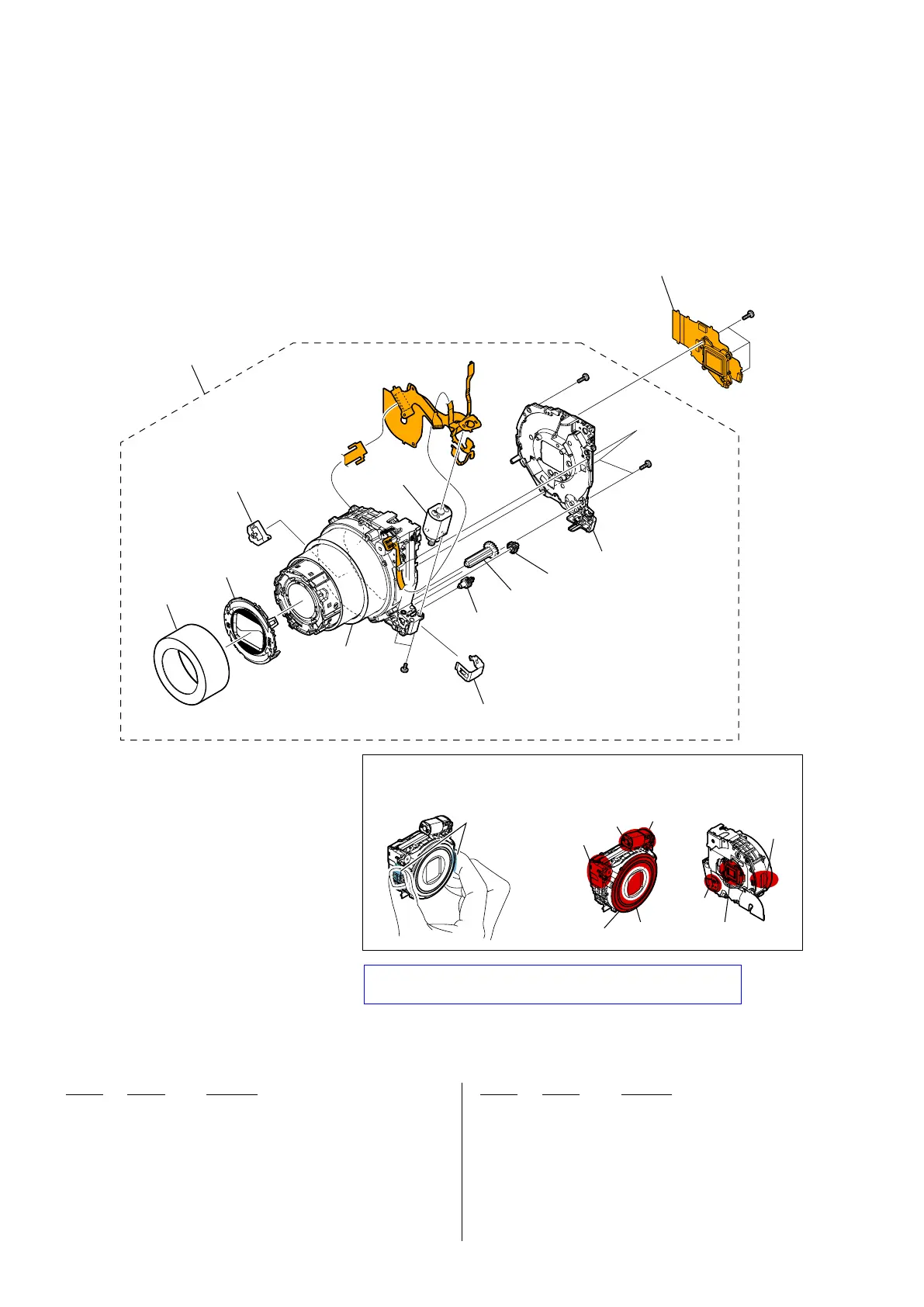

1-1-3. Lens Section
ns: not supplied
Ref. No. Part No. Description
Ref. No. Part No. Description
101 8-848-907-11 DEVICE, LENS LSV-1590A-BK (BLACK) (Note 1, 2)
101 8-848-907-41 DEVICE, LENS LSV-1590A-LS
(PINK, SILVER, VIOLET) (Note 1, 2)
102 4-429-501-41 RING A, ORNAMENTAL (T)
103 A-1897-949-A BARRIER ASSY(1590A-LS)
104 4-294-347-01 RETAINER, FG
105 A-1897-703-A GEAR WH LUBRICATED ASSY
106 A-1897-691-A GEAR B LUBRICATED ASSY
107 A-1897-692-A GEAR A LUBRICATED ASSY
108 A-1896-929-A DC MOTOR WORM ASSY
109 A-2031-067-A DOC-6005 FLEXIBLE BOARD, COMPLETE
(including IC001 (CCD imager))
#176 3-947-504-31 SCREW (M1.2)
#258 4-299-468-11 SCREW, TAPPING UB1.2 (CH)
(Note 1, 2)
109
(including IC001 (CCD imager))
101
103
102
107
108
106
105
104
#258
#258
#176
#258
ns
ns
ns
Ornamental Ring
Sensor
Note 1: PRECAUTIONS WHEN HOLDING THE LENS BLOCK
Hold the Lens Block at the
center of both sides.
Do not hold the following part.
Hold here.
Zoom Motor
*Very weak
Lens Barrier
*Very weak
Focus Lens
*Very weak
Optical Stepping Motor
*Very weak
Flexible
Board
Flexible
Board
Note 2: Refer to “4-4. LENS BLOCK” when you replace parts of
Lens Block.
