Sony DSLR-A100 Service Manual

2-22
DSLR-A100_L2

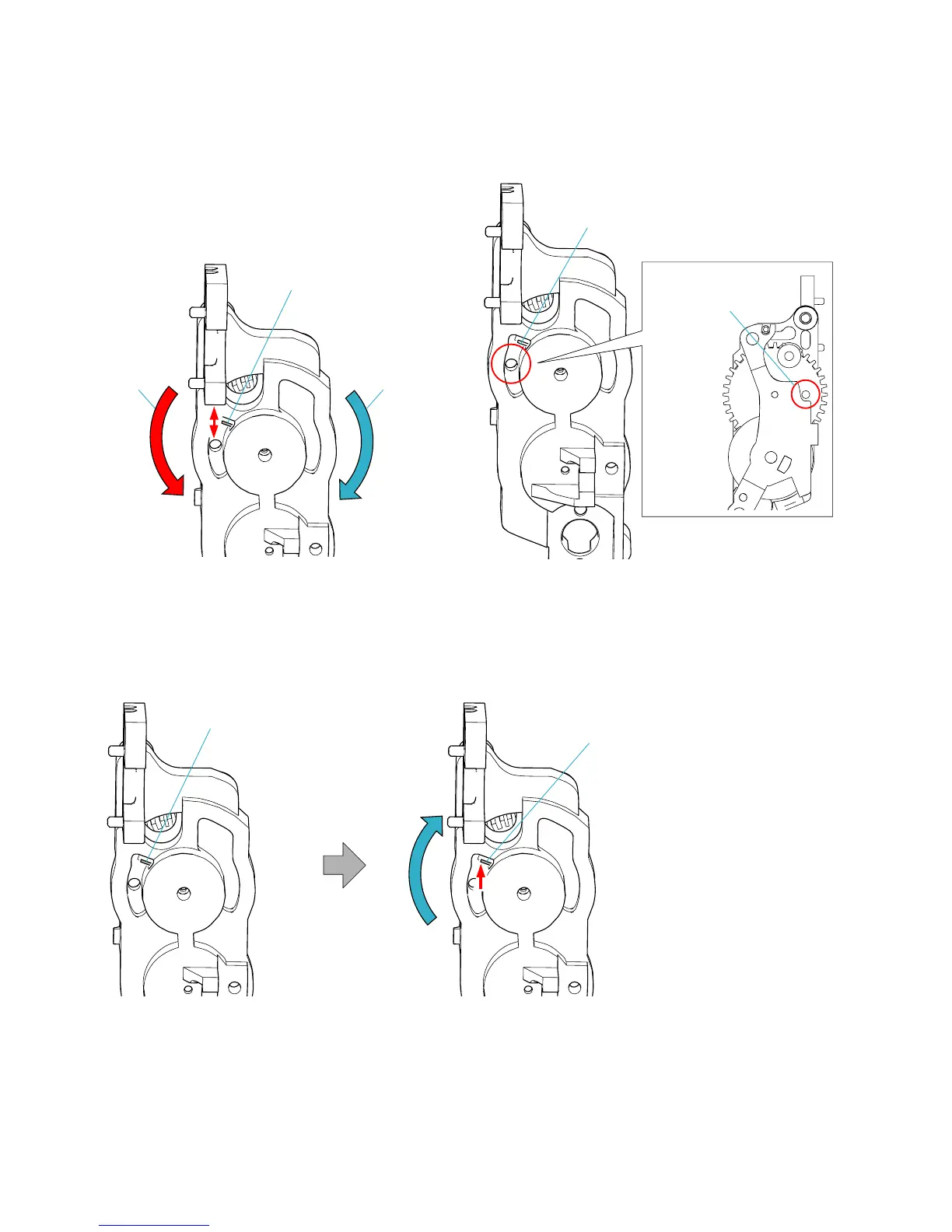

Fig. 13-1
In a free state, the edge of this spring
will move up and down about 1 mm if
the gear is moved a little.
Gear rotating
direction to make
the unit free
Gear rotating
direction to set
the charge position
Fig. 13-3
Note: The spring is deformed and cannot
be used if the gear is rotated too
much from a free state.
If the edge of spring is located downward,
rotate the gear in the arrow direction to
search a free position.
* In a free position, the edge of spring is
located upward.
First, check the spring edge position.
Fig. 13-2
In a free state, a hole in the gear almost
coincides with a hole in the Aperture Unit.
As viewed from gear
(Hole in the gear)
2-1-13. APERTURE UNIT FREE POSITION SETTING
1. Set the Aperture Unit to a free position once, if the gear was rotated accidentally and the charge position is disordered, or if the charge position
was shifted during disassembly. (Fig. 13-1, 13-2, 13-3)
