1-5. NOTE FOR REPLACING FUSE ON THE AM-001 BOARD
The caution label for fuse replacing on the AM-001 board is put under the DD-268 board. When replacing the fuse, remove the DD-268 board
and refer to this label.
1-6. DEMAGNETIZATION METHOD
It is easy to receive the influence of the outside magnetism because the slant sensor switch (S624) has the magnet in the inside.
Horizontal and vertical cannot be detected when the influence of magnetism is received, and the display of the LCD panel doesn't change.
Therefore, it is necessary to degauss the screw in the vicinity of the switch.
S624

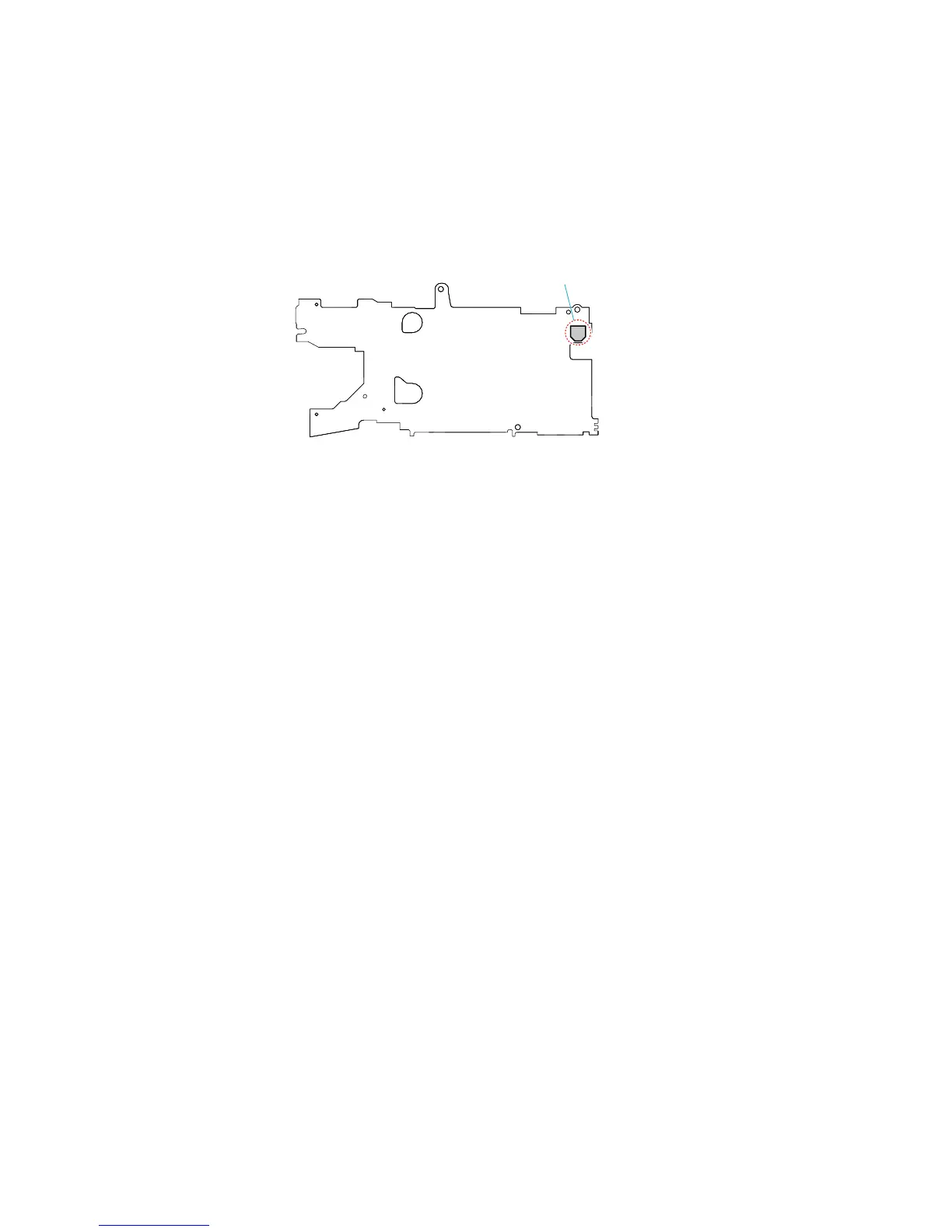

– AM-001 Board: Side B –
Note it because the user magnetizes set occasionally.
Refer to next page for the demagnetization method.
