Chapter 7 Connections and
Settings
Chapter 7 Connections and Settings 127
Connections for Cut Editing Using SDI Interface

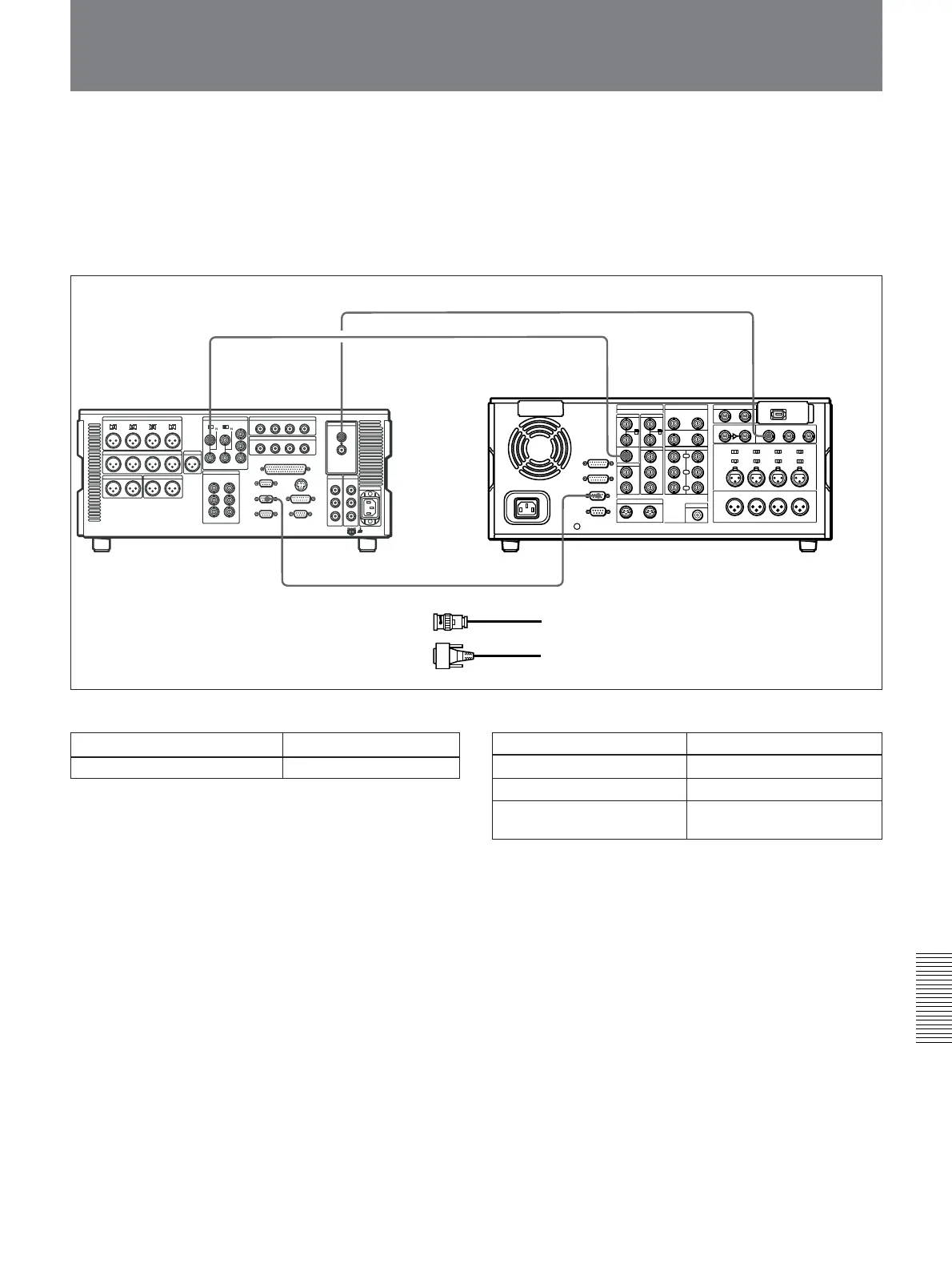

The following figure shows an example of connections
for a cut editing system using this unit together with an
MSW-2000/2000P VCR using an SDI connection.
In this example, the MSW-2000/2000P is used as the
recorder and this unit is used as the player.
MSW-2000/2000P (recorder) settings
MSW-2000/2000P
(recorder)
SDI OUTPUT
REF.VIDEO OUT
1
1
2
REMOTE-INREMOTE1-OUT(9P)
SDI INPUT
REF. VIDEO
INPUT
1 75 Ω coaxial cable (not supplied)
2 RCC-5G remote control cable (not supplied)
DSR-2000A/2000AP
(player)
DSR-2000A/2000AP (player) settings
Control Setting
REMOTE button Lit
9PIN button Lit
REF.VIDEO IN 75Ω ON
termination switch
Control Setting
REMOTE buttons Unlit
