Chapter 7 Connections and
Settings
Chapter 7 Connections and Settings 131

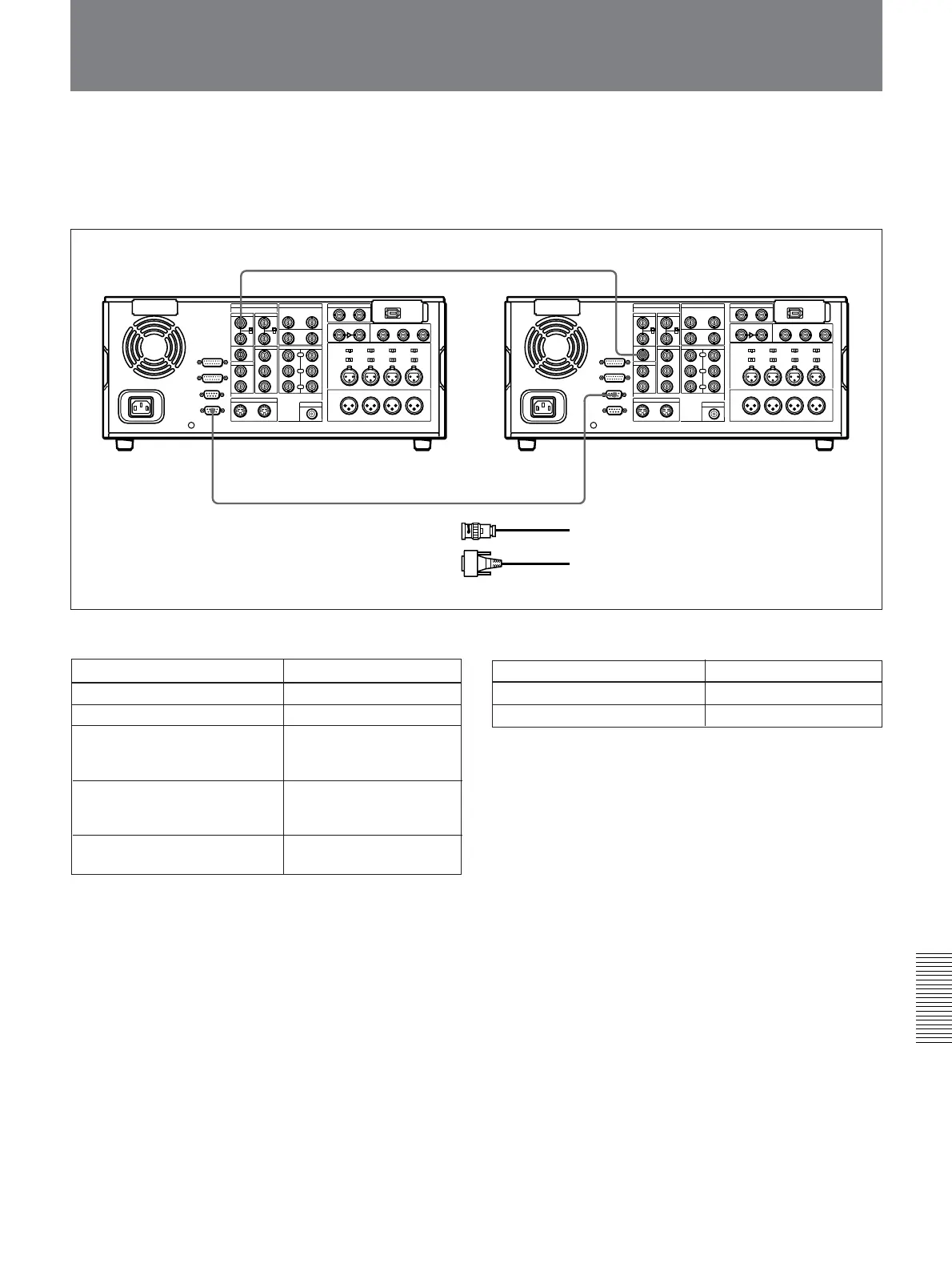

Connections for Two-Unit Synchronous Playback
The following shows connections for synchronous
playback using two DSR-2000A/2000AP units.
In the following, the controlling unit is referred to as
the recorder and the controlled unit as the player.
For information about how to carry out two-unit
synchronous playback, see the section “Synchronous
Playback” on page 59.
REF.VIDEO OUT
REMOTE-IN
REMOTE-OUT
REF.VIDEO IN
1
2
DSR-2000A/2000AP (player) settings
Control Setting
REMOTE button Lit
9PIN button Lit
DSR-2000A/2000AP (recorder) settings
Control Setting
REMOTE button Unlit
Setup menu item 004 ON (Synchronize.)
OFF (Do not
synchronize.)
Setup menu item 305
(When synchronizing,
synchronization accuracy)
ACCUR (±0 frame)
ROUGH (±1 frame)
REF. VIDEO IN 75 Ω
termination switch
ON
DSR-2000A/2000AP (recorder)
DSR-2000A/2000AP (player)
1 75 Ω coaxial cable (not supplied)
2 RCC-5G 9-pin remote control cable
(not supplied)
9PIN button Lit
To Next Page
