DSR-250/250P
4-111 4-112
CH1/CH2 MIC AMP
XL-003

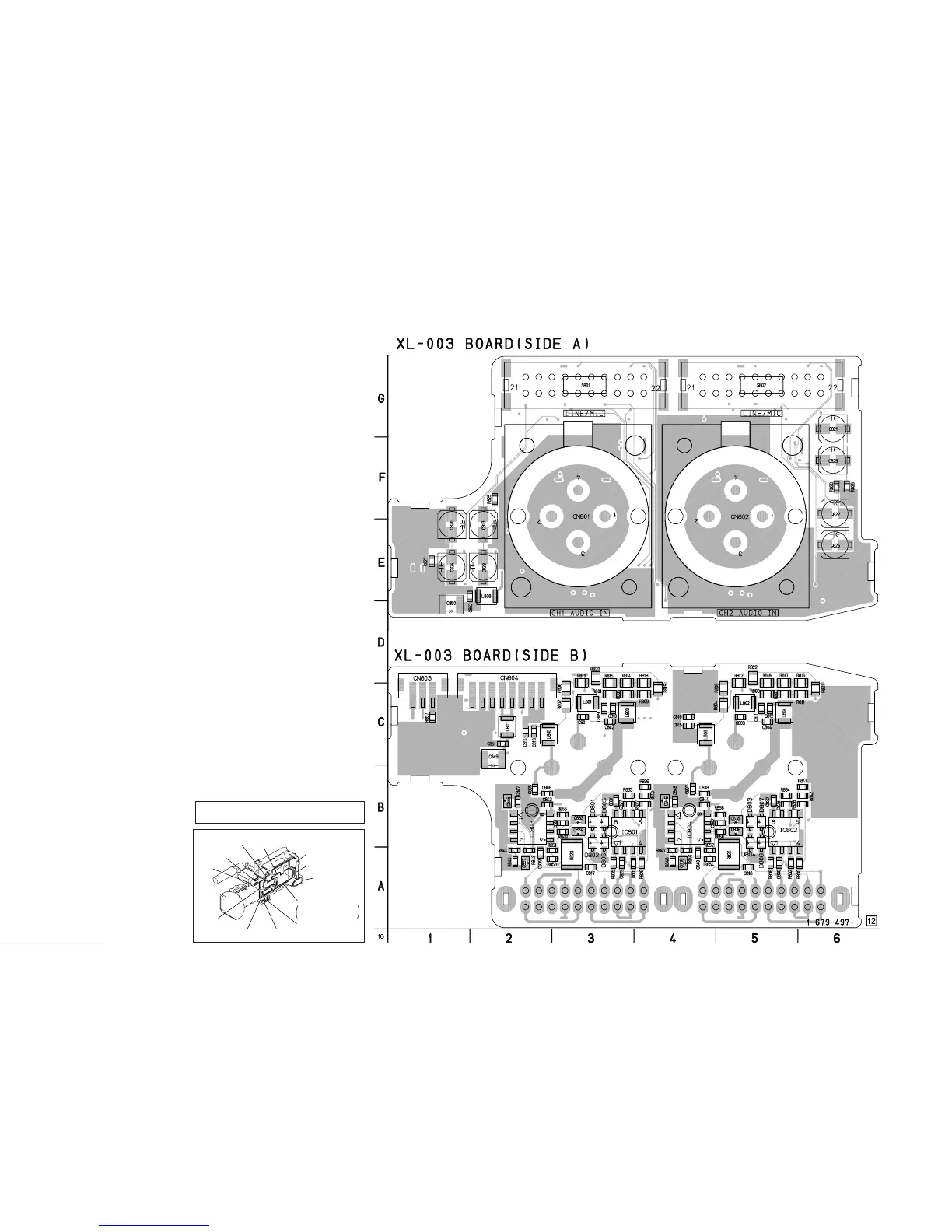

XL-003 (CH1/CH2 MIC AMP) PRINTED WIRING BOARD
— Ref. No. XL-003 Board; 1,000 Series —
For printed wiring board
• Refer to page 4-131 for parts location.
• XL-003 board consists of multiple layers. However, only
the sides (layers) A and B are shown.
There are few cases that the part printed on this
diagram isn’t mounted in this model.
DD-146
(DC-DC CONVERTER)
IN-057
(DC IN)
MS-058
(MS CONNECTOR)
VI-156
CAMERA, DV/MS INTERFACE,
SERVO, REC/PB HEAD AMP,
AUDIO, DD CONV.
KP-011
(MENU SELECT)
AE-023
(USER FUNCTION)
SB-036
(USER FUNCTION)
ME-019
(MIC AMP, EVF OUT)
SW-343
(USER FUNCTION)
PM-040
(MODE SELECT)
LED (A)
LED (B)
To Next Page
