Sony DSR-250 Service Manual

2-4

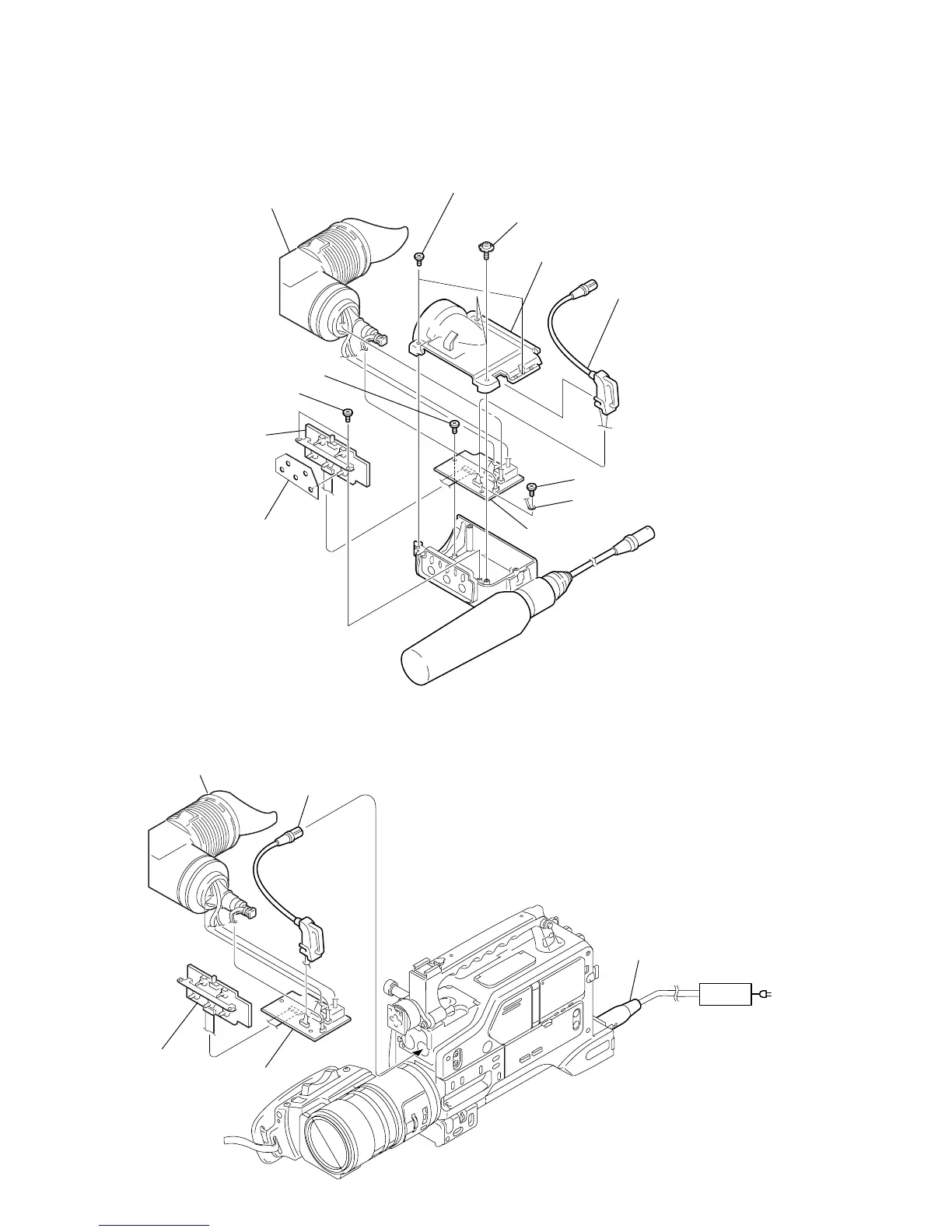

2-3. VF SECTION (MAIN, SUB BOARDS)
3 Bottom case
7 Lug terminal
4 VF cable
9 MAIN board
0 Two screws
(M2.6 × 4)
qs SUB board
SUB board
qa Parting plate
VF cable
MAIN board
VF assembly
DXF-801 (DSR-250),
DXF-801CE (DSR-250P)
5 VF assembly
DXF-801 (DSR-250),
DXF-801CE (DSR-250P)
1 Two screws
(M3 × 6)
8 Screw
(M2.6 × 4)
6 Screw (M2.6 × 4)
2 Two screws
(M3 × 8)
[VF SECTION MAIN, SUB BOARDS SERVICE POSITION]
Regulated power supply
AC I
N
12V
How to make the DC cable
(See page 2-1)
Refer to the separate DXF-801/810CE Service Manual (attach to the end of this manual) [ Section 1. Service Information ].
