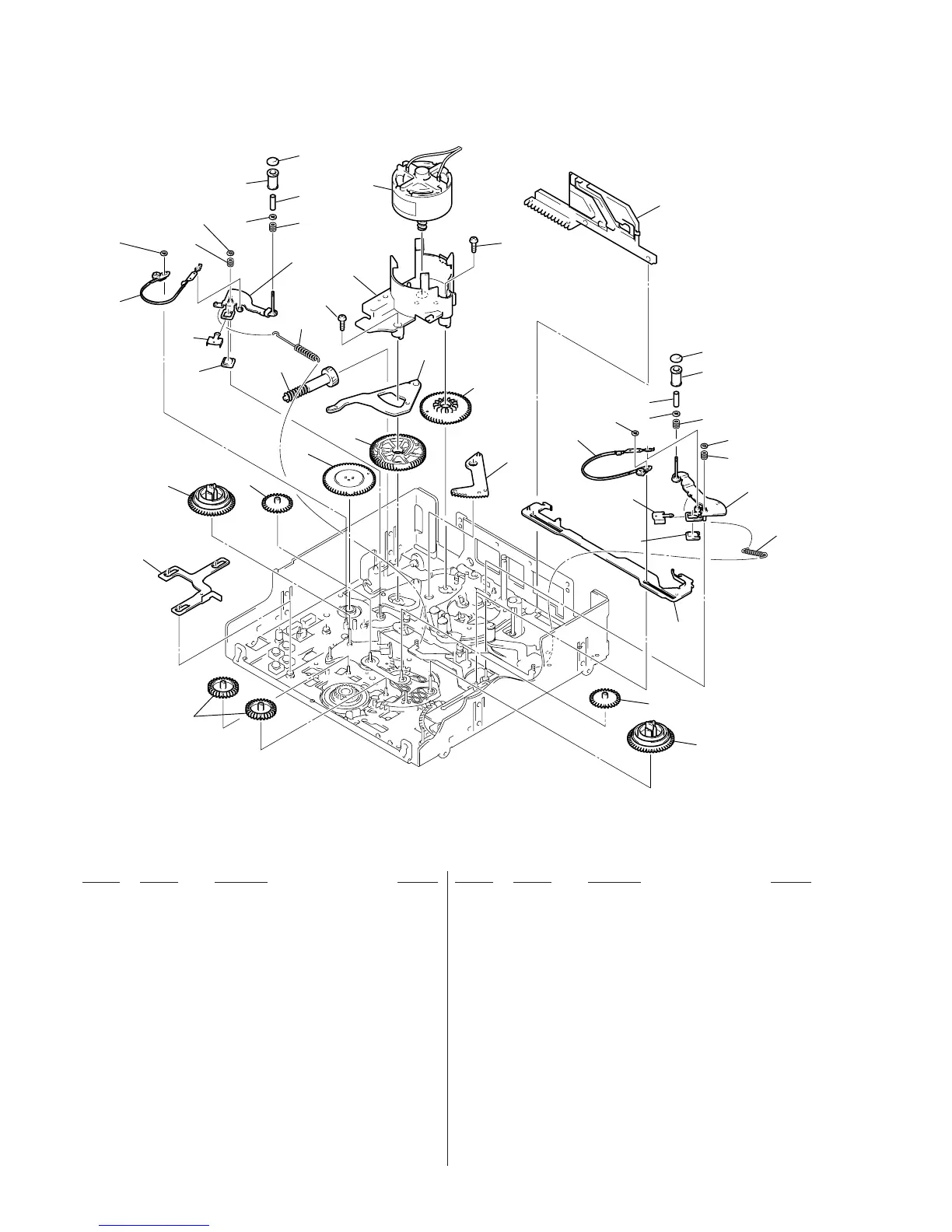

6-1-12. GEAR, ARM SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
751 X-3949-923-1 GEAR (A) ASSY, IDLER
752 3-057-311-01 GEAR (B), IDLER
753 A-7094-599-A REEL (LARGE) BLOCK ASSY
754 3-057-267-01 GEAR, ENCODER
755 3-057-294-01 GEAR, MAIN CAM
756 3-973-140-01 GEAR, SUB CAM
* 757 3-057-302-01 SLIDER, SBR
* 758 3-057-314-01 SLIDER, SUB
759 X-3950-816-1 ARM ASSY, LOADING
760 3-057-221-01 SLIDER, PINCH
* 761 3-057-252-01 ARM, SUB SLIDER
762 3-973-159-01 GEAR, JOINT
763 3-057-222-02 HOLDER, MOTOR
765 3-973-266-01 SCREW (M2X2.2 (MEK)), HEAD
766 X-3949-918-1 ARM ASSY, TG2
767 X-3949-919-1 ARM ASSY, TG7
768 3-057-295-01 SPRING, EXTENSION (TG2)
769 3-057-296-02 SPRING, EXTENSION (TG7)
770 X-3949-921-1 BAND (TG7) ASSY
771 X-3949-920-1 BAND (TG2) ASSY
772 3-057-281-01 MAGNET, ET
773 3-057-336-01 HOLDER, MAGNET
774 3-057-344-01 SPRING, COMPRESSION (TG ARM)
775 3-726-829-01 WASHER, STOPPER
776 3-057-232-01 SPRING, COMPRESSION (TG)
777 3-057-238-01 RING, TG
778 3-057-237-01 SLEEVE, TG
779 3-057-235-01 ROLLER, TG
780 3-057-234-01 FLANGE, TG UPPER
781 3-057-337-01 ROLLER, TG7
782 3-063-887-01 FLANGE (2), TG UPPER
M902 X-3946-702-1 MOTOR ASSY, CAM
751
752
758
752
753
757
753
M902
756
754
755
762
761
765
759
760
765
763
775
780
781
776
774
775
767
772
769
773
770
777
778
771
775
774
773
775
766
768
772
782
778
776
777
779
