Sony DVP-NS305 Service Manual

DVP-NS305/NS310/NS315/NS405/NS410/NS415
4-35 4-36
AV AMP
ER-14

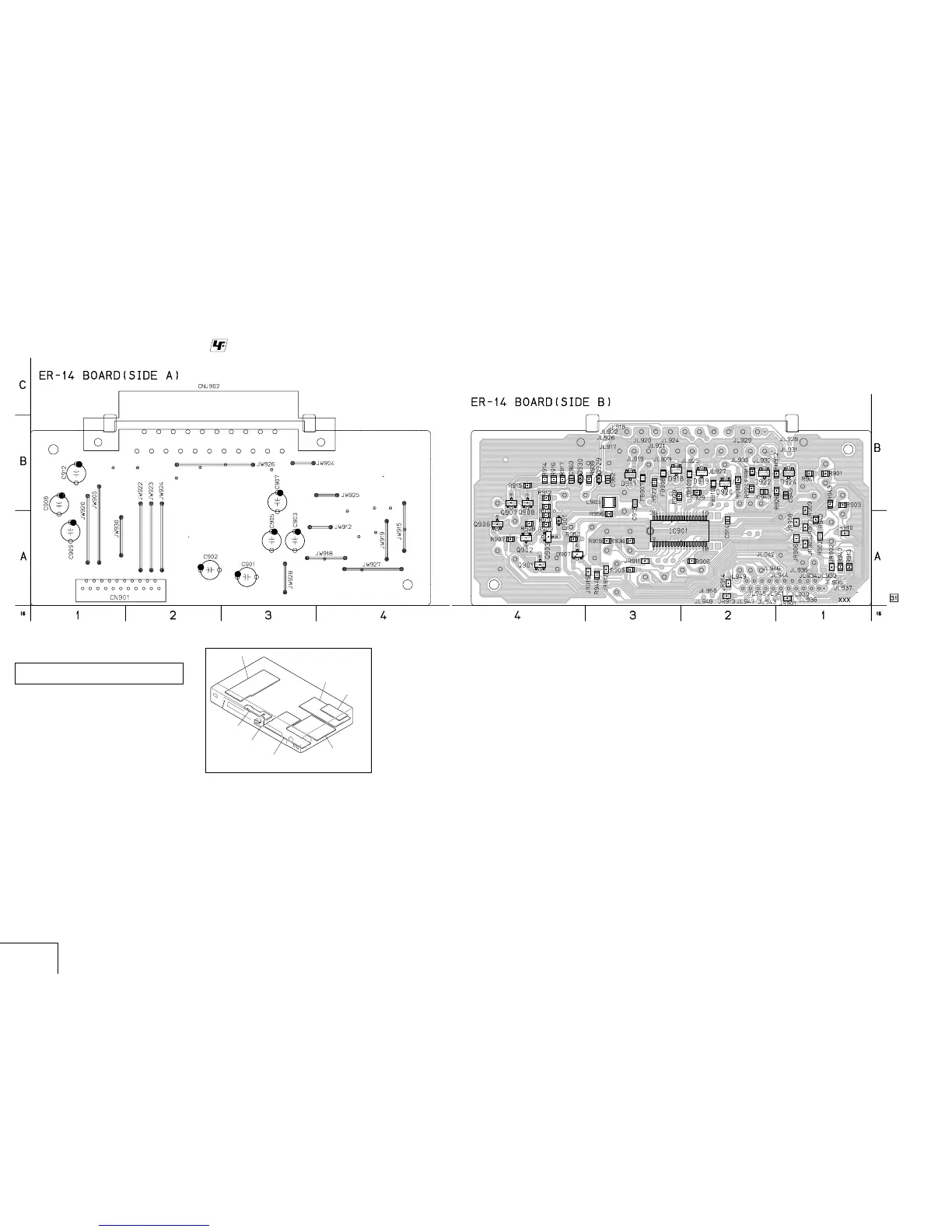

ER-14 (AV AMP) PRINTED WIRING BOARD
For printed wiring board
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
• : Uses unleaded solder.
MB-103 board
(DVD/CD RF AMP, SERVO,
MOTOR DRIVE, AD DECODER,
SYSTEM CONTROL,
AUDIO ADC, PLL)
AV-61 board
(AUDIO/VIDEO OUT)
IF-89 board
(IF COM)
FL-126 board
(LED)
MS-81 board
(LOADING MOTOR)
ER-14 board
(AV AMP)
Power block
