64
DVP-S9

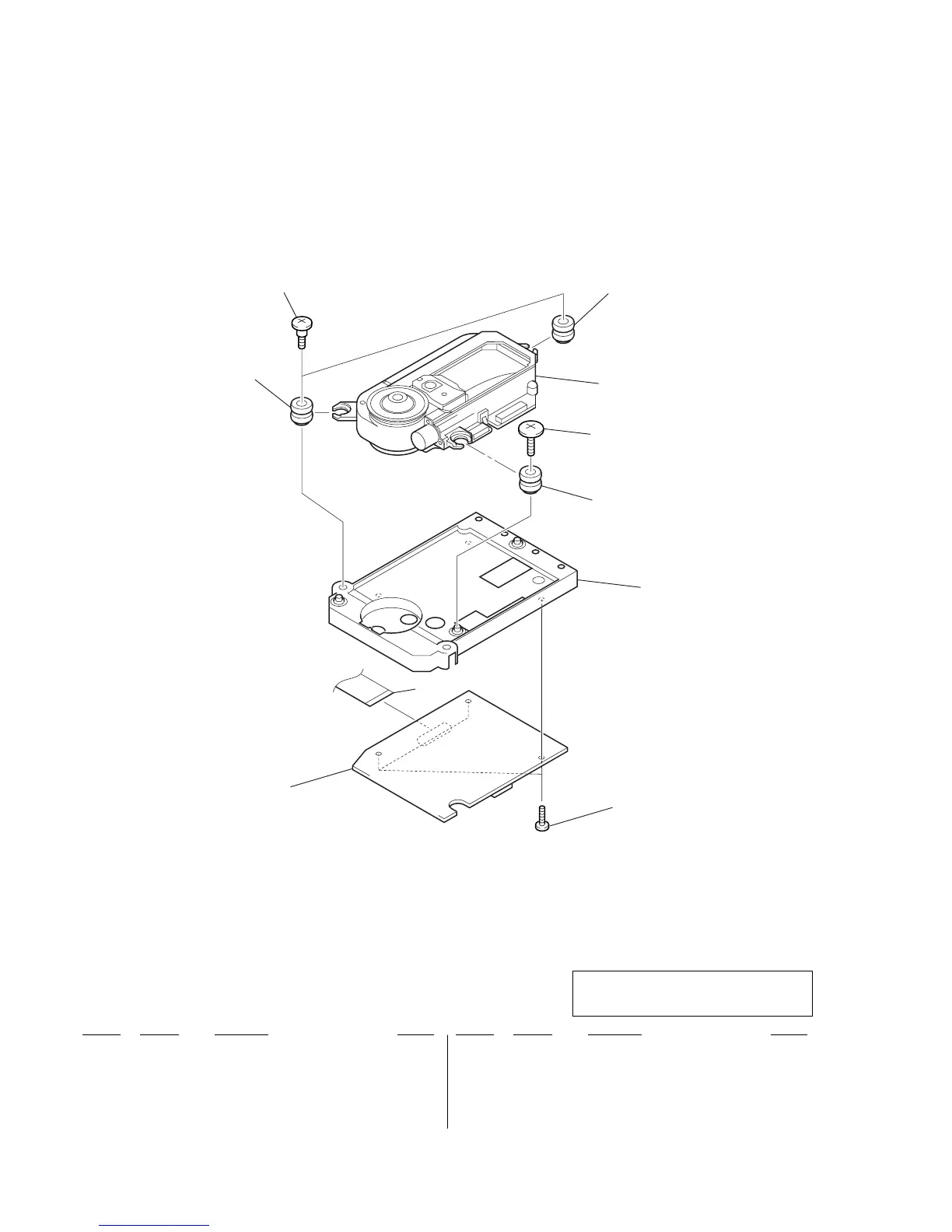

7-8. OPTICAL PICK-UP SECTION
• Refer to servicing notes (page 4) for discrimination of TYPE A/B.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
701 A-4727-278-A RF BOARD, COMPLETE
703 1-823-610-11 WIRE (FLAT TYPE) (26 CORE)
704 3-053-847-01 INSULATOR
705 4-981-923-01 SCREW (M), STEP
0 706 8-820-144-06 OPTICAL PICK-UP KHM-240AAA/J1RP
(TYPE A)
0 706 A-6062-709-A SERVICE ASSY, KHM-270AAA (TYPE B)
707 4-236-450-01 SCREW (L), STEP
708 4-236-467-01 BASE (DVD), FITTING
709 4-951-620-01 SCREW (2.6X8), BVTP
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
704
704
707
708
706
704
705
709
701
703
Ver 1.5
