Sony DVP-S9 - MB Board; VIDEO Board

DVP-S9
8

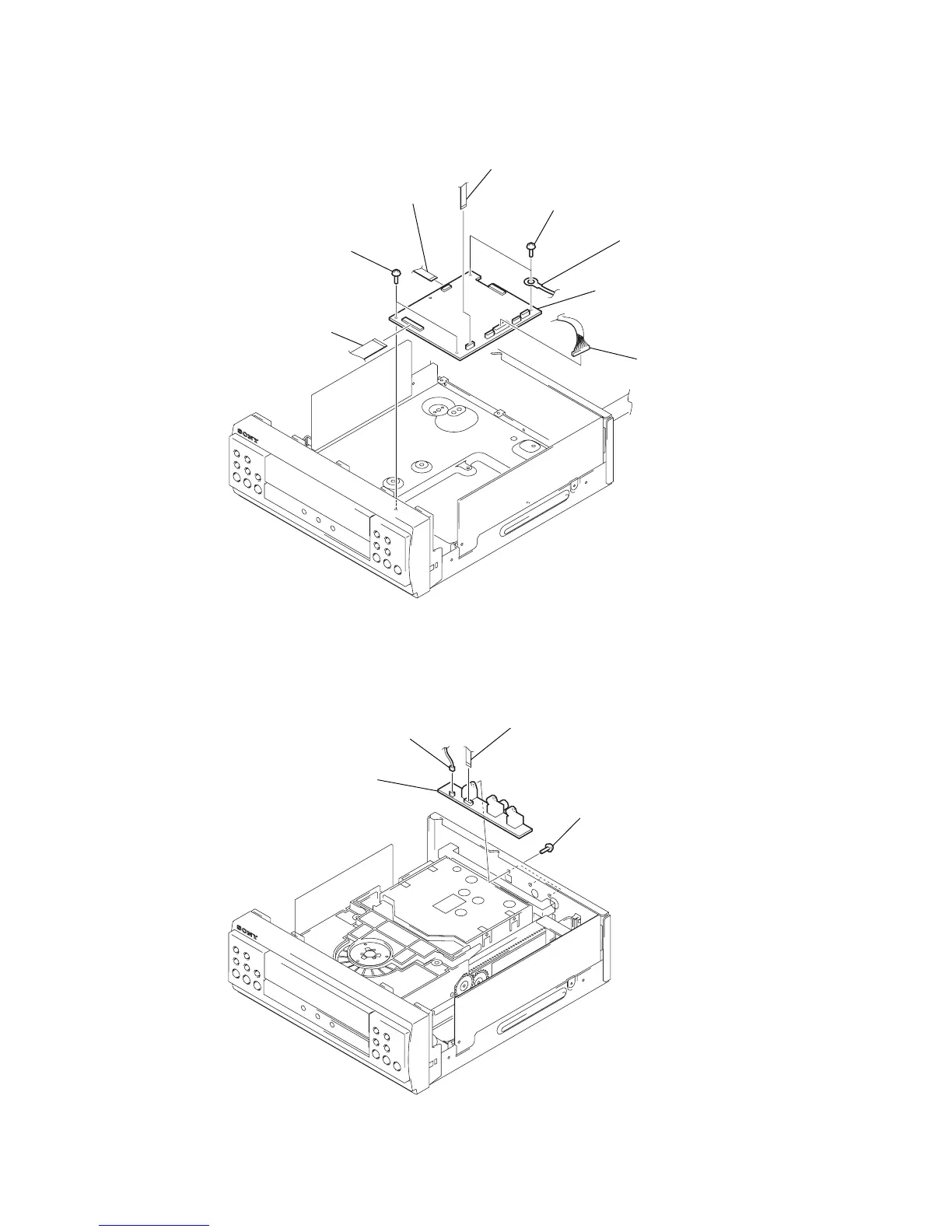

3-5. VIDEO BOARD
3-4. MB BOARD
3 connecto
r
(CN008)
6 MB board
5 lug
4 two screws
(BV)
1 wire (flat type) (8 core)
(CN011)
4 two screws
(BV)
2 wire (flat type) (25 core)
(CN010)
1 wire (flat type) (9 core)
(CN015)
3 three screws
(BVTP3
× 8)
1 wire (flat type) (8 core)
2 connector
(CN202)
4 VIDEO board
